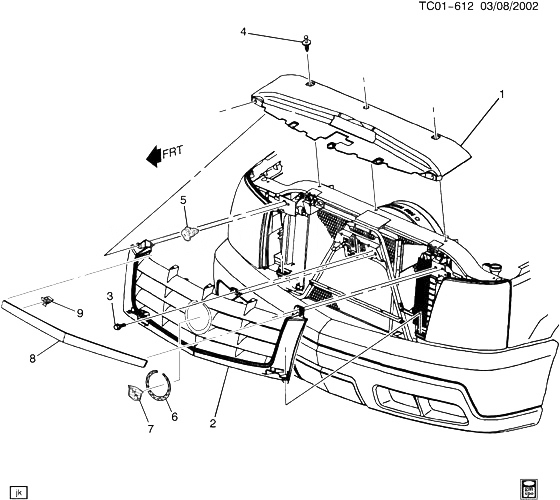

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10388803 |
BAFFLE, RAD AIR UPR |
CK1 (06-36) (Z75) |
2003-2005 |
01 |
| 002 |
15129949 |
GRILLE, RAD (INCLS 5-7) (BLUE) (INCLS EMBLEM) |
CK1 (06-36) (TL1, Y91, Z75, 26U) (EXC ULT) |
2004-2006 |
01 |
| 002 |
15162129 |
GRILLE, RAD (INCLS 5-7) (BLACK) (INCLS EMBLEM) |
CK1 (06-36) (TL1, Y91, Z75, 41U) |
2002-2005 |
01 |
| 002 |
15162132 |
GRILLE, RAD (INCLS 5-7) (WHITE) (INCLS EMBLEM) |
CK1 (06-36) (TL1, Y91, Z75, 98U) (EXC ULT) |
2005-2006 |
01 |
| 002 |
15195461 |
GRILLE, RAD (INCLS 5-7) (SILVER) (INCLS EMBLEM) |
CK1 (06-36) (TL1, Y91, Z75, 59U) (EXC ULT) |
2005-2006 |
01 |
| 002 |
15195462 |
GRILLE, RAD (INCLS 5-7) (RED) (INCLS EMBLEM) |
CK1 (06-36) (TL1, Y91, Z75, 63U) (EXC ULT) |
2005-2006 |
01 |
| 003 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (RAD GRL)
|
2002-2006 |
01 |
|
| 004 |
11561878 |
RETAINER, RAD AIR UPR BFL (PUSH IN) (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940)
| CK1, 2, 3 |
2002-2006 |
07 |
|
| 005 |
15078238 |
RETAINER, RAD GRL (PART OF 2) (BLACK) (25X15.5) (ALSO REPLACES SILVER)
| CK1, 2, 3 |
2003-2006 |
02 |
|
| 006 |
88944248 |
EMBLEM, RAD GRL (PART OF 2) (CHROME) (WREATH) |
CK1 (06-36) (TL1, Y91, Z75) |
2002-2006 |
01 |
| 007 |
88944263 |
EMBLEM, RAD GRL (PART OF 2) (CHROME) (CREST) |
CK1 (06-36) (TL1, Y91, Z75) |
2002-2006 |
01 |
| 008 |
15136011 |
MOLDING, КАПОТ FRT (INCLS 9) |
CK1 (06-36) (Y91, Z75) |
2002-2006 |
01 |
| 009 |
11609549 |
CLIP, TRIM, 13X12X14.4, 0.63 ПРУЖИНА STL, GM6173 BLACKI (PART OF 8) |
|
2002-2006 |
07 |
