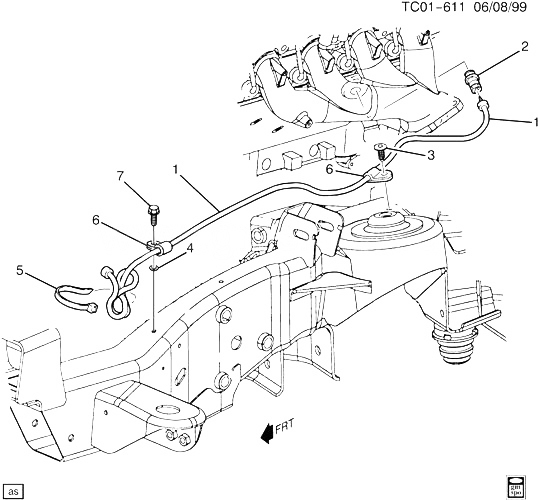

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10369173 |
CORD, ENG COOL HTR (INCLS 5, 6) (3-PIN) (IDENT BY OEM P/N 10369173 ON LABEL USED W/HTR 12560179.FOR 2ND DES SEE 15247753) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, K05) (1ST DES) |
2005-2005 |
01 |
| 001 |
15811533 |
CORD, ENG COOL HTR (INCLS 5, 6) (2-PIN) (ID BY OEM P/N 15211478 ON LABEL USED W/HTR 12586687.FOR 1ST DES SEE 10369173) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, K05) (2ND DES) |
2005-2005 |
01 |
| 002 |
12560179 |
HEATER, ENG COOL (W/3-PIN AND BRASS COLORED2ND DES 12586687.)
| CK1, 2, 3 (L18, K05) (1ST DES) |
2005-2005 |
01 |
|
| 002 |
12560179 |
HEATER, ENG COOL (W/3-PIN AND BRASS COLORED2ND DES 12586687.)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, K05) (1ST DES) |
2005-2005 |
01 |
|
| 002 |
12586687 |
HEATER, ENG COOL (W/2-PIN AND SILVER COLORED 1ST DESIGN 12560179.) |
CK1, 2, 3 (L18, K05) (2ND DES) |
2005-2005 |
01 |
| 002 |
12586687 |
HEATER, ENG COOL (W/2-PIN AND SILVER COLORED 1ST DESIGN 12560179.) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, K05) (2ND DES) |
2005-2005 |
01 |
| 003 |
21075686 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (ENG COOL HTR CORD) |
|
1999-2007 |
01 |
| 004 |
11501869 |
WASHER, EXT TOOTHED LK, M8, 15 O.D., .85THK, STL, ZN (ENG COOL HTR CORD CLIP) (ACDelco #11501869) |
|
1999-2007 |
02 |
| 005 |
12355066 |
STRAP, PLASTIC ADJ TIE (215MM LG) (PART OF 1) (8.965) (ACDelco #16TS825)
|
1999-2007 |
01 |
|
| 006 |
|
CLAMP, ENG COOL HTR CORD (PART OF 1) |
|
2005-2007 |
|
| 007 |
11508534 |
БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (ENG COOL HTR CORD CLIP)
|
1999-2007 |
01 |
|
