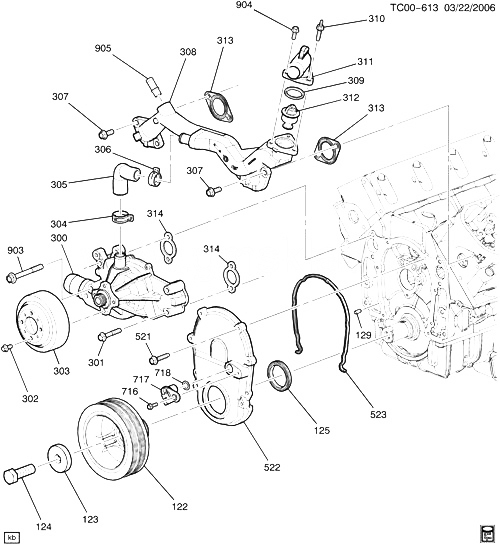

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 122 |
12552283 |
BALANCER, CR/SHF |
CK2, 3 (L18) |
2001-2007 |
01 |
| 123 |
23504011 |
WASHER, CR/SHF BALR |
CK2, 3 (L18) |
2001-2007 |
01 |
| 124 |
14022672 |
БОЛТ, CR/SHF BALR (M16 X 1.5) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 125 |
12580743 |
SEAL, CR/SHF FRT OIL (PART OF 522) (ACDelco #296-14) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 129 |
12554553 |
PIN, ENG FRT CVR LOC (1/4X5/8) (0.738) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 300 |
89017771 |
PUMP KIT, WAT (W/GSKT) (INCLS 314) (ACDelco #251-692) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 301 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (W/PMP)
|
2001-2007 |
03 |
|
| 302 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (FAN W/PMP PUL)
|
2001-2007 |
04 |
|
| 303 |
12550053 |
PULLEY, FAN W/PUMP (148.4MM) (CODE ADH) (HAS 1.8 OPENING IN CENTER OF HUB) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 304 |
11516230 |
CLAMP, ПРУЖИНА BAND, 35MM NOM (PART OF 305) |
|
2001-2007 |
01 |
| 305 |
12558969 |
HOSE, THERM BYPASS (INCLS 304, 306) (INCLS HOSE, CLAMPS) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 306 |
11516228 |
CLAMP-ПРУЖИНАBAND, 30MM NOM, 28MM MIN, 32.5 MAX, 15 WIDE, 6298M, GREEN (28MM) (PART OF 305) |
|
2001-2007 |
01 |
| 307 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (PART OF 308)
|
2001-2007 |
04 |
|
| 308 |
12578330 |
PIPE, ENG COOL C/OVR (INCLSPIPE, SEAL, GASKET, BOLTS, STUD, THERMOSTAT) (INCLS 307, 309-313, 900, 901, 905) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 309 |
24577118 |
SEAL, ENG COOL THERM (O RING) (W/O LIP, 48.25MM OD) (PART OF 308, 312) (ACDelco #24577118)
| CK2, 3 (L18) |
2001-2007 |
01 |
|
| 310 |
11517674 |
STUD, WAT OTLT (PART OF 308) |
|
2003-2007 |
01 |
| 311 |
12559861 |
OUTLET, WAT (3 HOLES ШЛАНГИ-OUTLET) (PART OF 308) (ACDelco #15-1816) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 312 |
12559575 |
THERMOSTAT, ENG COOL (INCLS 309) (PART OF 308) (195 DEG) (ACDelco #131-121) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 313 |
12571593 |
GASKET, ENG COOL C/OVR PIPE (PART OF 308) |
CK2, 3 (L18) |
2001-2007 |
02 |
| 314 |
12592020 |
GASKET, W/PMP (PART OF 300) (ACDelco #251-2038) |
CK2, 3 (L18) |
2001-2007 |
02 |
| 521 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (ENG FRT CVR)
|
2001-2007 |
08 |
|
| 522 |
12589846 |
COVER, ENG FRT (W/CR/SHF FRT OIL SEAL) (INCLSCOVER, SEAL, GASKET) (INCLS 125, 523) |
CK2, 3 (L18) |
2004-2007 |
01 |
| 523 |
12556370 |
GASKET, ENG FRT CVR (PART OF 522) |
CK2, 3 (L18) |
2001-2007 |
01 |
| 716 |
11519133 |
БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (CM/SHF POSN SEN) |
|
2001-2007 |
01 |
| 717 |
12591720 |
SENSOR, CM/SHF POSN (INCLS 718) (ACDelco #213-3826)
| CK2, 3 (L18) |
2004-2007 |
01 |
|
| 718 |
|
SEAL, CM/SHF POSN SEN (O RING) (PART OF 717) |
|
2001-2007 |
|
| 903 |
11516361 |
BOLT/SCREW, HFH, M10X1.5X95, 9.8, PZOR, 7114M, 22.3 FLG OD (W/PMP) |
|
2001-2007 |
01 |
| 904 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (PART OF 308) (ACDelco #11570082)
|
2001-2007 |
02 |
|
| 905 |
|
PIPE, HTR INL (PART OF 308) |
|
2001-2007 |
|
