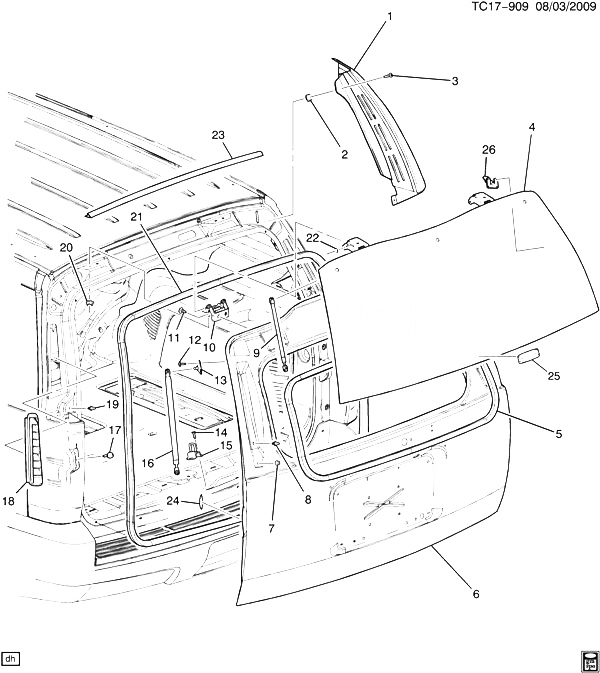

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25970600 |
APPLIQUE, Q/PNL UPR (PAINT TO MATCH) |
CK1, 2 (06) (Z75) |
2007-2013 |
01 |
| 001 |
25970601 |
APPLIQUE, Q/PNL UPR (PAINT TO MATCH) |
CK1, 2 (06) (Z75) |
2007-2013 |
01 |
| 002 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (Q/PNL UPR APLQ) |
|
2007-2013 |
04 |
| 003 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (Q/PNL UPR APLQ) |
|
2007-2013 |
04 |
| 004 |
25916023 |
WINDOW, L/GATE (INCLS 25, 26) |
CK1, 2 (06) (EXC AJ1) |
2007-2013 |
01 |
| 004 |
25916024 |
WINDOW, L/GATE (INCLS 25, 26) |
CK1, 2 (06) (AJ1, Z75) |
2009-2013 |
01 |
| 005 |
25949077 |
WEATHERSTRIP, L/GATE WDO |
CK1, 2 (06) (X88, Z75, Z88) |
2007-2013 |
01 |
| 006 |
25867975 |
GATE, LIFT |
CK1, 2 (06) (Z75) |
2009-2013 |
01 |
| 007 |
15038385 |
BUMPER, L/GATE WDO |
CK1, 2 (06) (Z75) |
2007-2013 |
02 |
| 008 |
11562471 |
STUD, L/GATE STRUT BALL (L/GATE SI) (8.015) |
CK1, 2 (06) (Z75) |
2007-2013 |
04 |
| 009 |
15161943 |
STRUT, L/GATE WDO |
CK1, 2 (06) |
2007-2013 |
01 |
| 009 |
15161944 |
STRUT, L/GATE WDO |
CK1, 2 (06) |
2007-2013 |
01 |
| 010 |
15875510 |
HINGE, L/GATE |
CK1, 2 (06) (Z75) |
2009-2013 |
02 |
| 011 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (L/GATE HGE (L/GATE SI)) |
|
2007-2013 |
04 |
| 012 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (L/GATE STRUT BRKT (L/GATE SI)) |
|
2007-2013 |
04 |
| 013 |
15891962 |
BRACKET, L/GATE STRUT (L/GATE SI) |
CK1, 2 (06) (Z75) |
2007-2013 |
02 |
| 014 |
11518445 |
SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (L/GATE LK STKR) |
|
2007-2013 |
02 |
| 015 |
15134851 |
STRIKER, L/GATE LK |
CK1, 2 (06) |
2007-2013 |
01 |
| 016 |
15827433 |
STRUT, L/GATE |
CK1, 2 (06) (Z75) |
2009-2013 |
01 |
| 016 |
22743451 |
STRUT, L/GATE |
CK1, 2 (06) (Z75) |
2009-2013 |
01 |
| 017 |
15892254 |
BUMPER, L/GATE |
CK1, 2 (06) |
2007-2013 |
02 |
| 018 |
15816854 |
VALVE, BODY PRESS RLF (17.100) |
CK1, 2 (06) |
2012-2013 |
02 |
| 019 |
11561717 |
STUD, L/GATE STRUT (BODY SI) (M8X1.25X25) (STAINLESS STEEL) |
CK1, 2 (06) |
2007-2013 |
02 |
| 020 |
11514519 |
NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (L/GATE HGE (BODY SI)) |
|
2007-2013 |
04 |
| 021 |
22775503 |
WEATHERSTRIP, L/GATE |
CK1, 2 (06) |
2007-2013 |
01 |
| 022 |
11610075 |
RING, FOR 6MM DIA SHAFT, SS (L/GATE HGE PIN) |
|
2007-2013 |
02 |
| 023 |
22845014 |
WEATHERSTRIP, L/GATE UPR |
CK1, 2 (06) |
2007-2013 |
01 |
| 024 |
22782015 |
TAPE, L/GATE ADJ BPR PAD |
CK1, 2 (06) |
2007-2013 |
02 |
| 025 |
15273470 |
HANDLE, L/GATE WDO O/S (PART OF 4) |
CK1, 2 (06) (X88, Z75, Z88) |
2007-2013 |
01 |
| 026 |
25916031 |
TERMINAL, R/WDO DEFG WIRE (PART OF 4) (2.480) |
CK1, 2 (06) |
2007-2013 |
02 |
