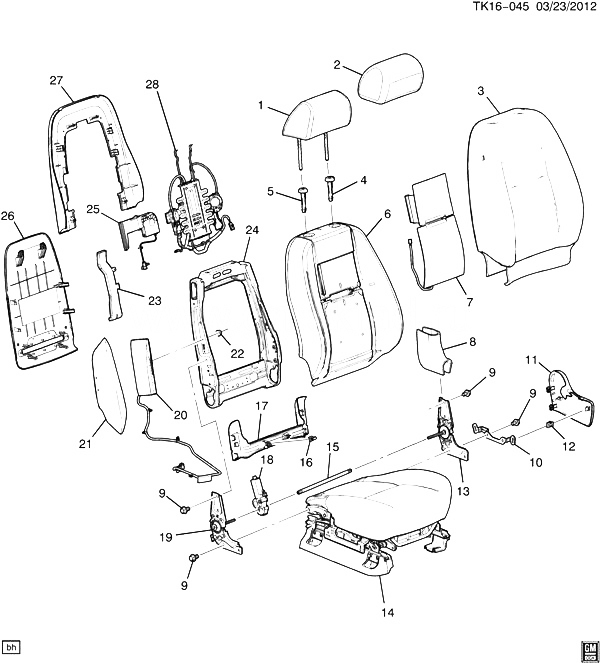

(TK16-045) 2012-2013 CK1,2(06-36) СИДЕНЬЕ ПАССАЖИРА/BUCKET-BACK (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20998437 RESTRAINT, P/SEAT HD (NO OPENING FOR DVD PLAYER) (INCLS 2) (EBONY) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2012-2013 01
001 20998449 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
001 20998450 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
001 20998452 RESTRAINT, P/SEAT HD (INCLS 2) (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AYE) 2012-2013 01
001 22784375 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) (EXC AYE) 2012-2013 01
001 20998443 RESTRAINT, P/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (AN3, 833, 836) 2012-2013 01
002 COVER, P/SEAT H/RST (PART OF 1) 2012-2013
003 22781391 COVER, P/SEAT BK (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2012-2013 01
003 22781393 COVER, P/SEAT BK (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
003 22781394 COVER, P/SEAT BK (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
003 22784372 COVER, P/SEAT BK (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
004 20912675 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2, 3 (33I, 39I) 2012-2013 02
004 20912677 GUIDE, P/SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (41I) 2012-2013 02
004 15279347 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2, 3 (19I) 2012-2013 02
004 20912676 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2012-2013 02
005 20912679 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I) 2012-2013 02
005 20912680 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (33I, 39I) 2012-2013 02
005 15279353 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2012-2013 02
005 25851751 GUIDE, P/SEAT H/RST (COCOA) (W/O BUTTON) CK1 (06) (41I) 2012-2013 02
006 22781425 PAD, P/SEAT BK CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
006 22781425 PAD, P/SEAT BK CK1 (06) (AN3, HNE, ULT, Z75) 2012-2013 01
008 15855911 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% RH) CK1, 2, 3 2012-2013 02
009 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2012-2013 08
010 15827137 BRACKET, P/SEAT RECL (INBOARD) CK1, 2, 3 2012-2013 01
011 15243830 COVER, P/SEAT INR RECL FIN (INCLS 12) (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
011 15243828 COVER, P/SEAT INR RECL FIN (INCLS 12) (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
011 15243829 COVER, P/SEAT INR RECL FIN (INCLS 12) (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
011 25851775 COVER, P/SEAT INR RECL FIN (INCLS 12) (COCOA) (INBOARD) CK1 (06) (AN3, 41I) 2012-2013 01
012 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 11) 2012-2013 02
013 RECLINER, P/SEAT INR (PART OF 24) 2012-2013
014 PAD, P/SEAT CUSH (SEE GROUP 16.000 PASSENGER SEAT/BUCKET-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2012-2013
015 RECLINER, P/SEAT (PART OF 24) 2012-2013
016 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 17) 2012-2013 04
017 15827131 COVER, F/SEAT RSR FIN (INCLS 16) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I) 2012-2013 02
017 25851756 COVER, F/SEAT RSR FIN (INCLS 16) (COCOA) CK1 (06) (AN3, 41I) 2012-2013 02
017 15827129 COVER, F/SEAT RSR FIN (INCLS 16) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2, 3 (19I, 88I) 2012-2013 02
017 15827130 COVER, F/SEAT RSR FIN (INCLS 16) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2, 3 (33I, 39I) 2012-2013 02
018 MOTOR, P/SEAT RECL ACTR (PART OF 24) 2012-2013
019 RECLINER, P/SEAT OTR (PART OF 24) 2012-2013
020 22755969 AIRBAG, P/SEAT SI CK1, 2 (06-36) 2012-2013 01
021 20824892 GUIDE, P/SEAT SI AIRBAG MDL CK1, 2, 3 2012-2013 01
022 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT) 2012-2013 05
023 22781389 DUCT, P/SEAT BACK VENTILATION CK1, 2 (06-36) (AL0, AN3, HNE, ULT, Z75, KB6, 195, 415) 2012-2013 01
024 22856917 FRAME, P/SEAT BK (INCLS 13, 15, 18, 19, 28) (POWER) CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
024 22856917 FRAME, P/SEAT BK (INCLS 13, 15, 18, 19, 28) (POWER) CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
025 22873118 BLOWER, P/SEAT BACK VENTILATION HEAT COOL CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 02
026 20926211 PANEL, P/SEAT BK FIN (EBONY) CK1, 2 (06-36) (AL0, AN3, KB6, 196) 2012-2013 01
026 20926221 PANEL, P/SEAT BK FIN (COCOA) CK1 (06) (AN3, HNE, Z75, 415) 2012-2013 01
026 22784374 PANEL, P/SEAT BK FIN (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
026 20926212 PANEL, P/SEAT BK FIN (CASHMERE) CK1, 2 (06-36) (AL0, AN3, KB6, 336) 2012-2013 01
026 20926185 PANEL, P/SEAT BK FIN (EBONY) (INCLS MAP POCKET W VENT HOLE) (WRAP IN VINYL) CK1 (06-36) (AN3, KB6, Z75, 194) 2012-2013 01
026 20926186 PANEL, P/SEAT BK FIN (CASHMERE) (WRAP IN VINYL) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
026 20926213 PANEL, P/SEAT BK FIN (TITANIUM) CK1, 2 (06-36) (AL0, AN3, KB6, 836) 2012-2013 01
026 20926207 PANEL, P/SEAT BK FIN (EBONY) (W/MAP POCKET) (W/O VENT HOLE) CK1, 2 (06-36) (AN3, 193) 2012-2013 01
027 20823362 BEZEL, F/SEAT BK OPG RR CK1, 2, 3 2012-2013 01
028 20918125 LUMBAR SUB, P/SEAT (PART OF 24) CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
028 20918125 LUMBAR SUB, P/SEAT (PART OF 24) CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
