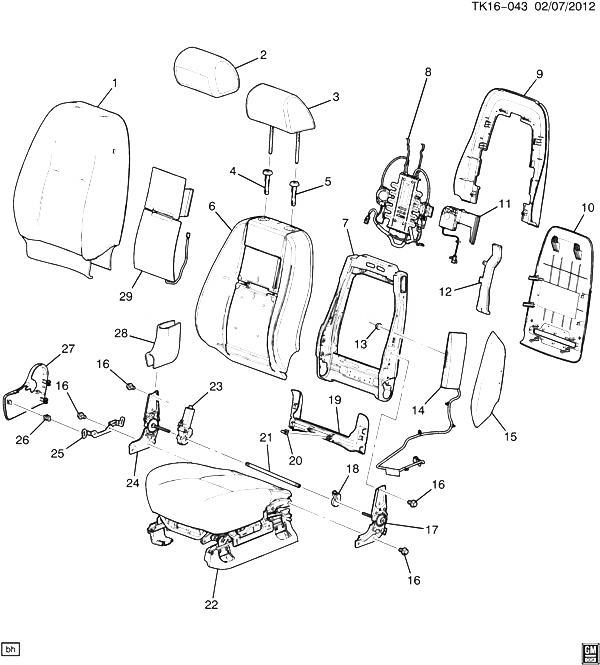

(TK16-043) 2012-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-BACK (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22781403 COVER, D/SEAT BK (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2012-2013 01
001 22781409 COVER, D/SEAT BK (EBONY) (USE ON TRUCKS WITH SIAB) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
001 22781410 COVER, D/SEAT BK (CASHMERE) (USE ON TRUCKS WITH SIAB) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
001 22784370 COVER, D/SEAT BK (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
002 COVER, D/SEAT H/RST (PART OF 3) 2012-2013
003 20998449 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
003 20998450 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
003 20998452 RESTRAINT, D/SEAT HD (INCLS 2) (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AYE) 2012-2013 01
003 20998437 RESTRAINT, D/SEAT HD (NO OPENING FOR DVD PLAYER) (INCLS 2) (EBONY) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2012-2013 01
003 22784375 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) (EXC AYE) 2012-2013 01
003 20998443 RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (AN3, 833, 836) 2012-2013 01
003 20998437 RESTRAINT, D/SEAT HD (NO OPENING FOR DVD PLAYER) (INCLS 2) (EBONY) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 195) 2012-2013 01
004 20912675 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2, 3 (33I, 39I) 2012-2013 02
004 20912677 GUIDE, D/SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (41I) 2012-2013 02
004 15279347 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2, 3 (19I) 2012-2013 02
004 20912676 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2012-2013 02
005 20912679 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I) 2012-2013 01
005 20912680 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (33I, 39I) 2012-2013 02
005 15279353 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2012-2013 02
005 25851751 GUIDE, D/SEAT H/RST (COCOA) (W/O BUTTON) CK1 (06) (41I) 2012-2013 02
006 22781428 PAD, D/SEAT BK CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
006 22781428 PAD, D/SEAT BK CK1 (06) (AN3, HNE, Z75, 195, 415) 2012-2013 01
007 22856912 FRAME, D/SEAT BK (INCLS 8, 17, 18, 21, 23, 24) CK1, 2 (06-36) (AL0, AN3, KB6, Z75) 2012-2013 01
008 20987411 LUMBAR SUB, D/SEAT (PART OF 7) (4 WAY POWER METAL BASKET MEMORY W/HARNESS) CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
008 20987411 LUMBAR SUB, D/SEAT (PART OF 7) (4 WAY POWER METAL BASKET MEMORY W/HARNESS) CK1, 2 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
009 20823362 BEZEL, F/SEAT BK OPG RR CK1, 2, 3 2012-2013 01
010 20926211 PANEL, D/SEAT BK FIN (EBONY) CK1, 2 (06-36) (AL0, AN3, KB6, 196) 2012-2013 01
010 20926221 PANEL, D/SEAT BK FIN (COCOA) CK1 (06) (AN3, HNE, Z75, 415) 2012-2013 01
010 22784374 PANEL, D/SEAT BK FIN (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
010 20926212 PANEL, D/SEAT BK FIN (CASHMERE) CK1, 2 (06-36) (AL0, AN3, KB6, 336) 2012-2013 01
010 20926185 PANEL, D/SEAT BK FIN (EBONY) (INCLS MAP POCKET W VENT HOLE) (WRAP IN VINYL) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
010 20926186 PANEL, D/SEAT BK FIN (CASHMERE) (WRAP IN VINYL) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
010 20926213 PANEL, D/SEAT BK FIN (TITANIUM) CK1, 2 (06-36) (AL0, AN3, KB6, 836) 2012-2013 01
011 22873118 BLOWER, D/SEAT BACK VENTILATION HEAT COOL CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 02
012 22781389 DUCT, D/SEAT BACK VENTILATION CK1, 2 (06-36) (AL0, AN3, KB6, 196, 336, 836, 197, 397) 2012-2013 01
012 22781389 DUCT, D/SEAT BACK VENTILATION CK1 (06) (AN3, HNE, ULT, Z75) 2012-2013 01
013 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT) 2012-2013 07
014 22755968 AIRBAG, D/SEAT SI CK1, 2 (06-36) 2012-2013 01
015 20824892 GUIDE, D/SEAT SI AIRBAG CK1, 2, 3 2012-2013 01
016 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2012-2013 08
017 RECLINER, D/SEAT OTR (PART OF 7) 2012-2013
018 SENSOR, D/SEAT RECL POSN (PART OF 7) 2012-2013
019 15827131 COVER, F/SEAT RSR FIN (INCLS 20) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I) 2012-2013 02
019 25851756 COVER, F/SEAT RSR FIN (INCLS 20) (COCOA) CK1 (06) (AN3, 41I) 2012-2013 02
019 15827129 COVER, F/SEAT RSR FIN (INCLS 20) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2, 3 (19I, 88I) 2012-2013 02
019 15827130 COVER, F/SEAT RSR FIN (INCLS 20) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2, 3 (33I, 39I) 2012-2013 02
020 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 19) 2012-2013 04
021 RECLINER, D/SEAT (PART OF 7) 2012-2013
022 PAD, D/SEAT CUSH (SEE GROUP 16.000 DRIVER SEAT/BUCKET-CUSHION FOR DETAILED ILLUSTRATED VIEW) (USED ON HEAT/COOL) 2012-2013
023 MOTOR, D/SEAT RECL ACTR (PART OF 7) 2012-2013
024 RECLINER, D/SEAT INR (PART OF 7) 2012-2013
025 25934810 BRACKET, D/SEAT RECL (I/B) CK1, 2, 3 2012-2013 01
026 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 27) 2012-2013 02
027 15243824 COVER, D/SEAT INR RECL FIN (INCLS 26) (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
027 15243825 COVER, D/SEAT INR RECL FIN (INCLS 26) (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
027 25851757 COVER, D/SEAT INR RECL FIN (INCLS 26) (COCOA) CK1 (06) (41I) 2012-2013 01
027 15243823 COVER, D/SEAT INR RECL FIN (INCLS 26) (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
028 15855909 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% LH) CK1, 2, 3 2012-2013 02
029 22856920 MAT, F/SEAT VENT FAN (BACK SERVICE PART) CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
029 22856920 MAT, F/SEAT VENT FAN (BACK SERVICE PART) CK1 (06) (AYE, AHE, ULT, Z75, 195, 415) 2012-2013 01
