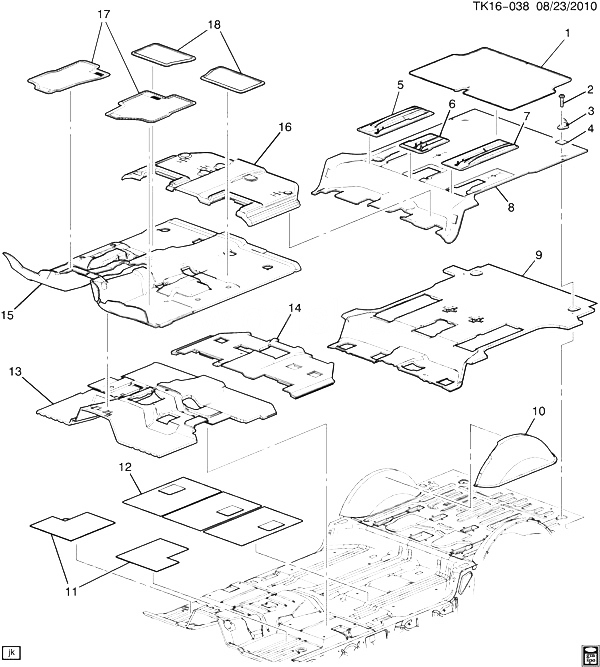

(TK16-038) 2011-2013 CK109,2(06) ПОКРЫТИЕ ПОЛА И СВЯЗАННЫЕ ДЕТАЛИ CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25913077 MAT PKG, CARGO CARPET (COCOA) (3.4850 KGS) (16.575) K109 (06) (ULT, Z75, 41I) 2010-2013 01
001 20847334 MAT PKG, REVERSIBLE CARGO (TITANIUM) (2.4125 KGS) (NO LOGO) (1 SI CPT 1 SI RUBBER) (16.575) CK109 (06) (STZ, 83I) 2010-2013 01
001 20847335 MAT PKG, REVERSIBLE CARGO (CASHMERE) (2.4125 KGS) (NO LOGO) (1 SI CPT 1 SI RUBBER) (16.575) CK109 (06) (STZ, Y91, 33I, 39I) 2010-2013 01
001 20847335 MAT PKG, REVERSIBLE CARGO (CASHMERE) (2.4125 KGS) (NO LOGO) (1 SI CPT 1 SI RUBBER) (16.575) CK109 (06) (STZ, Y91, 33I, 39I) 2010-2013 01
001 20847333 MAT PKG, REVERSIBLE CARGO (EBONY) (REVERSIBLE) (NO LOGO) (1 SI CPT 1 SI RUBBER) (16.575) CK109 (06) (STZ, Y91, 19I) 2010-2013 01
002 11588960 BOLT, PAN HD, M10X1.5X38, 30 THD, 18OD, 10.8, 4205GMW, TORX, M-POINT (CARGO TIE DN HOOK) 2010-2013 02
003 15749157 LOOP, CARGO TIE DN (BLACK) (17.090) CK1, 2 (06) 2010-2013 02
004 SEALING STRIP, CARGO TIE DN LOOP BOLT HOLE 2011-2013
005 BEZEL, 3RD ROW ST ANC PLT (PART OF 8) 2011-2013
006 BEZEL, 3RD ROW ST ANC PLT (PART OF 8) 2011-2013
007 BEZEL, 3RD ROW ST ANC PLT (PART OF 8) 2011-2013
008 94672830 MAT, R/FLR (BLACK) CK109, 2 (06) (BG9) 2010-2013 01
008 22878835 CARPET, R/FLR PNL (INCLS 5-7) (COCOA) CK109 (06) (B30, ULT, 41I) 2011-2013 01
008 22878834 CARPET, R/FLR PNL (INCLS 5-7) (CASHMERE) (69 LENGTH) CK109, 2 (06) (B30, 33I, 39I) 2011-2013 01
008 22878832 CARPET, R/FLR PNL (INCLS 5-7) (EBONY) CK109, 2 (06) (B30, 19I) 2011-2013 01
008 22878833 CARPET, R/FLR PNL (INCLS 5-7) (TITANIUM) CK109, 2 (06) (B30, 83I) 2011-2013 01
009 20922880 INSULATOR, FLR PNL RR CK109, 2 (06) 2010-2013 01
010 15917245 DEADENER, RR W/H INR PNL CK1, 2 (06) 2010-2013 AR
010 15917244 DEADENER, RR W/H INR PNL CK1, 2 (06) 2010-2013 AR
011 DEADENER, FLR PNL FRT 2011-2013
012 90584197 DEADENER, FLR PNL (88X220MM) (6.758) CK1, 2, 3 2010-2013 AR
013 22759505 INSULATOR, FLR PNL FRT CK109, 2 (06) (B30) 2010-2013 01
013 22759505 INSULATOR, FLR PNL FRT CK109, 2 (06) (BG9) 2010-2013 01
014 22837755 INSULATOR, R/FLR PNL CTR CK109, 2 (06) (B30) 2010-2013 01
015 25998546 MAT, F/FLR PNL (BLACK) CK109, 2 (06) (BG9) 2010-2013 01
015 22758278 CARPET, F/FLR PNL (CASHMERE) CK109, 2 (06) (B30, UQ3, 33I) 2011-2013 01
015 22758279 CARPET, F/FLR PNL (TITANIUM) CK109, 2 (06) (B30, UQ3, 83I) 2011-2013 01
015 22758283 CARPET, F/FLR PNL (CASHMERE) CK109, 2 (06) (B30, UQA, UQS, 33I, 39I) 2011-2013 01
015 22758282 CARPET, F/FLR PNL (EBONY) CK109, 2 (06) (B30, UQA, UQS, 19I) 2011-2013 01
015 22758284 CARPET, F/FLR PNL (TITANIUM) CK109, 2 (06) (B30, UQA, 83I) 2011-2013 01
015 22758281 CARPET, F/FLR PNL (COCOA) CK109 (06) (B30, ULT, UQS, 41I) 2011-2013 01
015 22758277 CARPET, F/FLR PNL (EBONY) CK109, 2 (06) (B30, UQ3, 19I) 2011-2013 01
016 22837747 CARPET, R/FLR PNL CTR (EBONY) CK109, 2 (06) (AL4, B30, 19I) 2011-2013 01
016 22837750 CARPET, R/FLR PNL CTR (CASHMERE) CK109, 2 (06) (AL4, B30, 33I, 39I) 2011-2013 01
016 22837752 CARPET, R/FLR PNL CTR (EBONY) CK109, 2 (06) (AM8, B30, 19I) 2010-2013 01
016 22837754 CARPET, R/FLR PNL CTR (CASHMERE) CK109, 2 (06) (AM8, B30, 33I, 39I) 2010-2013 01
016 22837749 CARPET, R/FLR PNL CTR (COCOA) CK109, 2 (06) (AL4, B30, 41I) 2012-2013 01
016 22837748 CARPET, R/FLR PNL CTR (TITANIUM) CK109, 2 (06) (AL4, B30, 83I) 2011-2013 01
016 22837753 CARPET, R/FLR PNL CTR (TITANIUM) CK109, 2 (06) (AM8, B30, 83I) 2010-2013 01
017 19206524 MAT PKG, FRONT CARPET (CASHMERE) (TWIN) (NO LOGO) (16.800) CK1 (Z75, 39I) 2010-2013 01
017 19207995 MAT PKG, FRONT CARPET (COCOA) (TWIN) (NO LOGO) (16.800) CK1 (06) (ULT, Z75, 41I) 2010-2013 01
017 19210585 MAT PKG, FRONT VINYL (EBONY) (TWIN) (NO LOGO) (16.800) CK1, 2 (06-36) (B37, 19I) (EXC BG9) 2010-2013 01
017 19121915 MAT PKG, FRONT CARPET (EBONY) (TWIN) (NO LOGO) (15.286) CK1 (Z75, 19I) (EXC ULT) 2012-2013 01
018 19206526 MAT PKG, REAR CARPET (CASHMERE) (TWIN) (16.800) CK109 (06) (Z75, 39I) 2010-2013 01
018 25913072 MAT PKG, REAR CARPET (COCOA) (1 PC) (16.800) CK1 (06) (ULT, Z75) 2010-2013 01
018 19210588 MAT PKG, REAR VINYL (EBONY) (TWIN) (16.800) CK1, 2 (06-36) (B37, 19I) 2010-2013 01
018 19206157 MAT PKG, REAR CARPET (EBONY) (TWIN) (16.800) CK109 (06) (Z75, 19I) (EXC ULT) 2012-2013 01
018 19210590 MAT PKG, REAR VINYL (CASHMERE) (TWIN) (16.800) CK1, 2 (06-36) (B37, 33I) 2010-2013 01
018 19210589 MAT PKG, REAR VINYL (TITANIUM) (TWIN) (16.800) CK1, 2 (06-36) (B37, 83I) 2010-2013 01
