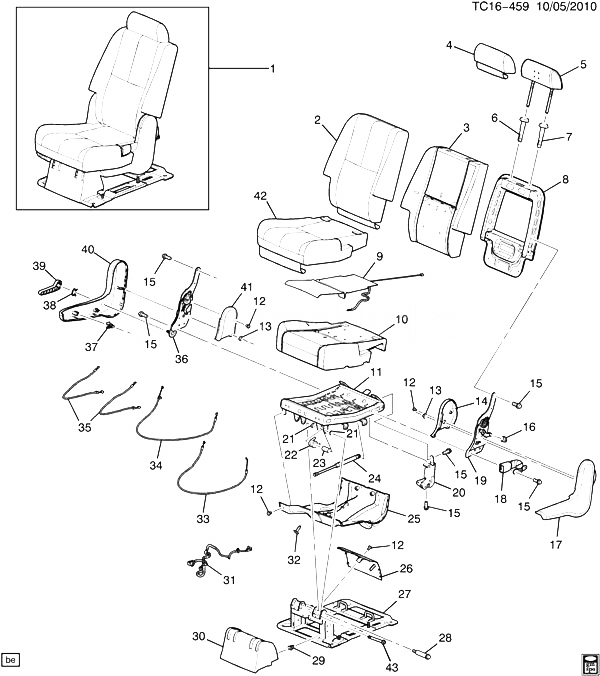

(TC16-459) 2007-2013 CK109,2(06) ЗАДНЕЕ СИДЕНЬЕ/BENCH-40% SIDE (AM8, EXC POWER FOLDING ARS) CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20841910 SEAT, RR (EBONY) CK109, 2 (06) (AM8, 19C, 5T5) 2011-2013 01
001 20841910 SEAT, RR (EBONY) CK109, 2 (06) (AM8, 19V) 2011-2013 01
001 20842390 SEAT, RR (EBONY) CK109 (06) (AM8, KA6, Z75, 194) (EXC ARS) 2011-2013 01
001 20842391 SEAT, RR (CASHMERE) CK109 (06) (AM8, KA6, Z75, 394) (EXC ARS) 2011-2013 01
001 20842462 SEAT, RR (EBONY) CK109, 2 (06) (AM8, 19C) (EXC 5T5) 2011-2013 01
001 20842463 SEAT, RR (CASHMERE) CK109, 2 (06) (AM8, 33C) 2011-2013 01
002 15914204 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19V) 2007-2013 01
002 25908033 COVER, R/SEAT BK (CASHMERE) CK1 (06) (AM8, KA6, Z75, 394) 2009-2013 01
002 25931397 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) 2009-2013 01
002 25931398 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
002 15865525 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 193) (EXC KB6) 2009-2013 01
002 15865526 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC KB6) 2009-2013 01
002 15865527 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC KB6) 2009-2013 01
002 15914204 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
002 20789578 COVER, R/SEAT BK (COCOA) CK1 (06) (AM8, HP2, ULT, Z75, 415) 2009-2013 01
002 20905045 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
002 20905046 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
002 20895604 COVER, R/SEAT BK (EBONY) CK1 (06) (AM8, KA6, Z75, 194) 2007-2013 01
002 25931396 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, KA6, KB6, 196) 2011-2013 01
002 22784392 COVER, R/SEAT BK (EBONY) CK1 (06) (AM8, HP2, ULT, Z75, 195) 2012-2013 01
003 15291598 PAD, R/SEAT BK CK1, 2 (06) (AM8) 2007-2013 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2007-2013
005 20960659 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2011-2013 02
005 20960660 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK1, 2 (06) (AM8, 33C) 2011-2013 02
005 20960662 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK109 (06) (AM8, KA6, Z75, 194) 2011-2013 02
005 20960663 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK109 (06) (AM8, KA6, Z75, 394) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107, 109, 2 (06) (AM8, 19C, 5T5) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107, 109, 2 (06) (AM8, 19V) 2011-2013 02
008 15269763 FRAME, R/SEAT BK CK1, 2 (06) (AM8) 2007-2013 01
009 15824761 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2013 01
010 15291600 PAD, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
011 15269765 FRAME, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
012 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2013 07
013 11562384 NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2013 02
015 11562378 BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 12
016 20963265 KNOB, R/SEAT LAT (EBONY) (INNER) CK1, 2 (06) 2011-2013 02
018 19121596 BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 01
018 19121595 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AM8, 33I, 39I) 2009-2013 01
018 19121593 BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 01
020 15275892 LATCH, R/SEAT RSR (RH SEAT I/B O/B) CK109, 2 (06) (AM8) 2007-2013 02
021 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AM8) 2007-2013 08
025 22772261 PANEL, R/SEAT CUSH TR (TITANIUM) CK109, 2 (06) (AM8, 83I) 2007-2013 01
025 20761401 PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER COVER) CK1 (06) (AM8, HP2, 194, 197) 2009-2013 01
025 25816465 PANEL, R/SEAT CUSH TR (EBONY) (SIDE SHIELD OUTER) CK1 (06) (AM8, HP2, 194, 197) 2009-2013 01
025 25816469 PANEL, R/SEAT CUSH TR (EBONY) (O/B INNER) CK1 (06) (AM8, HP2, 194, 197) 2009-2013 01
025 25816481 PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER) CK1 (06) (AM8, HP2, 194, 197) 2009-2013 01
025 25816485 PANEL, R/SEAT CUSH TR (EBONY) (HINGE COVER) CK1 (06) (AM8, HP2, 194) 2008-2013 02
025 20761401 PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER COVER) CK1 (06) (AM8, HP2, 195) 2012-2013 01
025 22772259 PANEL, R/SEAT CUSH TR (EBONY) CK109, 2 (06) (AM8, 19I) 2007-2013 01
025 22772260 PANEL, R/SEAT CUSH TR (CASHMERE) CK109, 2 (06) (AM8, 33I, 39I) 2007-2013 01
025 22772283 PANEL, R/SEAT CUSH TR (EBONY) (FLOOR LATCH 40% RR CTR) CK1 (06) (AM8, HP2, 19I) 2012-2013 01
025 22772284 PANEL, R/SEAT CUSH TR (CASHMERE) (FLOOR LATCH 40% RR CTR) CK1 (06) (AM8, HP2, 33I, 39I) 2008-2013 01
025 25816465 PANEL, R/SEAT CUSH TR (EBONY) (SIDE SHIELD OUTER) CK1 (06) (AM8, HP2, 195) 2012-2013 01
025 25816469 PANEL, R/SEAT CUSH TR (EBONY) (O/B INNER) CK1 (06) (AM8, HP2, 195) 2012-2013 01
025 25816481 PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER) CK1 (06) (AM8, HP2, 195) 2012-2013 01
025 25816485 PANEL, R/SEAT CUSH TR (EBONY) (HINGE COVER) CK1 (06) (AM8, HP2, 195) 2012-2013 02
027 25944145 RISER, R/SEAT CK1 (06) (AM8, HP2) 2009-2013 01
027 22741879 RISER, R/SEAT CK109, 2 (06) (AM8) 2012-2013 01
029 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 30) 2007-2013
031 15843762 HARNESS, R/SEAT HTR (2.480) CK107, 109 (06) (Z75, 195, 415) 2011-2013 01
031 15843764 HARNESS, R/SEAT HTR CK1 (06) (Z75, 194, 394) 2011-2013 01
032 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 02
032 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 02
032 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (33I, 39I) 2007-2013 02
037 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 17, 40) 2007-2013
038 RETAINER, R/SEAT ADJR RLR (PART OF 39) 2007-2013
039 15279429 HANDLE, R/SEAT RECL (INCLS 38) (TITANIUM) CK1, 2 (06) (83I) 2007-2013 01
039 25858446 HANDLE, R/SEAT RECL (INCLS 38) (COCOA) CK1 (06) (AM8, 41I) 2009-2013 01
039 15279419 HANDLE, R/SEAT RECL (INCLS 38) (EBONY) CK1, 2 (06) (19I) 2007-2013 01
039 15279420 HANDLE, R/SEAT RECL (INCLS 38) (CASHMERE) CK1, 2 (06) (33I) 2007-2013 01
039 15279420 HANDLE, R/SEAT RECL (INCLS 38) (CASHMERE) CK1 (06) (39I) 2007-2013 01
040 15279619 COVER, R/SEAT BK HGE FIN (INCLS 37) (EBONY) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 19I) 2009-2013 01
042 15914208 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19V) 2007-2013 01
042 25908034 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) 2009-2013 01
042 25931403 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, KB6, 336) 2009-2013 01
042 25931404 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
042 15865714 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) 2009-2013 01
042 15865715 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) 2009-2013 01
042 15865716 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) 2009-2013 01
042 15914208 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
042 20905039 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
042 20905040 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
042 20905442 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AM8, KA6, Z75, 194) (EXC HP2) 2009-2013 01
042 25931402 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, KA6, KB6, 196) 2011-2013 01
043 11570031 PIN, R/SEAT HGE (6 X 1 X 78) CK1, 2 (06) 2007-2013 01
043 11570032 PIN, R/SEAT HGE (6 X 1 X 98) CK1, 2 (06) 2007-2013 01
