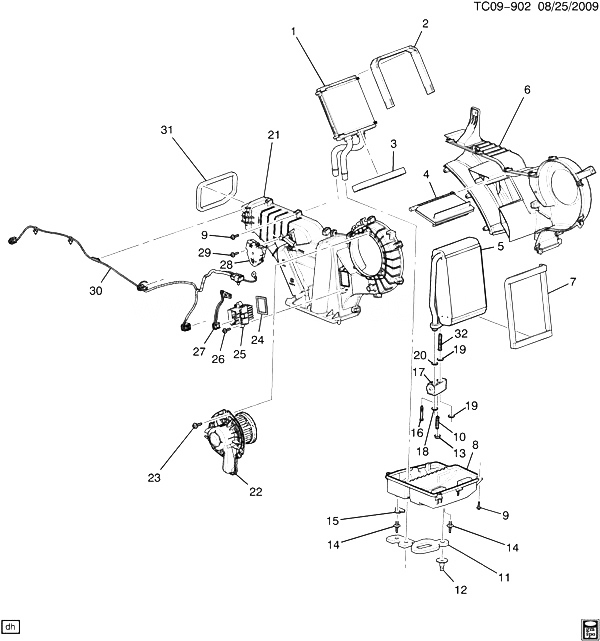

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25882728 |
CORE, AUX HTR (ACDelco #15-63353) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 002 |
|
SEAL, AUX HTR CORE (*KIT1) |
|
2007-2013 |
|
| 003 |
|
SEAL, AUX HTR CORE (*KIT1) |
|
2007-2013 |
|
| 004 |
52495923 |
VALVE, TEMP (AUX) (ACDelco #15-5717) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 005 |
15225889 |
EVAPORATOR, AUX A/C (ACDelco #15-63354) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 006 |
15225885 |
CASE, AUX A/C EVPR BLO |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 007 |
|
SEAL, AUX A/C EVPR (*KIT1) |
|
2007-2013 |
|
| 008 |
15225890 |
COVER, AUX HTR |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 009 |
11609829 |
BOLT, AUX HTR A/C EVPR BLO MDL (M4.2X2.25X16) (9.786) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
25 |
| 010 |
11562519 |
STUD, A/C EVPR HOSE |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 011 |
|
SEAL, A/C EVPR TUBE (*KIT1) |
|
2007-2013 |
|
| 012 |
15189481 |
VALVE, AUX A/C EVPR BLO MDL DRN (ACDelco #15-5420) |
CK1, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 013 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 17) (8.915) (ACDelco #11514596) |
|
2007-2013 |
01 |
| 014 |
89018613 |
STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) |
CK109, 2 (CJ2, CJ3, C69) |
2007-2013 |
02 |
| 015 |
52482830 |
CLAMP, HTR CORE TUBE |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 015 |
52482830 |
CLAMP, HTR CORE TUBE (8.846) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 016 |
10308604 |
BOLT, A/C EVPR TXV (PART OF 17) (M5X.8X53MM) (PART OF MODULE) (9.242) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
02 |
| 017 |
52495729 |
VALVE KIT, AUX A/C EVPR THERMAL EXPN (INCLS 13, 16, 18-20) (ACDelco #15-50141) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 018 |
89019245 |
SEAL, A/C EVPR TXV (23.5 OD X 15.5MM ID) (PART OF 17) (9.222) (ACDelco #15-33898) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 019 |
52474373 |
SEAL, A/C EVPR TUBE (PART OF 17) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2 (CJ2, CJ3, C36, C69) |
2007-2013 |
AR |
| 020 |
02724966 |
SEAL, A/C CMPR HOSE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 17) (ACDelco #15-31101) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 021 |
15225886 |
CASE, AUX A/C EVPR BLO |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 022 |
25783777 |
MOTOR, AUX BLO (ACDelco #15-80875) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 022 |
25783777 |
MOTOR, AUX BLO (8.855) (ACDelco #15-80875) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 023 |
11609829 |
BOLT, AUX HTR A/C EVPR BLO MDL (M4.2X2.25X16) (9.786) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
25 |
| 024 |
|
INSULATOR, BLO MOT CONT MDL (PART OF 25) |
|
2007-2013 |
|
| 025 |
13501703 |
MODULE, BLO MOT CONT (INCLS 24) (9.169) (ACDelco #15-81638) |
CK1, 2 (06) (CJ2, CJ3) |
2010-2013 |
01 |
| 026 |
11609829 |
BOLT, AUX HTR A/C EVPR BLO MDL (M4.2X2.25X16) (9.786) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
25 |
| 027 |
15225888 |
HARNESS, A/C WRG (ACDelco #15-75217) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 028 |
89018375 |
ACTUATOR, TEMP VLV (AUX) (ACDelco #15-72972) |
CK109, 2 (06) (CJ2, C36, C69, CJ3) |
2007-2013 |
01 |
| 029 |
11609829 |
BOLT, AUX HTR A/C EVPR BLO MDL (M4.2X2.25X16) (9.786) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
25 |
| 030 |
22854227 |
HARNESS, AUX HTR A/C WRG |
CK109, 2 (06) (CJ3, C69) |
2009-2013 |
01 |
| 031 |
52484090 |
SEAL, AUX HTR A/C MDL OTLT DUCT (*KIT1) (ACDelco #52484090) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 032 |
89022560 |
SCREEN, A/C EVPR TXV (ACDelco #15-75209) |
CK109, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 032 |
52494593 |
SCREEN, A/C EVPR TXV (ACDelco #15-75210) |
CK1 (06) (LC9, LMG, L20, L94, CJ2, CJ3, C69) |
2011-2013 |
01 |
| K01 |
15225899 |
SEAL KIT, AUX HTR A/C EVAP MDL (INCLS 2, 3, 7, 11, 31) (ACDelco #15225899) |
CK109, 2 (06) |
2007-2013 |
01 |
