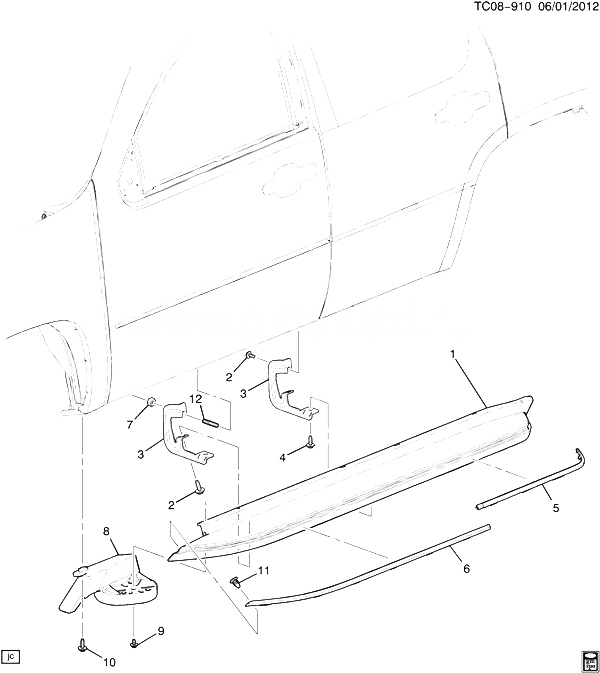

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15914680 |
STEP, ASST |
CK109 (06-36) (BVU) |
2008-2013 |
01 |
| 001 |
15914681 |
STEP, ASST |
CK109 (06-36) (BVU) |
2008-2013 |
01 |
| 002 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP) |
|
2007-2013 |
12 |
| 003 |
20827146 |
BRACKET, ASST STEP |
CK109 (06-36) (BVU) |
2013-2013 |
08 |
| 004 |
11609997 |
BOLT, ASST STEP |
CK1, 2 |
2007-2013 |
08 |
| 005 |
15914686 |
INSERT, ASST STEP (RR) |
CK109 (06-36) (BVU, Y91, Z75, Z88) |
2007-2013 |
01 |
| 005 |
15914687 |
INSERT, ASST STEP (RR) |
CK109 (06-36) (BVU, Y91, Z75, Z88) |
2007-2013 |
01 |
| 006 |
15914682 |
INSERT, ASST STEP (FRT) |
CK109 (06-36) (BVU) |
2009-2013 |
01 |
| 006 |
15914683 |
INSERT, ASST STEP (FRT) |
CK109 (06-36) (BVU) |
2009-2013 |
01 |
| 007 |
15231167 |
NUT, ASST STEP (M6 I.D M12 O.D X 1.00 X 11.68) (INSERT) |
CK1, 2 (EXC MSL) |
2007-2013 |
04 |
| 008 |
15291811 |
EXTENSION, ASST STEP FRT |
CK1 (06-36) (BVU) |
2007-2013 |
01 |
| 008 |
15291812 |
EXTENSION, ASST STEP FRT |
CK1 (06-36) (BVU) |
2007-2013 |
01 |
| 009 |
11609997 |
BOLT, ASST STEP FRT EXTN |
CK1, 2 |
2007-2013 |
02 |
| 010 |
11519742 |
BOLT, WASHER, M8X1.25X40, 33.4 THD, 39 OD, 9.8, 7114M, 2.5-3.5 THK FL WA (ASST STEP) |
|
2007-2013 |
02 |
| 011 |
25694574 |
RETAINER, ASST STEP FRT EXTN (PUSH IN) (PLASTIC TREE, FIT 5.0-5.25 DIA HOLE, 12MM LGTH, 10 OD, NYLON) (10.695) |
CK109 (06-36) (BVU) |
2007-2013 |
01 |
| 012 |
03540325 |
STUD, ASST STEP (9.173) |
CK1, 2 |
2007-2013 |
04 |
