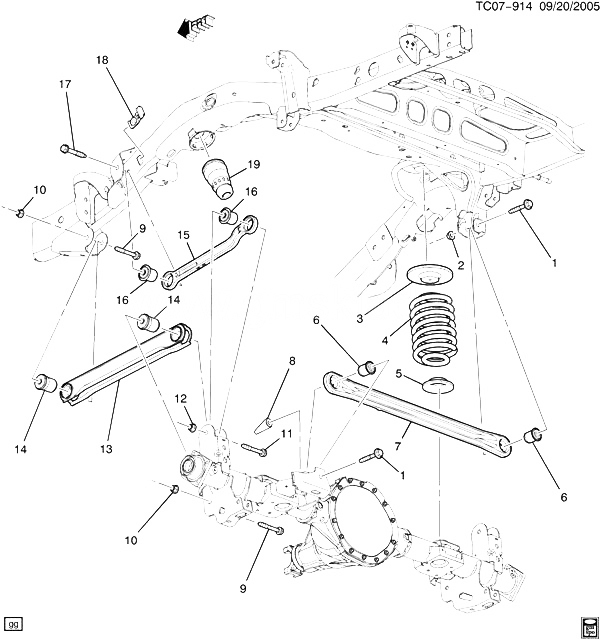

(TC07-914) 2007-2013 CK1(06-36) ПОДВЕСКА ЗАДНЯЯ PART 2 CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11518725 BOLT, R/AXL TIE ROD (M14X2.0X95) (HVY HEX FLG HD W/CON SPR WA) (8.900) CK1 (06-36) 2007-2013 02
002 11516382 NUT, R/AXL TIE ROD (FRAME SIDE ONLY) (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) CK1 (06-36) 2007-2013 01
003 15251980 INSULATOR, RR SPR (FRAME SIDE ONLY) CK1 (06-36) 2007-2013 02
004 25783732 SPRING, RR COIL (CODE MBD YWJ) K1 (06-36) (Z55) 2007-2013 02
004 25783731 SPRING, RR COIL (CODE MBC YWH) CK1 (06-36) (Z95) 2008-2013 02
005 15713853 INSULATOR, RR SPR (AXLE SIDE ONLY) CK1 (06-36) 2007-2013 02
006 BUSHING, R/AXL TIE ROD (PART OF 7) 2007-2013
007 15039398 ROD, R/AXL TIE (INCLS 6) CK1 (06-36) 2007-2013 01
008 11609486 NUT, R/AXL TIE ROD (AXLE SIDE ONLY) (M14X2) CK1 (06-36) 2007-2013 01
009 11517766 BOLT, R/AXL LWR CONT ARM (M14X2X106) (HEX W/CON WA) (8.900) CK1 (06-36) 2007-2013 04
010 11516382 NUT, R/AXL LWR CONT ARM (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) CK1 (06-36) 2007-2013 04
011 11517901 BOLT, R/AXL UPR CONT ARM (M14X2X90) (HEX W/CON WA) (8.900) CK1 (06-36) 2007-2013 04
012 11516382 NUT, R/AXL UPR CONT ARM (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) CK1 (06-36) 2007-2013 02
013 15239738 ARM, R/AXL LWR CONT (INCLS 14) CK1 (06-36) 2007-2013 02
014 BUSHING, R/AXL LWR CONT ARM (PART OF 13) 2007-2013
015 20917465 ARM, R/AXL UPR CONT (INCLS 16) CK1 (06-36) 2011-2013 02
016 BUSHING, R/AXL UPR CONT ARM (PART OF 15) 2007-2013
017 11517901 BOLT, R/AXL UPR CONT ARM (M14X2X90) (HEX W/CON WA) (8.900) CK1 (06-36) 2007-2013 04
018 11562586 NUT, R/AXL UPR CONT ARM (M14X2, 9THK) (W/J CLIP RETAINER) CK1 (06-36) 2007-2013 02
019 15039397 BUMPER, RR SUSP JOUNCE CK1 (06-36) (Z55) 2007-2013 02
019 15039397 BUMPER, RR SUSP JOUNCE CK1 (06-36) (Z95) 2008-2013 02
