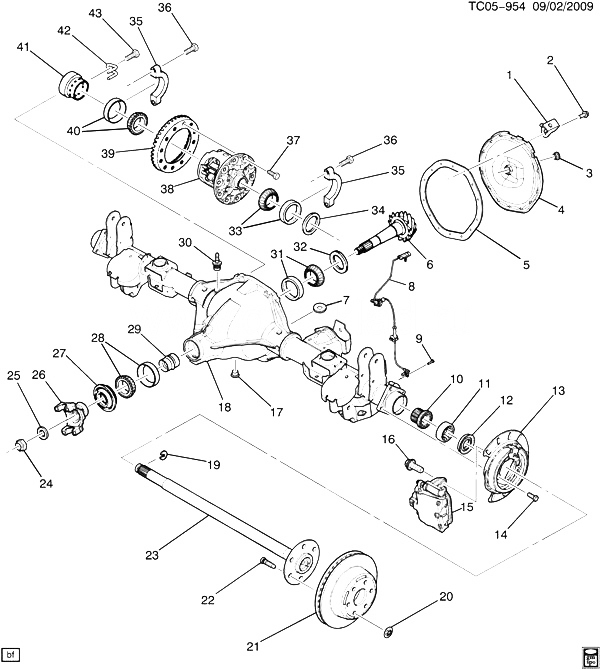

(TC05-954) 2010-2013 CK1(06-36) ОСЬ ЗАДНЯЯ В СБОРЕ 9.50 RING GEAR PART 1 (AXN) CADILLAC - ESCALADE ESV (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20763162 BRACKET, RR BRK C/OVR PIPE CK1 2010-2013 01
002 12471307 BOLT, R/AXL HSG CVR (PART OF 4) (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) CK1, 2, 3 2010-2013 AR
002 11546347 BOLT, R/AXL HSG CVR (PART OF 4) (M8X1.25X11.6, 19.2THD) CK1 2012-2013 09
002 11546348 BOLT, R/AXL HSG CVR (PART OF 4) (M8X1.25X26.6, 23.2THD) CK1 2012-2013 01
003 92230583 PLUG, R/AXL HSG FILL (PART OF 4) (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (NO ZINC COATING) CK1 2010-2013 01
003 55573646 PLUG, R/AXL HSG FILL (PART OF 4) (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (ZINC COATED) (4.510) CK1 2012-2013 01
004 19133285 COVER KIT, R/AXL HSG (INCLS 2, 3, 5) (INCLS COVER, GSKT, BOLTS, FILL PLUG) CK1 2010-2013 01
005 26063649 GASKET, R/AXL HSG CVR (PART OF 4) (14 BOLT HOLES) CK1 2010-2013 01
006 GEAR SET, DIFF RING DRV PINION (*KIT1) 2010-2013
007 12471607 MAGNET, R/AXL HSG CHIP COLLECTOR (4.105) (ACDelco #12471607) CK1, 2 2010-2013 01
008 20938122 SENSOR, RR WHL SPD (ACDelco #20938122) CK1 (06-36) 2010-2013 02
009 15960191 BOLT, WHL SPD SEN (M6X1X12) CK1, 2, 3 2010-2013 02
010 15286384 RING, WHL SPD SEN RELUCTOR CK1 2010-2013 02
011 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 2010-2013 02
012 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 2010-2013 02
013 BRAKE, PARK (SEE GROUP 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2010-2013
014 11570339 SCREW, FLAT CS, M6X1X20, 12.3 OD, 14.2 THD, GMW25 (8.8), GMW3044, T-30, HDR-P (RR BRK ROT) (8.908) 2010-2013 01
015 CALIPER, RR BRK (SEE GROUP 04.000 BRAKE CALIPER/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
016 11546339 BOLT, RR BRK CLPR CK1 2013-2013 04
018 25928339 HOUSING, R/AXL (INCLS 35, 36) CK1 (06-36) (AXN, GU6, G80, JD9) 2010-2013 01
019 14012746 LOCK, R/AXL SHF (43.0 X 22.5MM) CK1 2010-2013 02
020 RETAINER, RR BRK ROT (PUSH ON) 2010-2013
021 25832103 ROTOR, RR BRK (ACDelco #177-1041) CK1 2010-2013 02
022 11588811 STUD, RR WHL (M14X1.5X58, 24THD) (21 OD) CK1 2010-2013 24
023 15812663 SHAFT, R/AXL CK1 2010-2013 02
024 88891763 NUT, DIFF DRV P/GR (R/AXL) (PART OF 26) (M10) (*KIT1) CK1 2010-2013 01
025 00517900 WASHER, DIFF DRV P/GR (PART OF 26) (.890X1.625X.190) (*KIT1) CK1 2010-2013 01
026 26064012 YOKE, DIFF DRV P/GR (INCLS 24, 25, 27) CK1 (06-36) (AXN, GU6, G80, JD9) 2010-2013 01
027 26064029 SEAL, DIFF DRV P/GR (PART OF 26) (5.545) CK1 2010-2013 01
028 09417781 BEARING, DIFF DRV P/GR OTR (2.84) (5.484) (ACDelco #S604) CK1 2010-2013 01
028 25824252 BEARING, DIFF DRV P/GR OTR (INCLS 1 CONE AAM# 40048060 AND 1 CUP AAM# 40048058) (8.5/8.625 DIA) (ACDelco #S1382) CK1 2010-2013 01
029 14012691 SPACER, DIFF DRV P/GR BRG (35.5MM I.D. X 16.3MM WIDE) (*KIT1) CK1 2010-2013 01
030 26063647 CONNECTOR, R/AXL VENT HOSE CK1, 2, 3 2010-2013 01
030 22876129 CONNECTOR, R/AXL VENT HOSE CK1 (NOT YET AVAILABLE) 2012-2013 01
031 00457108 BEARING, DIFF DRV P/GR INR (ACDelco #S37) CK1 2010-2013 01
032 14038010 SHIM KIT, DIFF DRV P/GR BRG (R/AXL) (.5080-.5842MM) CK1 (AXN) 2010-2013 01
032 14038011 SHIM KIT, DIFF DRV P/GR BRG (.6096-.7112MM) CK1 2010-2013 01
032 14038012 SHIM KIT, DIFF DRV P/GR BRG (.7366-.8382MM) CK1 2010-2013 01
032 14038013 SHIM KIT, DIFF DRV P/GR BRG (.8636-.9398MM) CK1 2010-2013 01
033 11505123 BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) CK1 2010-2013 02
033 25824250 BEARING, DIFF (8.5/8.625 DIA) (ACDelco #S1380) CK1 2010-2013 02
034 14012725 SHIM, DIFF BRG (5.59 MM) CK1 2010-2013 01
034 14012726 SHIM, DIFF BRG (5.64 MM) CK1 2010-2013 01
034 14012727 SHIM, DIFF BRG (5.69 MM) CK1 2010-2013 01
034 14012728 SHIM, DIFF BRG (5.74 MM) CK1 2010-2013 01
034 14012729 SHIM, DIFF BRG (5.79 MM) CK1 2010-2013 01
034 14012730 SHIM, DIFF BRG (5.84 MM) CK1 2010-2013 01
034 14012731 SHIM, DIFF BRG (5.89 MM) CK1 2010-2013 01
034 14012732 SHIM, DIFF BRG (5.94 MM) CK1 2010-2013 01
034 14012733 SHIM, DIFF BRG (5.99 MM) CK1 2010-2013 01
034 14012734 SHIM, DIFF BRG (6.05 MM) CK1 2010-2013 01
034 14012735 SHIM, DIFF BRG (6.10 MM) CK1 2010-2013 01
034 14012736 SHIM, DIFF BRG (6.15 MM) CK1 2010-2013 01
034 14012737 SHIM, DIFF BRG (6.20 MM) CK1 2010-2013 01
034 14012738 SHIM, DIFF BRG (6.25 MM) CK1 2010-2013 01
034 14012739 SHIM, DIFF BRG (6.30 MM) CK1 2010-2013 01
034 14012740 SHIM, DIFF BRG (6.35 MM) CK1 2010-2013 01
034 14012741 SHIM, DIFF BRG (6.40 MM) CK1 2010-2013 01
034 14012742 SHIM, DIFF BRG (6.45 MM) CK1 2010-2013 01
034 14012743 SHIM, DIFF BRG (6.50 MM) CK1 2010-2013 01
034 14012752 SHIM, DIFF BRG (6.55 MM) CK1 2010-2013 01
035 CAP, DIFF BRG (PART OF 18) 2010-2013
036 14012675 BOLT, DIFF BRG CAP (PART OF 18) (M12X1.75X74) CK1 2010-2013 04
037 14012675 BOLT, RR DIFF R/GR (M12X1.75X74) (*KIT1) (5.506) CK1 2010-2013 12
038 22849885 DIFFERENTIAL, (SEE GROUP 05.000 AXLE ASM/REAR LOCKING DIFFERENTIAL FOR DETAILED ILLUSTRATED VIEW) (W/GEARS) CK1 2010-2013 01
038 22849885 DIFFERENTIAL, (SEE GROUP 05.000 AXLE ASM/REAR LOCKING DIFFERENTIAL FOR DETAILED ILLUSTRATED VIEW) (W/GEARS) (5.510) CK1 2010-2013 01
039 GEAR, DIFF RING (*KIT1) 2010-2013
040 11505123 BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) CK1 2010-2013 02
040 25824250 BEARING, DIFF (8.5/8.625 DIA) (ACDelco #S1380) CK1 2010-2013 02
041 14012753 NUT, DIFF BRG ADJ (M86X1.5) CK1 2010-2013 01
042 14012707 LOCK, DIFF BRG ADJ NUT (5.537) CK1 2010-2013 01
043 11515755 BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (DIFF BRG ADJ NUT LK) (T/W 12345493 REPLCS 25534835) CK1 2010-2013 01
K01 88965784 GEAR KIT, DIFF RING PINION (INCLS 6, 24, 25, 29, 37, 39) CK1 (AXN, GT4) 2010-2013 01
