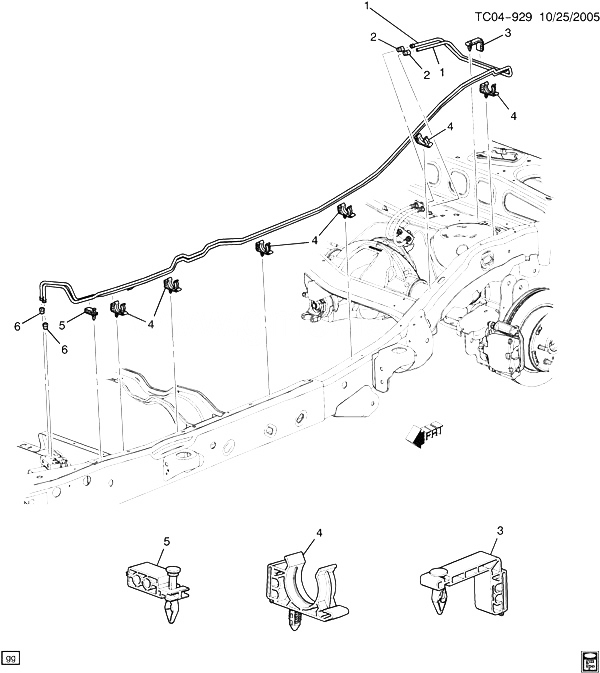

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) |
|
2007-2013 |
AR |
| 002 |
11518522 |
NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (RR BRK FRT PIPE) |
|
2007-2013 |
02 |
| 003 |
11610034 |
CLIP, RR BRK FRT PIPE (BROWN/BLACK) (8X22X44) (HOLDS (2)6.75 TUBES) (PRONG FITS 8 DIA HOLE IN 3.2 THK PNL) |
CK109 (06-36) (JD9) |
2007-2013 |
01 |
| 004 |
11610035 |
CLIP, RR BRK FRT PIPE (BROWN/BLACK) (6.9 X 20.4/77.4 X 15) (HOLDS (1)4.8, (2)6.75 TUBES, (1)32 HARNESS) (FITS 7.2 HOLE) |
CK109 (06-36) (JD9) |
2007-2013 |
06 |
| 005 |
15194368 |
CLIP, RR BRK FRT PIPE (BLACK) (9.2X33.1X15) (HOLDS (2)7.94 LINES) (NYLON) (4.685) |
CK1 (06-36) (JD9) |
2009-2013 |
02 |
| 006 |
11562075 |
NUT, RR BRK FRT PIPE (M12X1.5X17) (INVERTED FLARE) |
CK1, 2, 3 |
2011-2013 |
01 |
