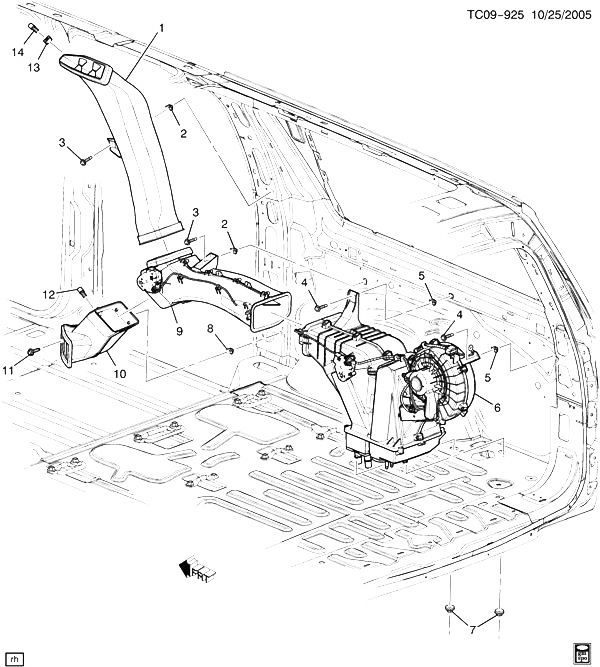

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25897953 |
DUCT, AUX A/C AIR OTLT (INCLS 13) |
CK109, 2 (06) (C69) |
2007-2013 |
01 |
| 002 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX A/C AIR OTLT DUCT) (10.512) |
|
2007-2013 |
02 |
| 003 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX A/C AIR OTLT DUCT) (9.665) |
|
2007-2013 |
02 |
| 004 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX HTR A/C EVPR BLO MDL) (9.665) |
|
2007-2013 |
02 |
| 005 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX HTR A/C EVPR BLO MDL) (10.512) |
|
2007-2013 |
02 |
| 006 |
|
MODULE, AUX HTR A/C EVPR BLO (SEE GROUP 09.000 AUXILIARY A/C EVAPORATOR BLOWER HEATER ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX HTR A/C EVPR BLO MDL) |
|
2007-2013 |
02 |
| 008 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX HTR AIR OTLT) (10.512) |
|
2007-2013 |
01 |
| 009 |
|
DISTRIBUTOR, FLR RR AIR (SEE GROUP 09.000 AIR DISTRIBUTION ASM-REAR AUX FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 010 |
15779004 |
OUTLET, AUX HTR AIR (USED ON RH SIDE) |
CK109, 2 (06) (C36, C69) |
2007-2013 |
01 |
| 011 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX HTR AIR OTLT) (9.665) |
|
2007-2013 |
01 |
| 012 |
|
SENSOR, DUCT AIR TEMP |
|
2007-2013 |
|
| 013 |
15152429 |
RETAINER, AMB AIR TEMP SEN (PUSH IN) (PART OF 1) (HOLE LINER TYPE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 014 |
|
SENSOR, DUCT AIR TEMP |
|
2007-2013 |
|
