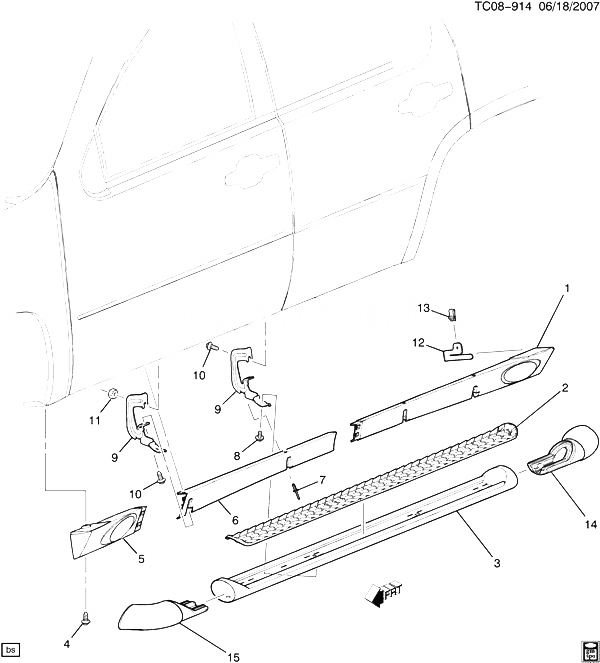

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25831409 |
COVER, ASST STEP FIN (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 001 |
25831410 |
COVER, ASST STEP FIN (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 002 |
25804638 |
PAD, ASST STEP (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 002 |
25804639 |
PAD, ASST STEP (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 003 |
25804635 |
STEP, ASST (EXCLS COVER, BRKT, PAD, INSULATOR) (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 003 |
25831394 |
STEP, ASST (EXCLS COVER, BRKT, PAD, INSULATOR) (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 004 |
11519742 |
BOLT, WASHER, M8X1.25X40, 33.4 THD, 39 OD, 9.8, 7114M, 2.5-3.5 THK FL WA (ASST STEP) (*KIT1) |
|
2007-2013 |
02 |
| 005 |
25816111 |
EXTENSION, ASST STEP FRT |
CK1 (06-36) (BVV) |
2007-2013 |
01 |
| 005 |
25816112 |
EXTENSION, ASST STEP FRT |
CK1 (06-36) (BVV) |
2007-2013 |
01 |
| 006 |
15929675 |
COVER, ASST STEP FIN (FRT) (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 006 |
15929677 |
COVER, ASST STEP FIN (FRT) (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 007 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (ASST STEP) |
|
2007-2013 |
08 |
| 008 |
11609997 |
BOLT, ASST STEP |
CK1, 2 |
2007-2013 |
08 |
| 009 |
25831412 |
BRACKET, ASST STEP (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
04 |
| 009 |
25831411 |
BRACKET, ASST STEP (*KIT1) |
CK109 (06-36) (BVV) |
2010-2013 |
03 |
| 010 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP) |
|
2007-2013 |
12 |
| 011 |
15231167 |
NUT, ASST STEP (M6 I.D M12 O.D X 1.00 X 11.68) (INSERT) |
CK1, 2 (EXC MSL) |
2007-2013 |
04 |
| 011 |
25640265 |
NUT, ASST STEP (M8X1.25) (10.463) |
CK1, 2 (MSL) |
2007-2013 |
16 |
| 012 |
25816113 |
BRACKET, ASST STEP RR (INCLS 13) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 012 |
25816114 |
BRACKET, ASST STEP RR (INCLS 13) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 013 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 12) |
|
2007-2013 |
02 |
| 014 |
25804640 |
INSULATOR, ASST STEP RR SUPT (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 014 |
25804641 |
INSULATOR, ASST STEP RR SUPT (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 015 |
25804642 |
INSULATOR, ASST STEP FRT SUPT (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| 015 |
25804643 |
INSULATOR, ASST STEP FRT SUPT (*KIT1) |
CK109 (06-36) (BVV) |
2007-2013 |
01 |
| K01 |
20919370 |
STEP, ASST (INCLS 1-4, 6, 9, 14, 15) (INCLS COVER, BRKT, PAD, INSULATOR) |
CK109 (06-36) (BVV) |
2011-2013 |
01 |
| K01 |
20919371 |
STEP, ASST (INCLS 1-4, 6, 9, 14, 15) |
CK109 (06-36) (BVV) |
2011-2013 |
01 |
