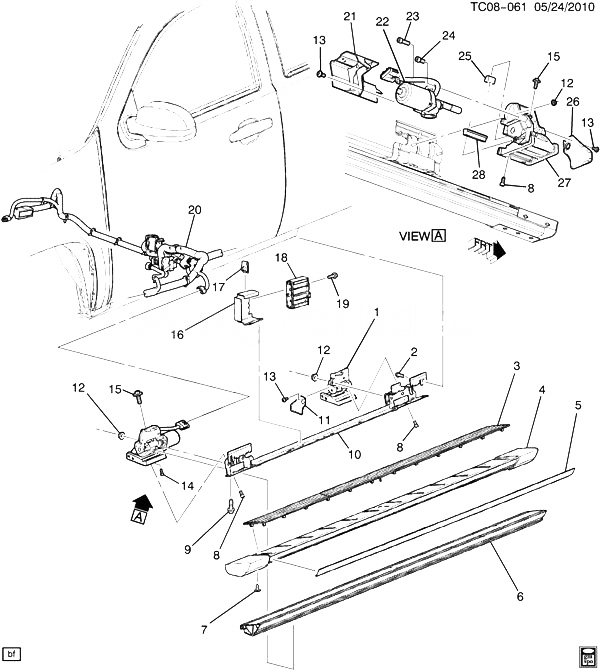

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22778158 |
BRACKET, ASST STEP (BRKT USED ON RR END OF MOTORIZED ASSIST STEP) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 001 |
22778162 |
BRACKET, ASST STEP (BRKT USED ON RR END OF MOTORIZED ASSIST STEP) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 002 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP) |
|
2009-2013 |
08 |
| 003 |
15806414 |
PAD, ASST STEP |
CK109 (06-36) (BRS, Y91) |
2009-2013 |
02 |
| 004 |
20919403 |
COVER, ASST STEP FIN (INCLS 5) (INCLS INSERT) |
CK109 (06-36) (BRS, Y91) |
2009-2013 |
01 |
| 004 |
20919404 |
COVER, ASST STEP FIN (INCLS 5) (INCLS INSERT) |
CK109 (06-36) (BRS, Y91) |
2009-2013 |
01 |
| 005 |
|
INSERT, ASST STEP (PART OF 4) |
|
2009-2013 |
|
| 006 |
25971281 |
STEP, ASST |
CK109 (06-36) (BRS) |
2009-2013 |
02 |
| 007 |
15872198 |
BOLT, ASST STEP FIN CVR |
CK1 (06-36) (BRS) |
2009-2013 |
04 |
| 008 |
11610602 |
BOLT, ASST STEP SUPT BR |
CK109 (06-36) (BRS) |
2009-2013 |
08 |
| 009 |
11569755 |
BOLT, HEX W/CON WA, M8X1.25X20, 10 THD, 24 OD, 8.8, GMW4205, M-PT (ASST STEP) |
|
2009-2013 |
08 |
| 010 |
20784802 |
BRACKET, ASST STEP CTR (INCLS 16) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 010 |
20784803 |
BRACKET, ASST STEP CTR (INCLS 16) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 011 |
15932169 |
SHIELD, ASST STEP (RR) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 011 |
15932170 |
SHIELD, ASST STEP (RR) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 012 |
15231167 |
NUT, ASST STEP (M6 I.D M12 O.D X 1.00 X 11.68) (INSERT) |
CK1, 2 (EXC MSL) |
2009-2013 |
04 |
| 012 |
25640265 |
NUT, ASST STEP (M8X1.25) (10.463) |
CK1, 2 (MSL) |
2009-2013 |
16 |
| 013 |
11570190 |
BOLT, ASST STEP SHLD (M4X0.7X10) |
CK109 (06-36) |
2009-2013 |
04 |
| 014 |
15872197 |
BOLT, ASST STEP BRKT (M6X1X17) |
CK1 (06-36) (BRS) |
2009-2013 |
04 |
| 015 |
11519125 |
BOLT, HEX W/CON WA, M6X1X26, 15.16 THD, 20 OD, 9.8, 6173M, MACH, 6175 ADH, MAT (ASST STEP SUPT) |
|
2009-2013 |
01 |
| 016 |
|
BRACE, ASST STEP FRT SUPT (BRACKET, MOTOR MODULE) (PART OF 10) |
|
2009-2013 |
|
| 017 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (ASST STEP BRKT) (ACDelco #11513599) |
|
2009-2013 |
02 |
| 018 |
25852622 |
MODULE, ASST STEP CONT |
CK1 (06-36) |
2009-2013 |
01 |
| 019 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ASST STEP) |
|
2009-2013 |
02 |
| 020 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/ CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 021 |
20784804 |
SHIELD, ASST STEP (MTR COVER) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 021 |
20784805 |
SHIELD, ASST STEP (MTR COVER) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 022 |
25971283 |
MOTOR, ASST STEP (MAY NEED TO ORDER SHIELD) |
CK1 (06-36) (BRS) |
2009-2013 |
01 |
| 022 |
25971282 |
MOTOR, ASST STEP (MAY NEED TO ORDER SHIELD) |
CK1 (06-36) (BRS) |
2009-2013 |
01 |
| 023 |
11570192 |
BOLT, ASST STEP SUPT |
CK109 (06-36) (BRS) |
2009-2013 |
04 |
| 024 |
11570193 |
BOLT, ASST STEP SUPT (M8X1.25X20) (SCREW-INT HEX HD) |
CK109 (06-36) (BRS) |
2009-2013 |
02 |
| 025 |
25799851 |
SUPPORT, ASST STEP (WEDGE) |
CK109 (06-36) (BRS) |
2009-2013 |
02 |
| 026 |
15932167 |
SHIELD, ASST STEP (FRT) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 026 |
15932168 |
SHIELD, ASST STEP (FRT) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 027 |
22778161 |
BRACKET, ASST STEP (BRKT USED ON FRT END OF MOTORIZED ASSIST STEP) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 027 |
22778160 |
BRACKET, ASST STEP (BRKT USED ON FRT END OF MOTORIZED ASSIST STEP) |
CK109 (06-36) (BRS) |
2009-2013 |
01 |
| 028 |
11570194 |
PLATE, ASST STEP CTR BRKT ANC |
CK109 (06-36) (BRS) |
2009-2013 |
04 |
