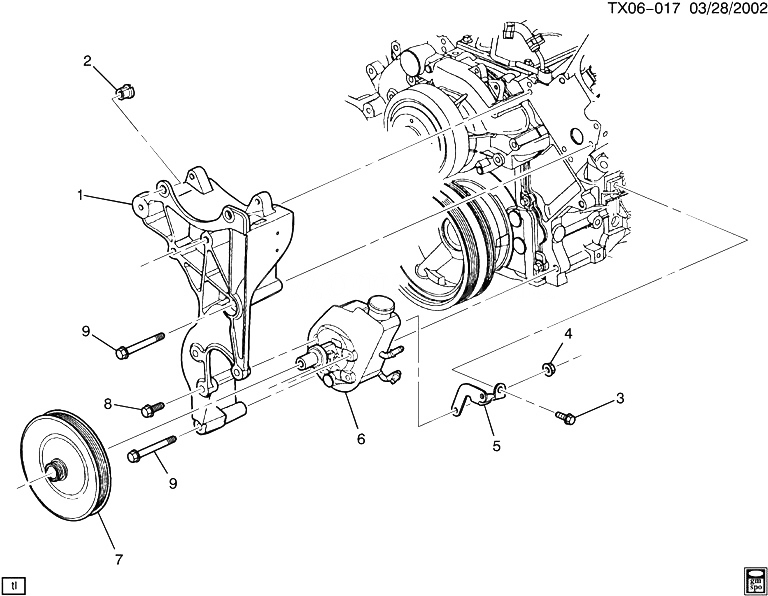

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12554030 |
BRACKET, GEN P/S PUMP (INCLS 2) (INCLS SPACER) |
CK1 (L94) |
2010-2013 |
01 |
| 002 |
12550090 |
SPACER, GEN P/S PUMP BRKT (PART OF 1) |
CK1 (L20, L94) |
2010-2013 |
02 |
| 002 |
12550090 |
SPACER, GEN P/S PUMP BRKT (PART OF 1) (2.277) |
CK1 (L20, L94) |
2010-2013 |
02 |
| 003 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/S PUMP RR BRKT) |
|
2007-2013 |
01 |
| 004 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (P/S PUMP RR BRKT) (2.383) |
|
2007-2013 |
02 |
| 005 |
12554032 |
BRACKET, P/S PUMP RR |
CK1, 2, 3 (LC9, LFT, LMG, L20, L9H, L94) |
2011-2013 |
01 |
| 006 |
|
PUMP, P/S (SEE GROUP 06.000 STEERING PUMP ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
12605677 |
PULLEY, P/S PUMP (PHY ID 4004 5677) |
CK1 (LC9, LFT, LMG, LU3, L20, L9H, L94) |
2011-2013 |
01 |
| 008 |
11515767 |
BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (P/S PUMP) (T/W 12345493) |
|
2007-2013 |
03 |
| 009 |
11519214 |
BOLT, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) |
|
2007-2013 |
04 |
