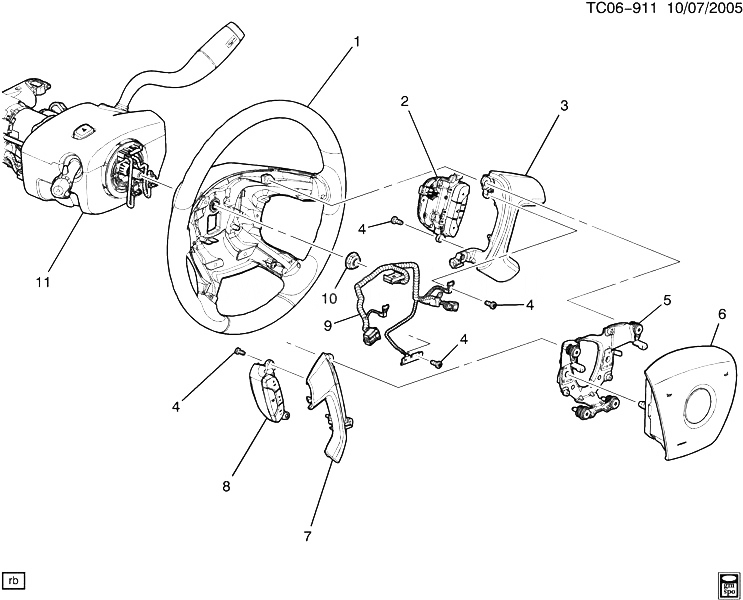

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22947788 |
WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) |
CK1 (K34, N30, UK3, Z75, 39I) (EXC HP2, KA9, UVD) |
2009-2013 |
01 |
| 001 |
22947792 |
WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) |
CK1 (K34, N30, UK3, UVD, Z75, 39I) (EXC HP2) |
2009-2012 |
01 |
| 001 |
22947779 |
WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) |
CK1 (HP2, K34, N30, ULT, Z75, 19I) |
2012-2013 |
01 |
| 001 |
25853073 |
WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) |
CK1 (K34, N30, UK3, Z75, 19I) (EXC HP2, KA9) |
2009-2012 |
01 |
| 001 |
25853074 |
WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) |
CK1 (K34, N30, UK3, Z75, 39I) (EXC HP2, KA9) |
2009-2013 |
01 |
| 001 |
25853065 |
WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) |
CK1 (HP2, K34, N30, Z75, 19I) (EXC ULT) |
2009-2013 |
01 |
| 001 |
25853066 |
WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) |
CK1 (HP2, K34, N30, Z75, 39I) |
2009-2013 |
01 |
| 002 |
25851952 |
SWITCH, RDO CONT (PART OF 1) (EBONY) |
CK1 (K34, N30, UK3, Z75, 19I) (EXC HP2) |
2009-2013 |
01 |
| 002 |
25851952 |
SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) |
CK1 (K34, N30, UK3, Z75, 19I) (EXC HP2) |
2009-2013 |
01 |
| 002 |
25851956 |
SWITCH, RDO CONT (PART OF 1) (COCOA) |
CK1 (HP2, K34, N30, Z75, 39I) |
2009-2013 |
01 |
| 002 |
25851956 |
SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) |
CK1 (HP2, K34, N30, Z75, 39I) |
2009-2013 |
01 |
| 002 |
25851952 |
SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) |
CK1 (HP2, K34, N30, Z75, 19I) |
2009-2013 |
01 |
| 002 |
25851952 |
SWITCH, RDO CONT (PART OF 1) (EBONY) |
CK1 (HP2, K34, N30, Z75, 19I) |
2009-2013 |
01 |
| 003 |
25826421 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (SOLITARE) |
CK1 |
2008-2013 |
01 |
| 003 |
15255102 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) |
CK1 (K34, N30, UK3, Z75, 19I, 39I) |
2009-2013 |
01 |
| 004 |
15257875 |
BOLT, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) |
CK1, 2, 3 |
2007-2013 |
04 |
| 005 |
15255031 |
CONTACT, STRG WHL HORN (PART OF 1) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
20928246 |
AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) |
CK1 (06-36) (Y91, Z75, 19I) |
2011-2012 |
01 |
| 006 |
20928246 |
AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) (16.712) |
CK1 (06-36) (Y91, Z75, 19I) |
2011-2012 |
01 |
| 006 |
20928247 |
AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) |
CK1 (06-36) (Y91, Z75, 39I) |
2011-2012 |
01 |
| 006 |
20928247 |
AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) (16.712) |
CK1 (06-36) (Y91, Z75, 39I) |
2011-2012 |
01 |
| 006 |
22762393 |
AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) |
CK1 (06) (ULT, Y91, Z75, 19I) |
2012-2012 |
01 |
| 007 |
15255100 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) |
CK1 (K34, N30, UK3, Z75, 19I, 39I) |
2010-2013 |
01 |
| 008 |
15824109 |
SWITCH, CRCONT (PART OF 1) (EBONY) (ACDelco #D1958E) |
CK1 (K34, N30, UK3, Z75, 19I) (EXC KA9) |
2007-2013 |
01 |
| 008 |
15824106 |
SWITCH, CRCONT (PART OF 1) (COCOA) (ACDelco #15824106) |
CK1 (K34, N30, UK3, Z75, 39I) (EXC HP2, KA9) |
2009-2012 |
01 |
| 008 |
15824109 |
SWITCH, CRCONT (PART OF 1) (EBONY) (ACDelco #D1958E) |
CK1 (HP2, K34, N30, Z75, 19I) |
2012-2013 |
01 |
| 009 |
|
HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) |
|
2007-2012 |
|
| 010 |
11609658 |
NUT, STRG WHL (M14X1.5-6H THD) (NON-FLANGED NYLON INSERT HEX) (6.518) |
CK1, 2, 3 |
2007-2013 |
01 |
| 011 |
|
COLUMN, STRG (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
