| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

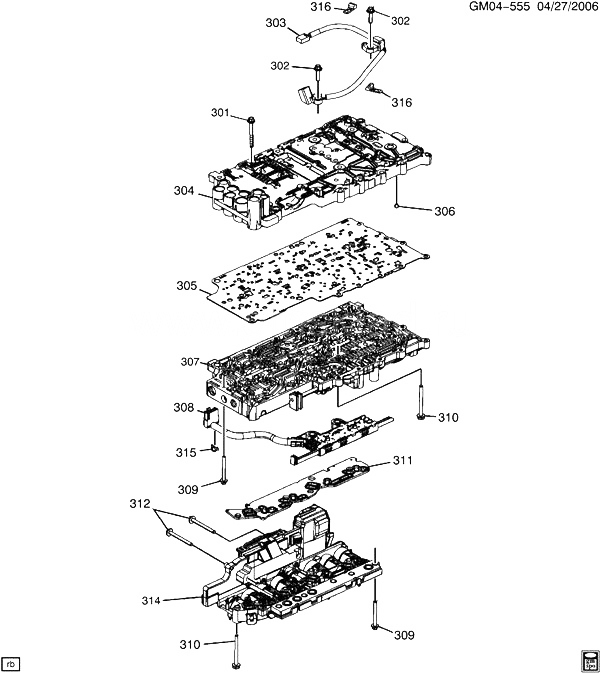

| 301 |
24227130 |
BOLT, C/VLV UPR BODY (M5X0.8X36) |
CK1 (MYC) |
2007-2013 |
12 |
| 302 |
24225398 |
BOLT, A/TRNS INPUT OUTPUT SPD SEN (M6 X 1.0 X 20) |
CK1, 2, 3 |
2007-2013 |
02 |
| 303 |
24265535 |
SENSOR, A/TRNS INPUT OUTPUT SPD (EXCEPT 2012 AND FORWARD MYC AND MYD TRANS BROADCAST CODES 2CXA, 2CSA, 2CWA, 2C3A, 2CCA, 2CJA, 2DAA, 2DDA, 2D2A, 2D1A, 2DGA, 2DVA, 2D3A, 2DFA, 3CCA, 3CKA, 3DNA, ) (INCLS 316) (KIT/NON-UNIGEAR) (4.329) (ACDelco #24265535) |
CK1 (MYC) (1ST DES) |
2012-2012 |
01 |
| 303 |
24265535 |
SENSOR, A/TRNS INPUT OUTPUT SPD (EXCEPT 2012 AND FORWARD MYC AND MYD TRANS BROADCAST CODES 2CXA, 2CSA, 2CWA, 2C3A, 2CCA, 2CJA, 2DAA, 2DDA, 2D2A, 2D1A, 2DGA, 2DVA, 2D3A, 2DFA, 3CCA, 3CKA, 3DNA, ) (INCLS 316) (KIT/NON-UNIGEAR) (ACDelco #24265535) (3DKA, |
CK1 (MYC) (1ST DES) |
2012-2012 |
01 |
| 303 |
24265536 |
SENSOR, A/TRNS INPUT OUTPUT SPD (FOR 2012 AND FORWARD MYC AND MYD TRANS BROADCAST CODES 2CXA, 2CSA, 2CWA, 2C3A, 2CCA, 2CJA, 2DDA, 2DDA, 2D2A, 2D1A, 2DGA, 2DVA, 2D3A, 2DFA, 3CCA, 3CKA, 3DNA, ) (INCLS 316) (KIT/UNIGEAR/STEP) (4.329) (ACDelco #24265536) ( |
CK1 (MYC) (2ND DES) |
2012-2012 |
01 |
| 303 |
24265536 |
SENSOR, A/TRNS INPUT OUTPUT SPD (FOR 2012 AND FORWARD MYC AND MYD TRANS BROADCAST CODES 2CXA, 2CSA, 2CWA, 2C3A, 2CCA, 2CJA, 2DDA, 2DDA, 2D2A, 2D1A, 2DGA, 2DVA, 2D3A, 2DFA, 3CCA, 3CKA, 3DNA, ) (INCLS 316) (KIT/UNIGEAR/STEP) (ACDelco #24265536) (3DKA, 3D |
CK1 (MYC) (2ND DES) |
2012-2012 |
01 |
| 304 |
24240961 |
BODY, C/VLV UPR (ACDelco #24240961) |
CK1 (MYC) |
2010-2013 |
01 |
| 305 |
24261077 |
PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) |
CK1 (MYC) |
2010-2013 |
01 |
| 306 |
96020431 |
VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) |
CK1 (MYC) |
2007-2013 |
07 |
| 307 |
24251431 |
BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) |
CK1 (MYC) |
2010-2013 |
01 |
| 308 |
24242938 |
SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) (ACDelco #24242938) |
CK1 (MYC) |
2007-2013 |
01 |
| 309 |
24240848 |
BOLT, C/VLV LWR BODY (MX50.8X45.0) |
CK1 (MYC) |
2007-2013 |
10 |
| 310 |
24224822 |
BOLT, C/VLV LWR BODY (M5X0.8X55) |
CK1 (MYC) |
2007-2013 |
06 |
| 311 |
24236934 |
PLATE KIT, CONT SOL VLV FLTR (ACDelco #24236934) |
CK1, 2, 3 (MYC) |
2007-2013 |
01 |
| 312 |
24240845 |
BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) |
CK1 (MYC) |
2007-2013 |
02 |
| 314 |
24257213 |
VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS TCM (NOT A CONTROL VAL VE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS) (CODE 2D2A, |
CK1 (MYC) |
2012-2012 |
01 |
| 315 |
24236233 |
CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) |
CK1, 2, 3 |
2007-2013 |
01 |
| 316 |
24236504 |
CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) |
CK1, 2, 3 |
2009-2013 |
02 |
| 316 |
24265080 |
CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (BLACK) (UNIGEAR) |
CK1 (MYC) |
2012-2013 |
02 |
