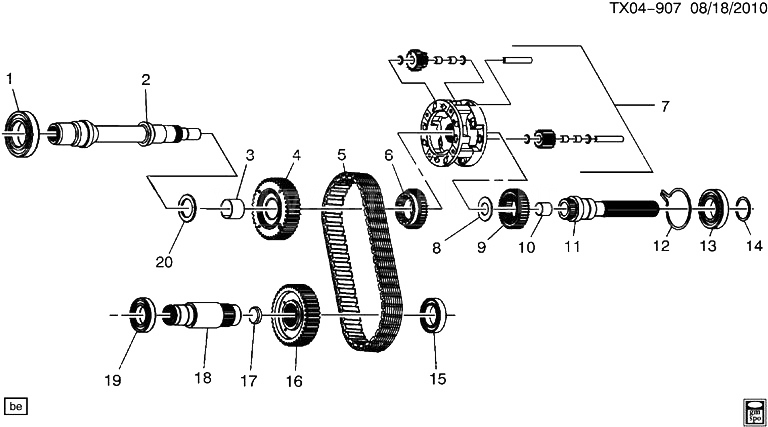

(TX04-907) 2007-2013 K1 РАЗДАТОЧНАЯ КОРОБКА (NR3) PART 2 ВНУТРЕННИЕ ДЕТАЛИ-AWD (BORG WARNER 4485) CADILLAC - ESCALADE ESV (AWD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88984507 BEARING, TRFER CASE INPUT SHF K1 (MYC, NR3) 2007-2013 01
002 19132803 SHAFT, TRFER CASE INPUT K1 (MYC, NR3) 2007-2013 01
003 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (PART OF 4) (ACDelco #19168732) K1 (MYC, NR3) 2007-2013 01
004 19258136 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV (INCLS 3) K1 (MYC, NR3) 2007-2012 01
005 19151772 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (MYC, NR3) 2007-2013 01
006 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) K1 (MYC, NR3) 2007-2013 01
007 19210917 CARRIER, FRT/RR DRV DIFF K1 (MYC, NR3) 2007-2013 01
008 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR K1 (MYC, NR3) 2007-2013 01
009 88984524 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) K1 (MYC, NR3) 2007-2013 01
010 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 11) K1 (MYC, NR3) 2007-2013 01
011 19178328 SHAFT, TRFER CASE RR OUTPUT (INCLS 10, 13, 14) K1 (MYC, NR3) 2007-2013 01
012 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (4.535) K1 (MYC, NR3) 2007-2013 01
013 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (PART OF 11) K1 (MYC, NR3) 2007-2013 01
014 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (PART OF 11) (41MM I.D.) (ACDelco #88984493) K1 (MYC, NR3) 2007-2013 01
015 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT K1 (MYC, NR3) 2007-2013 02
016 19258135 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN K1 (MYC, NR3) 2007-2013 01
017 89059602 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 18) K1 (MYC, NR3) 2007-2013 01
018 19153149 SHAFT, TRFER CASE FRT OUTPUT (INCLS 17) K1 (MYC, NR3) 2007-2013 01
019 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT K1 (MYC, NR3) 2007-2013 02
020 88984518 WASHER, TRFER CASE FRT OUTPUT SHF DRVN SPKT THR K1 (MYC, NR3) 2007-2013 01
