| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

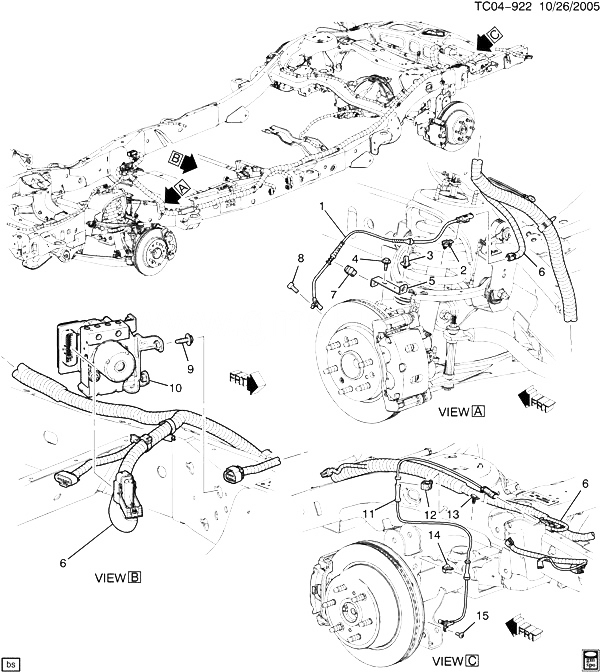

| 001 |
22740468 |
SENSOR KIT, FRT WHL SPD (INCLS 2, 3, 7) (MATING CONN W/LEADS USE 19149296) (ACDelco #22740468) |
CK1 |
2012-2013 |
02 |
| 002 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2007-2013 |
02 |
| 003 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2007-2013 |
02 |
| 004 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE) |
|
2007-2013 |
02 |
| 005 |
15133409 |
BRACKET, FRT WHL SPD SEN |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2013 |
02 |
| 006 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (GRAY) (10.00MM) (HOLDS (1)10.5/9.5 GROMMET) (PRONG FITS 13.25/12.75X7.5 SLOT) |
CK1 |
2007-2013 |
02 |
| 008 |
15960191 |
BOLT, WHL SPD SEN (M6X1X12) |
CK1, 2, 3 |
2007-2013 |
02 |
| 009 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (BRK PRESS MOD VLV BRKT) (ACDelco #11570082) |
|
2007-2013 |
03 |
| 010 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 011 |
20938122 |
SENSOR, RR WHL SPD (INCLS 12-14) (ACDelco #20938122) |
CK1 (06-36) |
2007-2013 |
02 |
| 012 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2013 |
|
| 013 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2013 |
|
| 014 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2013 |
|
| 015 |
11570519 |
SCREW, PAN HD, M6X1X13, 10 THD 12 OD, 9.8, PHOS OIL.W/ADH (RR WHL SPD SEN) |
|
2007-2013 |
02 |
