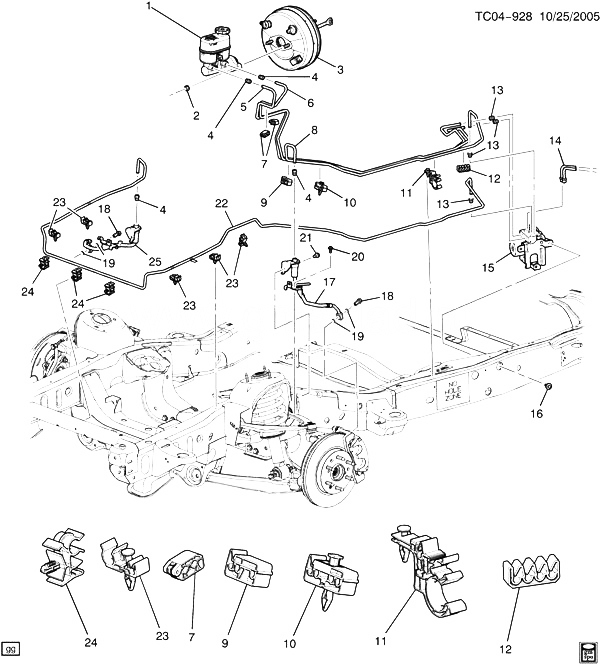

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
11517996 |
NUT, BRK M/CYL (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2007-2013 |
02 |
| 003 |
|
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
11518522 |
NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (PART OF 5, 6) |
|
2007-2013 |
02 |
| 005 |
19181732 |
PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) (ACDelco #19181732) |
CK1, 2 |
2009-2013 |
AR |
| 006 |
19181732 |
PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) (ACDelco #19181732) |
CK1 |
2009-2013 |
AR |
| 007 |
15194368 |
CLIP, RR BRK FRT PIPE (BLACK) (9.2X33.1X15) (HOLDS (2)7.94 LINES) (NYLON) (4.685) |
CK1 (06-36) (JD9) |
2009-2013 |
02 |
| 008 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) |
|
2007-2013 |
AR |
| 009 |
11570231 |
CLIP, FRT BRK PIPE (BLACK) (53.66X22.53X17.0) (HOLDS (1)6.65, (2)8.35 DIA TUBES) (NYLON) |
CK1 (06-36) (JD9) |
2009-2013 |
01 |
| 010 |
11570234 |
CLIP, FRT BRK PIPE (BLACK) (HOLDS (2)6.65, (2)8.35 DIA TUBES) (NYLON) |
CK1 (06-36) (JD9) |
2009-2013 |
01 |
| 011 |
11570232 |
CLIP, FRT BRK PIPE (BLACK) (12DIA X22/101.4X17) (HOLDS (2)6.65, (2)8.35, (1)5.0 TUBES, (1)17 (1)33.0 HARNESSES) |
CK1 (06-36) (JD9) |
2009-2013 |
01 |
| 012 |
11570528 |
CLIP, FRT BRK PIPE (4.26X22X15) (HOLDS (2) 8.20 BRK LINES) |
CK1 (06-36) (JD9) |
2009-2013 |
01 |
| 013 |
11562075 |
NUT, FRT BRK FRT PIPE (PART OF 5, 6) (M12X1.5X17) (INVERTED FLARE) |
CK1, 2, 3 |
2011-2013 |
01 |
| 014 |
|
PIPE, BRK (SEE GROUP 04.000 BRAKE LINES INTERMEDIATE FOR DETAILED ILLUSTRATED VIEW) (3/16 X 16) (BULK TUBING) (NYLON COATING) |
|
2007-2013 |
|
| 015 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 016 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (ELEK BRK CONT MDL BRKT) |
|
2007-2013 |
03 |
| 017 |
15923783 |
HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1515) |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2013 |
01 |
| 018 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 17, 25) |
|
2011-2013 |
AR |
| 019 |
|
WASHER, FRT BRK HOSE (PART OF 17, 25) |
|
2007-2013 |
|
| 020 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE) |
|
2007-2013 |
02 |
| 021 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) |
|
2007-2013 |
02 |
| 022 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) |
|
2007-2013 |
AR |
| 023 |
11561421 |
CLIP, FRT BRK FRT PIPE (HOLDS (1)6.65 DIA TUBE, (1)15.0 DIA HARNESS, FITS 6 DIA HOLE) |
CK1 (06-36) |
2007-2013 |
05 |
| 024 |
11561422 |
CLIP, FRT BRK FRT PIPE (HOLDS (1)6.65 DIA TUBE, (1)15.0 DIA HARNESS, FITS 8 DIA HOLE) |
CK1 (06-36) |
2007-2013 |
03 |
| 025 |
15923784 |
HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1516) |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2013 |
01 |
