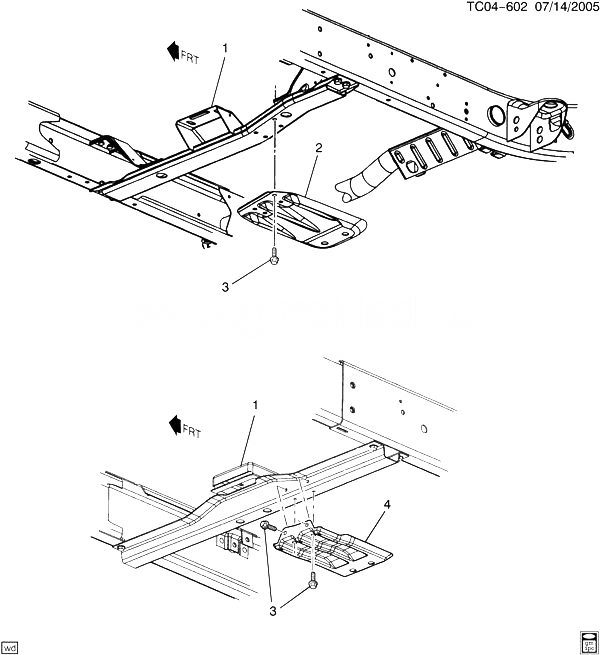

(TC04-602) 2011-2013 K1 КРОНШТЕЙН РАЗДАТОЧНОЙ КОРОБКИ (NZZ) CADILLAC - ESCALADE ESV (AWD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | CROSSMEMBER, TRANS SUPT (SEE GROUP 04.000 FRAME/TRANSMISSION SUPPORTS FOR DETAILED ILLUSTRATED VIEW) (HEIGHT=123MM) | 2007-2013 | |||
| 002 | 20922755 | SHIELD, TRFER CASE | K1 (NZZ) | 2007-2013 | 01 |
| 003 | 11518341 | BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (TRFER CASE SHLD) | 2007-2013 | 04 |
