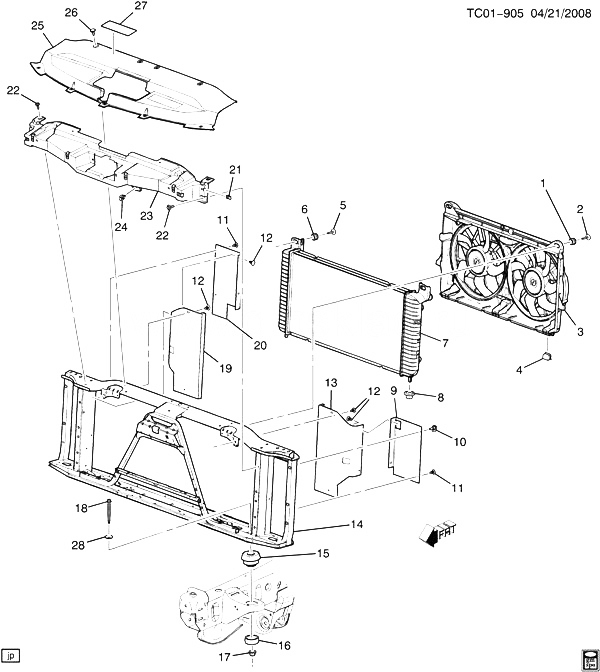

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15780790 |
INSULATOR, ENG COOL FAN SHRD (UPPER) |
CK1 |
2007-2013 |
02 |
| 002 |
11516931 |
BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (ENG COOL FAN) |
|
2007-2013 |
02 |
| 003 |
|
FAN, ENG COOL (W/ SHRD) (SEE GROUP 01.000 ENGINE COOLANT FAN FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 004 |
15780791 |
INSULATOR, ENG COOL FAN SHRD (LOWER) |
CK1 |
2007-2013 |
03 |
| 005 |
11516931 |
BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) |
|
2007-2013 |
02 |
| 006 |
|
INSULATOR, RAD UPR (PART OF 7) |
|
2011-2013 |
|
| 007 |
|
RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (INCLS 6, 8) (CODE APC, ASA, ATS, ADP, DEG, FAA, CAL, AJN, BBL, CCM, AAF4, 0117) |
|
2007-2013 |
|
| 008 |
89019121 |
INSULATOR, RAD LWR (PART OF 7) |
CK1 |
2007-2013 |
02 |
| 009 |
10392941 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2007-2013 |
01 |
| 010 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (WRG HARN) |
|
2007-2013 |
01 |
| 011 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RAD SUPT BFL) |
|
2007-2013 |
04 |
| 012 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 13, 19) |
|
2007-2013 |
04 |
| 013 |
15208497 |
BAFFLE, RAD AIR (INCLS 12) |
CK1, 2 (06) (LC9, LMG, L20, L94, L96) |
2011-2013 |
01 |
| 014 |
|
SUPPORT, RAD (SEE GROUP 01.000 RADIATOR SUPPORT ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 015 |
15837582 |
CUSHION, BODY MT UPR FRT (BROWN) (1.270) |
CK109, 209 (06-36) |
2010-2013 |
02 |
| 016 |
15837583 |
CUSHION, BODY MT LWR FRT (WHITE) (1.270) |
CK109 (06-36) |
2007-2013 |
02 |
| 017 |
03537772 |
NUT, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (BODY MT) (8.917) |
|
2007-2013 |
02 |
| 018 |
11562547 |
BOLT, HFH, M12X1.75X135, 100 THD, 24.7 OD, GMW25 (10.9) STL, GM 7112M, MACH (BODY MT) |
|
2007-2013 |
02 |
| 019 |
15208496 |
BAFFLE, RAD AIR (INCLS 12) |
CK1, 2 (06) (LC9, LMG, LZ1, L20, L94, L96) |
2011-2013 |
01 |
| 020 |
10392942 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2007-2013 |
01 |
| 021 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 23) |
|
2007-2013 |
08 |
| 022 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT GRL SUPT REINF) |
|
2007-2013 |
08 |
| 023 |
15904442 |
BRACKET, FRT GRL UPR (INCLS 21, 24) |
CK1 (Z75) |
2007-2013 |
01 |
| 024 |
22581725 |
CLIP, HOOD PRIM LAT REL CBL (PART OF 23) (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145) |
CK1 (Z75) |
2007-2013 |
01 |
| 025 |
22737375 |
BAFFLE, RAD AIR UPR (INCLS 27) |
K109 (06-36) (Z75) (EXC ULT, WHN) |
2012-2013 |
01 |
| 025 |
22737378 |
BAFFLE, RAD AIR UPR (INCLS 27) |
CK1 (WHN, Z75) |
2012-2013 |
01 |
| 025 |
22737378 |
BAFFLE, RAD AIR UPR (INCLS 27) |
CK107, 109 (06) (ULT, Z75) (EXC V76) |
2012-2013 |
01 |
| 026 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (RAD AIR UPR BFL (PUSH IN)) |
|
2007-2013 |
06 |
| 027 |
22737381 |
LABEL, A/C REFRIG WRNG (PART OF 25) |
CK1, 2, 3 |
2011-2013 |
01 |
| 028 |
11562546 |
WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) |
|
2007-2013 |
02 |
