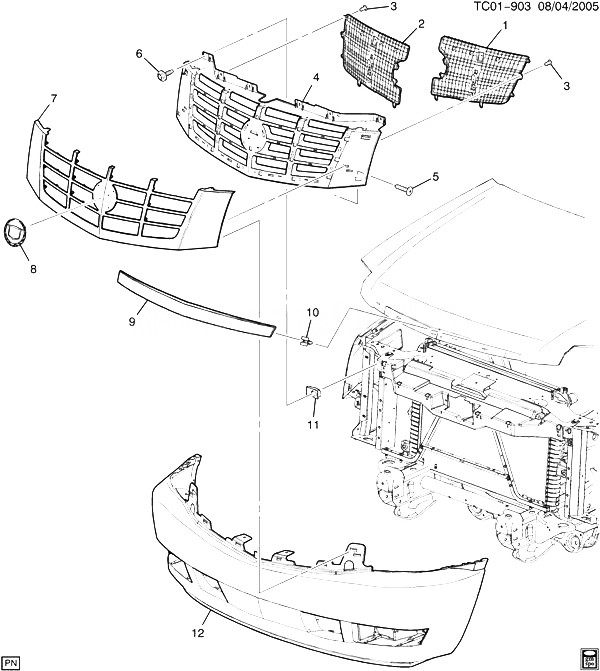

(TC01-903) 2009-2013 CK1(06) РЕШЕТКА РАДИАТОРА (CADILLAC Z75, PLATINUM EDITION ULT, HEADLAMP T84) CADILLAC - ESCALADE ESV (AWD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 INSERT, FRT GRL (PART OF 7) 2009-2013
002 INSERT, FRT GRL (PART OF 7) 2009-2013
003 RIVET, FRT GRL (PART OF 7) 2009-2013
004 GRILLE, FRT INR (PART OF 7) 2009-2013
005 25705182 BOLT, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249) CK1 (06-36) 2009-2013 AR
006 11610055 BOLT, HWASH, M6X1X23 (FRT BPR UPR FASCIA) 2009-2013 06
007 20905198 GRILLE, FRT (INCLS 1-4, 8) (MAGNA STEEL) CK1 (06-36) (GHA, Z75) 2011-2013 00
007 25841844 GRILLE, FRT (INCLS 1-4, 8) (CARBON FLASH) CK1 (06) (Z75, 58U) 2011-2013 01
007 20957095 GRILLE, FRT (INCLS 1-4, 8) (CLARET) CK1 (06) (Z75, 89U) 2012-2013 01
007 20957108 GRILLE, FRT (INCLS 1-4, 8) (SILVER) CK1 (06-36) (GAN, Z75) 2012-2013 01
007 20963234 GRILLE, FRT (INCLS 1-4, 8) (BLUE) CK1 (06-36) (GTS, Z75) 2012-2012 01
007 20946007 GRILLE, FRT (INCLS 1-4, 8) (PEARL) CK1 (06) (GKP, Z75) 2011-2013 01
007 22860569 GRILLE, FRT (INCLS 1-4, 8) (WHITE) CK1 (06-36) (Z75, 98U) 2011-2013 01
007 22860570 GRILLE, FRT (INCLS 1-4, 8) (BLACK) CK1 (06-36) (Z75, 41U) 2011-2013 01
007 22860571 GRILLE, FRT (INCLS 1-4, 8) (GOLD) CK1 (06-36) (Z75, 51U) 2011-2012 01
007 20824262 GRILLE, FRT (INCLS 1-4, 8) (LABYRINTH) CK1 (06) (GGW, T84, Z75) (EXPORT) 2011-2012 01
007 22860581 GRILLE, FRT (INCLS 1-4, 8) (GREYSTONE) CK1 (06) (T84, Z75, 16U) (EXPORT) 2012-2012 01
008 22860587 EMBLEM, FRT GRL (PART OF 7) (WREATH/CREAST) CK1 (06) (T84, Z75) (EXPORT) 2009-2013 01
009 15907251 MOLDING, HOOD FRT (INCLS 10) (CHROME) CK1 (06-36) (T84, ULT, Z75) (EXPORT) 2009-2013 01
010 11561788 CLIP, 13X15X12, 1.5 PNL, 1050, 6280M (PART OF 9) 2009-2013 07
011 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT GRL UPR BRKT) 2009-2013 08
012 FASCIA, FRT BPR (SEE GROUP 07.000 BUMPER/FRONT FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) 2009-2013
