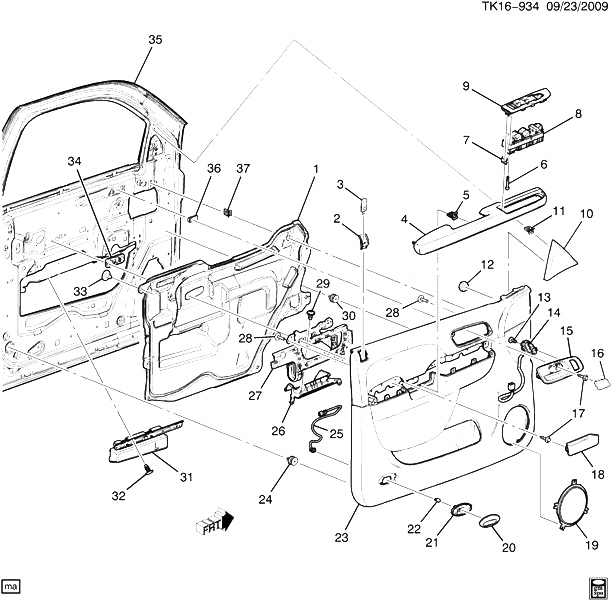

(TK16-934) 2010-2013 CK1(06-36) ОТДЕЛКА ДВЕРИ/SIDE FRONT-DRIVER (CADILLAC Z75) CADILLAC - ESCALADE ESV (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 15844620 KNOB, FRT S/D LKG ROD (COCOA) CK1 (41I) 2010-2013 02
003 20785356 KNOB, FRT S/D LKG ROD (CASHMERE) CK1 (Z75, 39I) 2010-2013 02
004 ARMREST, FRT S/D (PART OF 23) (INCLS 5) 2010-2013
005 RETAINER, FRT S/D A/RST (PART OF 4, 23) 2010-2013
006 BOLT, FRT S/D WDO SW BZL (PART OF 9) 2010-2013
007 10410811 CLIP, FRT S/D C/LP (PART OF 9) (10.777) CK1, 2, 3 2010-2013 02
008 20835555 SWITCH, FRT S/D WDO CONT (PART OF 9) (ACDelco #D1412H) CK1 (Z75) 2010-2011 01
009 20877684 PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) CK1 (Z75, 19I) (EXC ULT) 2010-2013 01
009 22769988 PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (BLACK) CK1 (ULT, Z75, 19I) 2010-2013 01
009 20877686 PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (COCOA) CK1 (ULT, Z75, 41I) 2010-2013 01
009 20980438 PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (MOCHA) CK1 (Z75, 39I) (EXC ULT) 2010-2013 01
010 25857283 PANEL, FRT S/D UPR FRT TR (INCLS 11) (COCOA) CK1 (Z75, 41I) 2010-2013 01
010 25906770 PANEL, FRT S/D UPR FRT TR (INCLS 11) (CASHMERE) CK1 (Z75, 39I) 2010-2013 01
010 25857282 PANEL, FRT S/D UPR FRT TR (INCLS 11) (EBONY) CK1 (Z75, 19I) 2010-2013 01
011 25870922 RETAINER, FRT S/D UPR FRT T/PNL (PART OF 10) CK1, 2, 3 2010-2013 02
012 13500192 SEAL, FRT S/D (PART OF 23) (LOC PIN SEAL) (INCLS RIGHT LEFT) CK1, 2, 3 2010-2013 02
013 15905947 BOLT, FRT S/D T/PNL CK1, 2, 3 2010-2013 02
014 25822439 SWITCH, D/SEAT ADJR MEMORY CK1 (06-36) (Z75) 2010-2013 01
015 15920707 HANDLE, FRT S/D I/S (PART OF 23) (EBONY) (W/CHROME HDL) (W/ HOLE FOR MEMORY SEAT SWITCH) CK1 (06-36) (Z75, 19I) 2010-2011 01
015 22855631 HANDLE, FRT S/D I/S (PART OF 23) (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2013 01
015 22855632 HANDLE, FRT S/D I/S (PART OF 23) CK1 (06) (ULT, Z75) 2010-2013 01
016 25906776 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2013 01
001 25889237 DEFLECTOR, FRT S/D WAT (PART OF 23) CK1 (06-36) (YE9) 2010-2013 01
002 COVER, FRT S/D LKG ROD OPG (PART OF 23) 2010-2013
003 15844616 KNOB, FRT S/D LKG ROD (EBONY) CK1, 2, 3 (19I, 31I, 84I, 85I) 2010-2011 02
016 25897910 COVER, FRT S/D I/S HDL BZL FIN (COCOA) CK1 (06) (39I, 41I) 2010-2013 01
016 25897906 COVER, FRT S/D I/S HDL BZL FIN (EBONY) CK1, 2 (06) (19I) 2010-2013 01
017 11570136 BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) 2010-2013 06
018 20934187 COVER, FRT S/D T/PNL (EBONY) CK1 (06-36) (19I) 2010-2013 02
018 20934190 COVER, FRT S/D T/PNL (LINEN) CK1 (06) (Z75, 41I) 2010-2013 02
018 22874310 COVER, FRT S/D T/PNL (CASHMERE) CK1 (06-36) (33I, 39I) 2010-2013 02
019 GRILLE, RDO FRT SPKR (PART OF 23) 2010-2013
020 LENS, FRT S/D WRNG LP (PART OF 21) 2010-2013
021 15876516 LAMP, CTSY (INCLS 20, 22, 25) (FRT S/D) CK1 (06-36) (Z75) 2010-2013 01
022 09425542 BULB, LAMP #168 (PART OF 21) (ACDelco #L168) 2010-2013 01
023 22818536 PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12, 15, 19, 24, 26-30, 33, 37) (EBONY) CK1 (06-36) (Z75, 19I) (EXC XA1) 2010-2011 01
023 22818547 PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12, 15, 19, 24, 26-30, 33, 37) (LINEN) CK1 (06) (ULT, Z75, 41I) 2010-2013 01
023 22818537 PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12, 15, 19, 24, 26-30, 33, 37) (CASHMERE) CK1 (06-36) (Z75, 39I) (EXC XA1) 2010-2011 01
024 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 23) 2010-2013 07
025 HARNESS, FRT S/D CTSY WRNG LP P/W WRG (PART OF 21) 2010-2013
026 COVER, FRT S/D A/RST OPG (PART OF 23) 2010-2013
027 BRACKET, FRT S/D A/RST (PART OF 23) 2010-2013
028 11569994 BOLT, FRT S/D I/S HDL (PART OF 23) (M4.2X1.41X16) (16.115) CK1 (06) (ULT, Z75) 2010-2013 02
029 BOLT, FRT S/D WDO UPR W/STR RET (PART OF 23) 2010-2013
030 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 23) 2010-2013 04
031 20928037 ABSORBER, FRT S/D OTR PNL ENGY (INCLS 32) CK1, 2 (EXC E29) 2011-2013 01
032 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (PART OF 31) 2010-2013 AR
033 15952332 RETAINER, FRT S/D WAT DFL (PART OF 23) (15MM) (16.165) CK1, 2, 3 2010-2013 03
034 11570280 NUT, FRT S/D TR PNL CK1, 2, 3 2010-2013 01
035 DOOR, FRT SI (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
036 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D I/S HDL) 2010-2013 02
037 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 23) 2010-2013 01
