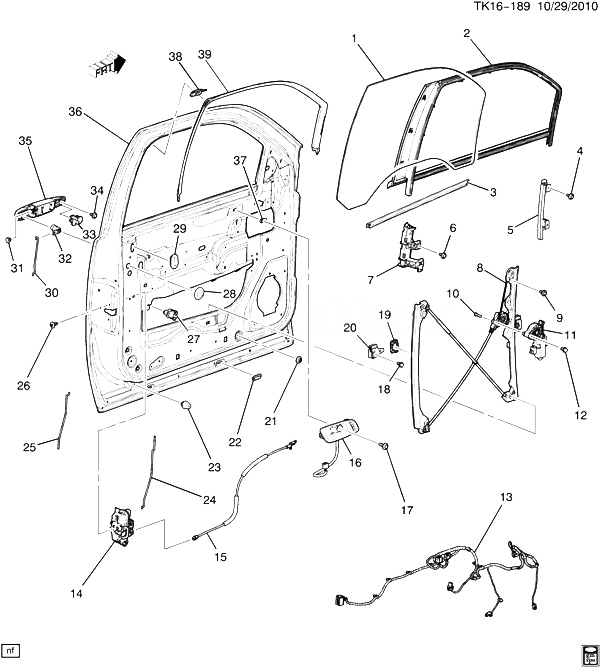

(TK16-189) 2011 CK1(06-36) ФУРНИТУРА ДВЕРИ/SIDE FRONT PART 2 (CADILLAC Z75) CADILLAC - ESCALADE ESV (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20776968 WINDOW, FRT S/D CK1 (06-36) (Z75) 2011-2011 01
001 20776969 WINDOW, FRT S/D CK1 (06-36) (Z75) 2011-2011 01
002 20972288 MOLDING, FRT S/D WDO RVL CK1 (Z75) 2011-2011 01
002 20972289 MOLDING, FRT S/D WDO RVL CK1 (Z75) 2011-2011 01
003 22832142 SEALING STRIP, FRT S/D WDO INR CK1, 2, 3 2011-2011 02
004 BOLT, FRT S/D WDO FRT W/STR RET 2011-2011
005 15901807 RETAINER, FRT S/D WDO W/STR FRT CK1 (Z75) 2011-2011 01
005 15901808 RETAINER, FRT S/D WDO W/STR FRT CK1 (Z75) 2011-2011 01
006 BOLT, FRT S/D WDO FRT W/STR RET (PART OF 7) 2011-2011
007 20971922 RETAINER, FRT S/D WDO W/STR RR (INCLS 6) (BOLTS ON W/TWO BOLTS) (FOR 1ST DES SEE 15876169) CK1, 2, 3 (2ND DES) 2011-2011 01
007 20971923 RETAINER, FRT S/D WDO W/STR RR (INCLS 6) (BOLTS ON W/TWO BOLTS) (FOR 1ST DES SEE 15876170) CK1, 2, 3 (2ND DES) 2011-2011 01
007 15876169 RETAINER, FRT S/D WDO W/STR RR (INCLS 6) (BOLTS ON W/ONE BOLT) (FOR 2ND DES SEE 20971922) CK1, 2, 3 (1ST DES) 2011-2011 01
007 15876170 RETAINER, FRT S/D WDO W/STR RR (INCLS 6) (BOLTS ON W/ONE BOLT) (FOR 2ND DES SEE 20971923) CK1, 2, 3 (1ST DES) 2011-2011 01
008 20971729 REGULATOR, FRT S/D WDO (INCLS 9-11, 18-20) (16.260) (ACDelco #20971729) CK1 (A31, Z75) 2011-2011 01
008 20971729 REGULATOR, FRT S/D WDO (INCLS 9-11, 18-20) (ACDelco #20971729) CK1 (A31, Z75) 2011-2011 01
008 20971730 REGULATOR, FRT S/D WDO (INCLS 9-11, 18-20) (16.260) (ACDelco #20971730) CK1 (A31, Z75) 2011-2011 01
008 20971730 REGULATOR, FRT S/D WDO (INCLS 9-11, 18-20) (ACDelco #20971730) CK1 (A31, Z75) 2011-2011 01
009 BOLT, FRT S/D WDO REG (PART OF 8) 2011-2011
010 BOLT, FRT S/D WDO REG MOT (PART OF 8) 2011-2011
011 MOTOR, FRT S/D WDO REG (PART OF 8) 2011-2011
012 11589177 BOLT, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (FRT S/D WDO REG) 2011-2011 02
013 20956783 HARNESS, FRT S/D DR WRG CK1 (06-36) (UQS) 2011-2011 01
013 20956786 HARNESS, FRT S/D DR WRG CK1 (06-36) (UQS) 2011-2011 01
013 20956788 HARNESS, FRT S/D DR WRG CK1, 2 (06) (UQ3) 2011-2011 01
013 22820553 HARNESS, FRT S/D DR WRG CK1, 2 (06) (UQA) 2011-2011 01
013 22820556 HARNESS, FRT S/D DR WRG CK1, 2 (06) (UQA) 2011-2011 01
013 22820555 HARNESS, FRT S/D DR WRG CK1, 2 (06) (UQ3) 2011-2011 01
014 20929437 LOCK, FRT S/D (INCLS 15) CK1, 2, 3 (AU3) (EXC AP3, AP8, AU0, AU8, YE9, 5B5) 2011-2011 01
014 22862025 LOCK, FRT S/D (INCLS 15) CK1, 2 (06) (AP3, AP8, AU5, ARL, AU3) 2011-2011 01
014 22862026 LOCK, FRT S/D (INCLS 15) (W/ACTUATOR CABLE) CK109 (06-36) (AU3, MSL) 2011-2011 01
014 22862027 LOCK, FRT S/D (INCLS 15) (W/ACTUATOR CABLE) CK109 (06-36) (AP3, AP8, AU3, AU5, MSL) 2011-2011 01
014 22862024 LOCK, FRT S/D (INCLS 15) CK1, 2 (06) (ARL, AU3) 2011-2011 01
015 CABLE, FRT S/D I/S HDL (PART OF 14) 2011-2011
016 15920704 HANDLE, FRT S/D I/S (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) (EXC ULT) 2011-2011 01
016 25906817 HANDLE, FRT S/D I/S (CASHMERE) CK1 (06-36) (Z75, 39I) 2011-2011 01
016 15920707 HANDLE, FRT S/D I/S (EBONY) (W/CHROME HDL) (W/ HOLE FOR MEMORY SEAT SWITCH) CK1 (06-36) (Z75, 19I) 2011-2011 01
016 22855631 HANDLE, FRT S/D I/S (CASHMERE) CK1 (06-36) (Z75, 39I) 2011-2011 01
016 22855634 HANDLE, FRT S/D I/S (CHROME HANDLE BEZEL) CK1 (06) (ULT, Z75) 2011-2011 01
016 22855632 HANDLE, FRT S/D I/S CK1 (06) (ULT, Z75) 2011-2011 01
017 11570136 BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) 2011-2011 06
018 BOLT, FRT S/D WDO REG GDE (PART OF 8) 2011-2011
019 CLIP, FRT S/D WDO REG (PART OF 8) 2011-2011
020 BRACKET, FRT S/D WDO REG GDE (PART OF 8) 2011-2011
021 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT S/D WDO REG) 2011-2011 04
022 15807100 PLUG, FRT S/D DRN HOLE CK1, 2, 3 2011-2011 04
023 15039965 BUMPER, RR S/D CK1, 2, 3 2011-2011 04
024 15175184 ROD, FRT S/D LKG (FOR VEHICLES BUILT BEFORE 01/01/11) (FOR 2ND DES SEE 20984749) CK1, 2, 3 (1ST DES) 2011-2011 01
024 20984749 ROD, FRT S/D LKG (FOR VEHICLES BUILT ON OR AFTER 01/01/11) (FOR 1ST DES SEE 15175184) CK1, 2, 3 (2ND DES) 2011-2011 01
024 20984750 ROD, FRT S/D LKG CK1, 2, 3 2011-2011 01
025 15831544 ROD, FRT S/D O/S HDL (FOR VEHICLES BUILT BEFORE 01/11/11) (FOR 2ND DES SEE 20984752) CK1, 2, 3 (1ST DES) 2011-2011 01
025 20984752 ROD, FRT S/D O/S HDL (FOR VEHICLES BUILT ON OR AFTER 01/01/11) (FOR 1ST DES SEE 15831544) CK1, 2, 3 (2ND DES) 2011-2011 01
025 20984751 ROD, FRT S/D O/S HDL CK1, 2, 3 2011-2011 01
026 11609341 SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (FRT S/D LAT) 2011-2011 06
027 20884470 SENSOR, AIRBAG SI IMP CK1, 2 (06-36-43-53) (ASF) 2011-2011 04
028 21110669 PLUG, FRT S/D O/S HDL ACC HOLE (35 MM DIA) (FITS HOLE 25MM) (ROUND) (12.179) CK1, 2, 3 2011-2011 04
029 20880973 GROMMET, FRT S/D LKG ROD CK1, 2, 3 2011-2011 02
030 15827500 ROD, FRT S/D LK CYL CK1, 2, 3 (EXC AP3, AP8, AU0, AU5) 2011-2011 01
030 15827501 ROD, FRT S/D LK CYL CK1, 2, 3 2011-2011 01
031 CLIP, FRT S/D LKG ROD (PART OF 35) 2011-2011
032 20825032 CYLINDER KIT, FRT S/D LK (UNCODED) CK1, 2, 3 2011-2011 02
033 20828232 CLIP, FRT S/D O/S HDL (PART OF 35) CK1, 2, 3 2011-2011 01
034 11588393 BOLT, HEX W/ CON WA, M6X1X15, 7 THD, 17 OD, 8.8, GMW4205 (FRT S/D O/S HDL) 2011-2011 04
035 20828237 HANDLE, FRT S/D O/S (INCLS 31, 33) (MOLDED IN BLACK) (ORDER T/W CLIP-20828232) (FOR INSTLN PROCDR REF #09-08-64-023) CK1, 2, 3 2011-2011 01
035 20828243 HANDLE, FRT S/D O/S (INCLS 31, 33) (PAINT TO MATCH) (ORDER T/W CLIP-20828232) (FOR INSTLN PROCDR REF #09-08-64-023) CK1, 2, 3 2011-2011 01
035 22738721 HANDLE, FRT S/D O/S (INCLS 31, 33) (CHROME) (ORDER T/W CLIP-20828232) (FOR INSTLN PROCDR REF #09-08-64-023) CK1, 2, 3 2011-2011 01
035 20954801 HANDLE, FRT S/D O/S (INCLS 31, 33) (PAINT TO MATCH) (USE T/W CLIP 20828232) (W/O LOCK CYL HOLE) CK1, 2, 3 2011-2011 01
035 22738722 HANDLE, FRT S/D O/S (INCLS 31, 33) (CHROME) (USE T/W CLIP 20828232) (FOR INSTLN PROCDR REF #09-08-64-023) CK1, 2, 3 2011-2011 01
035 20954796 HANDLE, FRT S/D O/S (INCLS 31, 33) (MOLDED IN BLACK) (ORDER T/W CLIP-20828232) (FOR INSTLN PROCDR REF #09-08-64-023) CK1, 2 (06-36) 2011-2011 01
035 22738721 HANDLE, FRT S/D O/S (INCLS 31, 33) (CHROME) (ORDER T/W CLIP-20828232) (FOR INSTLN PROCDR REF #09-08-64-023) (16.350) (SERV CMP OF HANDLE PKGS) CK1, 2, 3 2011-2011 01
035 22738722 HANDLE, FRT S/D O/S (INCLS 31, 33) (CHROME) (USE T/W CLIP 20828232) (FOR INSTLN PROCDR REF #09-08-64-023) (16.350) (SERV CMP OF HANDLE PKGS) CK1, 2, 3 2011-2011 01
036 20970075 DOOR, FRT SI (SEE GROUP 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES) (FOR VEH BUILT BEFORE 11/15/10) (FOR 2ND DES SEE 20981605) CK1, 2 (06-36) (Z75) (1ST DES) 2011-2011 01
036 20970076 DOOR, FRT SI (SEE GROUP 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES) (FOR VEH BUILT BEFORE 11/15/10) (FOR 2ND DES SEE 20981606) CK1, 2 (06-36) (Z75) (1ST DES) 2011-2011 01
036 20981605 DOOR, FRT SI (SEE GROUP 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES) (FOR VEH BUILT ON OR AFTER 11/15/10) (FOR 1ST DES SEE 20970075) CK1, 2 (06-36) (Z75) (2ND DES) 2011-2011 01
036 20981606 DOOR, FRT SI (SEE GROUP 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES) (FOR VEH BUILT ON OR AFTER 11/15/10) (FOR 1ST DES SEE 20970076) CK1, 2 (06-36) (Z75) (2ND DES) 2011-2011 01
037 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D TR PNL) 2011-2011 06
038 15286992 CLIP, FRT S/D MLDG (12X10.7X7.4, 0.71-1.50 THK PNL, SAE 1050 STL, GMW3200) (10.352) CK1 (Z75) 2011-2011 01
038 15887813 CLIP, FRT S/D MLDG (16.225) CK1 (Z75) 2011-2011 10
038 15286992 CLIP, FRT S/D MLDG (12X10.7X7.4, 0.71-1.50 THK PNL, SAE 1050 STL, GMW3200) (10.352) CK1 (Z75) 2011-2011 01
038 25895275 CLIP, FRT S/D MLDG (17.507) CK1 (Z75) 2011-2011 01
038 25895275 CLIP, FRT S/D MLDG CK1 (Z75) 2011-2011 01
039 25784518 MOLDING, FRT S/D WDO GARN CK1 (Z75) 2011-2011 01
039 25784519 MOLDING, FRT S/D WDO GARN CK1 (Z75) 2011-2011 01
