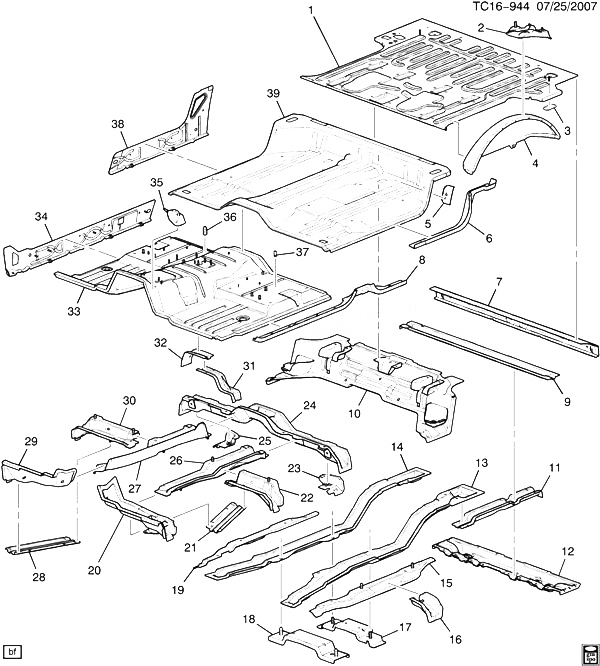

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15859885 |
PANEL, R/FLR (INCLS 3) |
CK109, 2 (06) |
2007-2013 |
01 |
| 002 |
10382641 |
BRACKET, JK STOW (BOTTOM BRKT INCLS STUDS) |
CK1, 2 (06) |
2007-2013 |
01 |
| 003 |
15630183 |
PLATE, CARGO TIE DN LOOP ANC (PART OF 1) (16.715) |
CK1, 2 (06) |
2007-2013 |
04 |
| 004 |
15847621 |
PANEL, RR W/H INR |
CK1, 2 (06-36) |
2007-2011 |
02 |
| 005 |
15742355 |
PLATE, R/SEAT BELT ANC (RETR SI) (PART OF 39) |
CK109, 2 (06) |
2007-2013 |
02 |
| 006 |
25815108 |
EXTENSION, FLR PNL (REAR) (W/STUD) |
CK109, 2 (06) |
2007-2013 |
01 |
| 006 |
25815109 |
EXTENSION, FLR PNL (REAR) (W/STUD) |
CK109, 2 (06) |
2007-2013 |
01 |
| 007 |
15115647 |
SILL, U/B RR CR |
CK1, 2 (06) |
2007-2013 |
01 |
| 008 |
25815106 |
EXTENSION, FLR PNL (FRONT) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 008 |
25815107 |
EXTENSION, FLR PNL (FRONT) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 009 |
15859886 |
SILL, U/B #5 CR |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 010 |
15906136 |
SILL, U/B #3 CR |
CK109, 2 (06) |
2007-2013 |
01 |
| 011 |
15115643 |
REINFORCEMENT, R/FLR PNL |
CK109, 2 (06-36) |
2007-2013 |
02 |
| 012 |
25946281 |
SILL, U/B #4 CR |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 013 |
15912975 |
REINFORCEMENT, INTER FLR PNL |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 014 |
15871406 |
REINFORCEMENT, INTER FLR PNL |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 015 |
15289923 |
REINFORCEMENT, FLR PNL (INTERMEDIATE OUTER) |
CK109, 2 (06) |
2007-2013 |
01 |
| 016 |
15090582 |
BRACE, INTER FLR PNL |
CK109, 2 (06-36) |
2007-2013 |
02 |
| 017 |
15289925 |
REINFORCEMENT, INTER FLR PNL (CENTER REAR) |
CK109, 2 (06) |
2007-2013 |
01 |
| 018 |
15289951 |
REINFORCEMENT, INTER FLR PNL (CENTER) |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 019 |
15289924 |
REINFORCEMENT, F/FLR PNL (INTERMEDIATE OUTER) |
CK109, 2 (06) |
2007-2013 |
01 |
| 020 |
25946285 |
SILL, U/B #1 CR |
CK1, 2 |
2007-2013 |
01 |
| 021 |
25937226 |
BRACE, CR SILL |
CK1, 2, 3 |
2007-2013 |
01 |
| 022 |
15828261 |
REINFORCEMENT, FLR PNL (D/SEAT) (OUTER) |
CK1, 2, 3 |
2007-2013 |
01 |
| 023 |
20894780 |
REINFORCEMENT, F/FLR BODY MT (#2) (W/O REINFORCEMENT) |
CK1, 2 (06-36) |
2011-2013 |
01 |
| 024 |
20848417 |
SILL, U/B #2 CR |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 025 |
20894781 |
REINFORCEMENT, F/FLR BODY MT (#2) |
CK1, 2 (06-36) |
2011-2013 |
01 |
| 026 |
15822915 |
REINFORCEMENT, FLR PNL (D/SEAT) (INNER) |
CK1, 2, 3 |
2007-2013 |
01 |
| 027 |
15234735 |
REINFORCEMENT, FLR PNL (P/SEAT) (INNER) |
CK1, 2, 3 |
2007-2013 |
01 |
| 028 |
20914723 |
BRACE, CR SILL |
CK1, 2, 3 (EXC M1F) |
2007-2013 |
01 |
| 029 |
25946286 |
SILL, U/B #1 CR |
CK1, 2 |
2007-2013 |
01 |
| 030 |
15234733 |
REINFORCEMENT, FLR PNL (P/SEAT) (OUTER) |
CK1, 2, 3 |
2007-2013 |
01 |
| 031 |
15173440 |
STIFFENER, FLR PNL AT TUN |
CK1, 2, 3 |
2007-2013 |
01 |
| 032 |
15173441 |
STIFFENER, FLR PNL AT TUN |
CK1, 2, 3 |
2007-2013 |
01 |
| 033 |
20989092 |
PANEL, F/FLR (INCLS 35-37) |
CK1, 2, 3 |
2007-2013 |
01 |
| 034 |
15827692 |
PANEL, RKR FRT INR |
CK1, 2 (06-36-43) (MSL) |
2007-2013 |
01 |
| 034 |
25982599 |
PANEL, RKR FRT INR |
CK1, 2 (06) (ARL) |
2010-2013 |
01 |
| 034 |
22812484 |
PANEL, RKR FRT INR |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 035 |
15174121 |
BRACKET, I/P LWR (PART OF 33) |
CK1, 2, 3 |
2007-2013 |
01 |
| 036 |
15734736 |
STUD, F/SEAT ANC PLT (PART OF 33) |
CK1, 2, 3 |
2007-2013 |
04 |
| 037 |
11609625 |
STUD, BODY WRG HARN GND (PART OF 33) (M5 X 1.6 X 57.0) (RIVET STYLE) (4.047) |
CK1, 2, 3 |
2007-2013 |
04 |
| 038 |
25982603 |
PANEL, RKR RR INR |
CK109, 2 (ARL) |
2010-2013 |
01 |
| 038 |
25982603 |
PANEL, RKR RR INR |
CK109, 2 (MSL) |
2007-2013 |
01 |
| 038 |
25982605 |
PANEL, RKR RR INR (W/NUT, STUD, WELD) |
CK109, 2 (06-36) |
2007-2013 |
01 |
| 039 |
15950122 |
PANEL, INTER FLR (INCLS 5) (W/R/SEAT BELT PLT STUD) |
CK109, 2 (06) |
2007-2013 |
01 |
