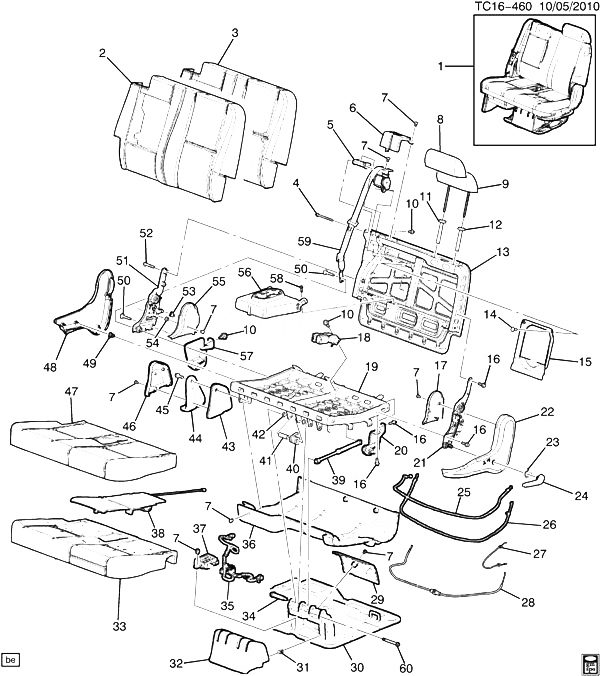

(TC16-460) 2007-2013 CK109,2(06) ЗАДНЕЕ СИДЕНЬЕ/BENCH-60% SIDE (AM8, EXC POWER FOLDING ARS) CADILLAC - ESCALADE ESV (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20842387 SEAT, RR (EBONY) CK109 (06) (AM8, KA6, Z75, 194) (EXC ARS) 2011-2013 01
001 20842388 SEAT, RR (CASHMERE) CK109 (06) (AM8, KA6, Z75, 394) (EXC ARS) 2011-2013 01
001 20842458 SEAT, RR (EBONY) CK109, 2 (06) (AM8, 19C) (EXC 5T5) 2011-2013 01
001 20842459 SEAT, RR (CASHMERE) CK109, 2 (06) (AM8, 33C) 2011-2013 01
002 15914202 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19V) 2007-2013 01
002 25908031 COVER, R/SEAT BK (CASHMERE) CK1 (06) (AM8, KA6, Z75, 394) 2009-2013 01
002 25931386 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
002 15865521 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 193) (EXC KB6) 2009-2013 01
002 15865522 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC KB6) 2009-2013 01
002 15865523 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC KB6) 2009-2013 01
002 15914202 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
002 20905042 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
002 20905043 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
002 20895601 COVER, R/SEAT BK (EBONY) CK1 (06) (AM8, KA6, Z75, 194) 2007-2013 01
002 25931384 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, KA6, KB6, 196) 2011-2013 01
003 15291597 PAD, R/SEAT BK CK107, 109, 2 (06) (AM8, 193, 333, 833) 2007-2013 01
003 22771058 PAD, R/SEAT BK CK107, 109, 2 (06) (AM8, 19C, 19V, 5T5) 2007-2013 01
004 11562382 BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK FRM) 2007-2013 01
005 15289969 BRACKET, RR CTR SEAT BELT RETR CK1, 2 (06) (AM8) 2007-2013 01
006 15279450 PROTECTOR, R/SEAT SHLDR BELT (BLACK) CK1, 2 (06) 2007-2013 01
007 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2013 14
008 COVER, R/SEAT H/RST SUPT (PART OF 9) 2007-2013
009 20960659 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2011-2013 02
009 20960660 RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) CK1, 2 (06) (AM8, 33C) 2011-2013 02
009 20960662 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK109 (06) (AM8, KA6, Z75, 194) 2011-2013 02
009 20960663 RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) CK109 (06) (AM8, KA6, Z75, 394) 2011-2013 02
009 20960665 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK107, 109, 2 (06) (AM8, 19C, 5T5) 2011-2013 02
009 20960665 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK107, 109, 2 (06) (AM8, 19V) 2011-2013 02
010 11562383 BOLT, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) 2007-2013 03
011 20912675 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2011 02
011 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2 (06) (19I) 2007-2011 02
011 20912676 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2007-2011 02
012 20912679 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1 (06) (AM8, 19I) 2007-2011 02
012 20912680 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06) (33I, 39I) 2007-2011 02
012 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2, 3 (83I, 84I) 2007-2011 02
013 15269762 FRAME, R/SEAT BK CK1, 2 (06) (AM8) 2007-2013 01
014 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 02
014 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 02
014 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (33I, 39I) 2007-2013 02
015 15279471 COVER, R/SEAT A/RST SUPT FIN (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 01
015 15279469 COVER, R/SEAT A/RST SUPT FIN (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 01
015 15279470 COVER, R/SEAT A/RST SUPT FIN (CASHMERE) CK1, 2 (06) (AM8, 33I, 39I) 2007-2013 01
016 11562378 BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 06
017 15279624 COVER, R/SEAT BK HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 19I) (EXC ARS) 2010-2011 01
017 15279625 COVER, R/SEAT BK HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 33I, 39I) 2009-2011 01
017 15279626 COVER, R/SEAT BK HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2011 01
018 19121589 BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) CK1, 2 (06) (AM8, 19I) 2007-2011 01
018 19121591 BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) CK1, 2 (06) (AM8, 33I, 39I) 2007-2011 01
018 19121592 BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) CK1, 2 (06) (AM8, 83I) 2007-2011 01
019 15269764 FRAME, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
020 15275890 LATCH, R/SEAT RSR (OUTBOARD) (O/B) CK109, 2 (06) (AM8) 2007-2011 01
021 25896455 LATCH, R/SEAT BK (OUTBOARD) CK1, 2 (06) (AM8) (EXC HP2) 2007-2011 01
022 15279614 COVER, R/SEAT BK HGE FIN (INCLS 49) (EBONY) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 19I) 2009-2011 01
022 15279615 COVER, R/SEAT BK HGE FIN (INCLS 49) (CASHMERE) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 33I, 39I) 2009-2011 01
022 15279616 COVER, R/SEAT BK HGE FIN (INCLS 49) (TITANIUM) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2011 01
023 RETAINER, R/SEAT ADJR RLR (PART OF 24) 2007-2013
024 15279416 HANDLE, R/SEAT RECL (INCLS 23) (TITANIUM) CK1, 2 (06) (83I) 2007-2013 01
024 15279414 HANDLE, R/SEAT RECL (INCLS 23) (EBONY) CK1, 2 (06) (19I) 2007-2013 01
024 15279415 HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) CK1, 2 (06) (33I) 2007-2013 01
024 25858332 HANDLE, R/SEAT RECL (INCLS 23) (COCOA) CK1 (06) (AM8, 41I) 2009-2013 01
024 15279415 HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) CK1 (06) (39I) 2007-2013 01
025 15275917 CABLE, R/SEAT LAT (INBOARD) (FLOOR LATCH) CK1, 2 (06) (AM8) 2007-2011 01
026 25816396 CABLE, R/SEAT LAT (INBOARD) (MASTER SYNC) CK1, 2 (06) (AM8) 2007-2011 01
027 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AM8) (EXC HP2) 2007-2011 01
028 25816395 CABLE, R/SEAT BK LAT (MASTER SYNC) CK1, 2 (06) (AM8) (EXC ARS, HP2) 2007-2013 01
029 15279679 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK109, 2 (06) (AM8, 19I) 2009-2011 01
029 15279680 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK109, 2 (06) (AM8, 33I, 39I) 2009-2011 01
029 15279681 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK109, 2 (06) (AM8, 83I) 2007-2011 01
030 22741878 RISER, R/SEAT CK109, 2 (06) (AM8) 2007-2013 01
031 25784330 RETAINER, R/SEAT RSR FIN CVR (PART OF 32) CK1, 2 (06) 2007-2013 04
032 15824842 COVER, R/SEAT RSR FIN (INCLS 31) (EBONY) (FRONT) CK109, 2 (06) (AM8, 19I) 2009-2011 01
032 15824843 COVER, R/SEAT RSR FIN (INCLS 31) (CASHMERE) (FRONT) CK109, 2 (06) (AM8, 33I, 39I) 2009-2011 01
032 15824844 COVER, R/SEAT RSR FIN (INCLS 31) (TITANIUM) (FRONT) CK109, 2 (06) (AM8, 83I) 2007-2011 01
033 15291599 PAD, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
034 11570032 PIN, R/SEAT HGE (6 X 1 X 98) CK1, 2 2007-2011 01
035 15843765 HARNESS, R/SEAT HTR CK1, 2 (06) 2007-2011 01
036 15279656 PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) (W/O TETHER SYMBOL ON TOP OF PANEL) (FOR 2ND DES SEE 22772257) CK109, 2 (06) (AM8, 83I) (1ST DES) 2011-2011 01
036 22772257 PANEL, R/SEAT CUSH TR (TITANIUM) (W/TETHER SYMBOL ON TOP OF PANEL) (FOR 1ST DES SEE 15279656) CK109, 2 (06) (AM8, 83I) (2ND DES) 2011-2011 01
036 22772255 PANEL, R/SEAT CUSH TR (EBONY) CK109, 2 (06) (AM8, 19I) 2007-2013 01
036 22772256 PANEL, R/SEAT CUSH TR (CASHMERE) CK109, 2 (06) (AM8, 33I, 39I) 2010-2013 01
037 20933029 MODULE, R/SEAT HTR CONT CK1 (06) (AM8) 2009-2013 01
037 25891512 MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.558) CK1 (06) (KA1) 2009-2011 01
038 20792750 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2013 01
039 15275905 STRUT, R/SEAT (USED ON 40% SIDE) CK1, 2 (06) (AM8) 2007-2013 02
039 15930099 STRUT, R/SEAT (USED ON 60% SIDE) CK1, 2 (06) (AM8) 2007-2013 01
040 15275900 SPRING, R/SEAT RECL (TUMBLE) CK1, 2 (06) (AM8) (EXC HP2) 2007-2011 02
041 15275902 SPRING, R/SEAT RECL (MANDREL) CK1, 2 (06) (AM8) (EXC HP2) 2007-2011 01
042 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AM8) 2007-2013 08
043 15279666 COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2013 01
043 15279664 COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 19I) 2007-2013 01
043 15279665 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 33I, 39I) 2007-2013 01
044 15269778 BRACKET, R/SEAT CK109, 2 (06) (AM8) 2007-2013 01
045 11562381 BOLT, R/SEAT BK LAT PIV (M12X1.75X40) CK1, 2 (06) (AM8) 2007-2013 02
046 15279671 COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2013 01
046 15279669 COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 19I) 2007-2013 01
046 15279670 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 33I, 39I) 2007-2013 01
047 15914206 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19V) 2007-2013 01
047 25931390 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, KB6, 196) (EXC HP2) 2009-2013 01
047 25931391 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) 2009-2013 01
047 25931392 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
047 15865529 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) 2009-2013 01
047 15865530 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) 2009-2013 01
047 15865531 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) 2009-2013 01
047 15914206 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
047 25899567 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AM8, KA6, Z75, 194) (EXC HP2) 2008-2013 01
047 20905036 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
047 20905037 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
047 20905440 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) 2009-2013 01
048 15279634 COVER, R/SEAT BK HGE FIN (INCLS 49) (EBONY) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 19I) 2009-2011 01
048 15279635 COVER, R/SEAT BK HGE FIN (INCLS 49) (CASHMERE) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 33I, 39I) 2009-2011 01
048 15279636 COVER, R/SEAT BK HGE FIN (INCLS 49) (TITANIUM) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2011 01
049 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 22, 48) 2007-2013
050 11562376 SCREW, PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) 2007-2013 02
051 25896456 LATCH, R/SEAT BK (INBOARD) CK1, 2 (06) (AM8, KA6) (EXC HP2) 2008-2011 01
052 11562377 BOLT, HFH, M10X1.5X55, 43.45 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 02
053 20963265 KNOB, R/SEAT LAT (EBONY) (INNER) CK1, 2 (06) 2011-2013 02
054 11562384 NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2013 02
055 15279644 COVER, R/SEAT BK HGE FIN (EBONY) (INBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 19I) 2009-2011 01
055 15279645 COVER, R/SEAT BK HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) CK109 (06) (AM8, 33I, 39I) 2009-2011 01
055 15279646 COVER, R/SEAT BK HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2011 01
056 15275854 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AM8, Z75, Z88, 194, 197) 2008-2013 01
056 15913989 ARMREST, R/SEAT (TITANIUM) (W/CUP HOLDER) CK1, 2 (06) (AM8, 19C) 2010-2013 01
056 20904933 ARMREST, R/SEAT (CASHMERE) (W/CUP HOLDER) CK1, 2 (06) (AM8, 33C) 2010-2013 01
056 15865495 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AM8, 833, 836) 2007-2013 01
056 15865493 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AM8, 196, 846) 2009-2013 01
056 15865493 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AM8, 193) 2009-2013 01
056 15865494 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AM8, 333, 336) 2009-2013 01
056 15275855 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AM8, KA6, Z75, 394) (EXC HP2) 2009-2013 01
057 15275891 LATCH, R/SEAT RSR (INBOARD) CK109, 2 (06) 2007-2011 01
058 11562386 BOLT, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT A/RST) 2007-2013 AR
059 19151106 BELT KIT, R/SEAT CTR (RETR SI) (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 01
059 19151105 BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) CK1, 2 (06) (AM8, 33I, 39I) 2007-2013 01
059 19151104 BELT KIT, R/SEAT CTR (RETR SI) (EBONY) CK109, 2 (06) (AM8, 19I) 2009-2013 01
060 11570031 PIN, R/SEAT HGE (6 X 1 X 78) CK1, 2 (06) 2007-2013 01
060 11570032 PIN, R/SEAT HGE (6 X 1 X 98) CK1, 2 (06) 2007-2013 01
