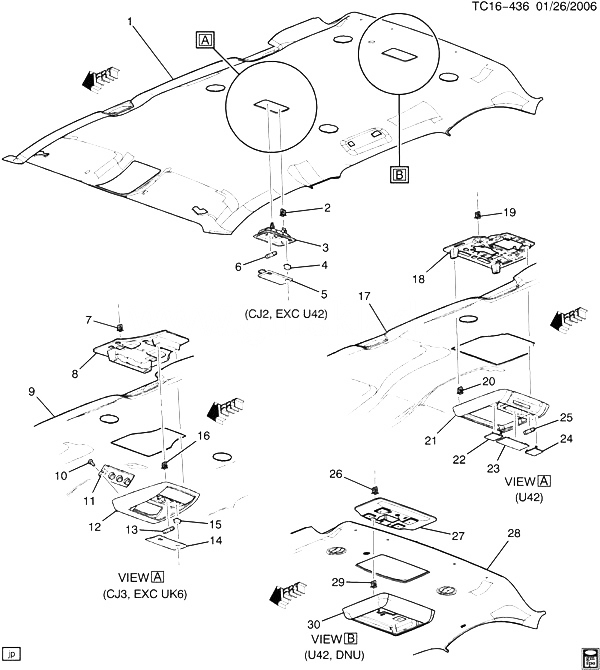

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
PANEL, HDLNG FRT TR (SEE GROUP 16.000 TRIM/INTERIOR-ROOF, PART 1 FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
|
2007-2013 |
|
| 002 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 3) |
|
2007-2013 |
01 |
| 003 |
15940146 |
LAMP, DM RDG (INCLS 2, 4-6) (OPEL GRAY) |
CK109, 2 (06) (ASF, CJ2, 19I, 83I) (EXC U42) |
2009-2013 |
01 |
| 003 |
25850223 |
LAMP, DM RDG (INCLS 2, 4-6) (CASHMERE) |
CK107, 109, 2 (06) (ASF, CJ2, 33I, 39I) (EXC U42) |
2011-2013 |
01 |
| 003 |
25851514 |
LAMP, DM RDG (INCLS 2, 4-6) (LINEN) |
CK109 (06) (ASF, CF5, CJ2, ULT, U42, Z75, 41I) (EXC U42) |
2008-2013 |
01 |
| 004 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 3) (AT CONSOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 005 |
15853945 |
LENS, DM RDG LP (2ND ROW LAMP) (PART OF 3) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
19116011 |
BULB, C/LP (PART OF 3) (ACDelco #19116011) |
CK1, 2, 3 |
2007-2013 |
02 |
| 007 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 8) |
|
2007-2013 |
04 |
| 009 |
|
PANEL, HDLNG FRT TR (SEE GROUP 16.000 TRIM/INTERIOR-ROOF, PART 1 FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
|
2007-2013 |
|
| 010 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 12) |
|
2007-2013 |
AR |
| 012 |
25850219 |
CONSOLE, RF (INCLS 10, 13-16) (GRAY) (HVAC CNSL) |
CK109, 2 (06) (ASF, CJ3, UK6, 19I, 83I, 84I) |
2010-2013 |
01 |
| 013 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 12) (ACDelco #L212-2) |
|
2007-2013 |
02 |
| 015 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 12) (AT CONSOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 016 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12) |
|
2007-2013 |
04 |
| 017 |
|
PANEL, HDLNG FRT TR (SEE GROUP 16.000 TRIM/INTERIOR-ROOF, PART 1 FOR DETAILED ILLUSTRATED VIEW) (GRAY) |
|
2007-2013 |
|
| 018 |
25995622 |
RETAINER, RF RR CNSL (INCLS 19) (DVD BACKPLATE - 2ND ROW) |
CK1, 2 (06) (U42) |
2007-2013 |
01 |
| 019 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 18) |
|
2007-2013 |
02 |
| 020 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 21) |
|
2007-2013 |
02 |
| 021 |
25851515 |
CONSOLE, RF (INCLS 20, 22-25) (LINEN) (2ND ROW) |
CK109 (06) (CF5, 41I) |
2008-2011 |
01 |
| 021 |
25853058 |
CONSOLE, RF (INCLS 20, 22-25) (GRAY) (2ND ROW DVD) |
CK1, 2, 3 (CJ2, U42, 19I, 31I, 83I, 84I, 85I) |
2007-2011 |
01 |
| 021 |
25853059 |
CONSOLE, RF (INCLS 20, 22-25) (CASHMERE) (2ND ROW DVD FACE PLT) (PO PNL ASM) |
CK1, 2 (22I, 31I, 33I, 39I) |
2007-2013 |
01 |
| 022 |
15853942 |
LENS, VIDEO PLYR R/CON SEN (PART OF 21) (RH DVD PUSH-PUSH) |
CK1, 2, 3 |
2007-2013 |
01 |
| 023 |
15853943 |
LENS, VIDEO PLYR R/CON SEN (CTR DVD FIXED LENS) (PART OF 21) (CTR DVD FIXED FREEDOM) |
CK1, 2, 3 (U42) |
2007-2013 |
01 |
| 024 |
15853941 |
LENS, VIDEO PLYR R/CON SEN (PART OF 21) (LH DVD PUSH-PUSH) |
CK1, 2, 3 |
2007-2013 |
01 |
| 025 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 21) (ACDelco #L212-2) |
|
2007-2013 |
01 |
| 026 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 27) |
|
2007-2013 |
02 |
| 027 |
25995624 |
RETAINER, RF RR CNSL (INCLS 26) (DVD BACKPLATE - 3RD ROW) |
CK1, 2 (06) (ASF, CJ2, DNU, U42) |
2007-2013 |
01 |
| 028 |
20886483 |
PANEL, HDLNG FRT TR (SEE GROUP 16.000 TRIM/INTERIOR-ROOF, PART 1 FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
|
2007-2013 |
|
| 029 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 30) |
|
2007-2013 |
04 |
| 030 |
25851509 |
CONSOLE, RF (INCLS 29) (COCOA) (3RD ROW) |
CK109 (06) (41I) |
2008-2013 |
01 |
| 030 |
25931810 |
CONSOLE, RF (INCLS 29) (CASHMERE) (DVD-3RD ROW) |
CK109, 2 (06) (ASF, CJ2, DNU, U42, Z75, 39I) |
2009-2013 |
01 |
