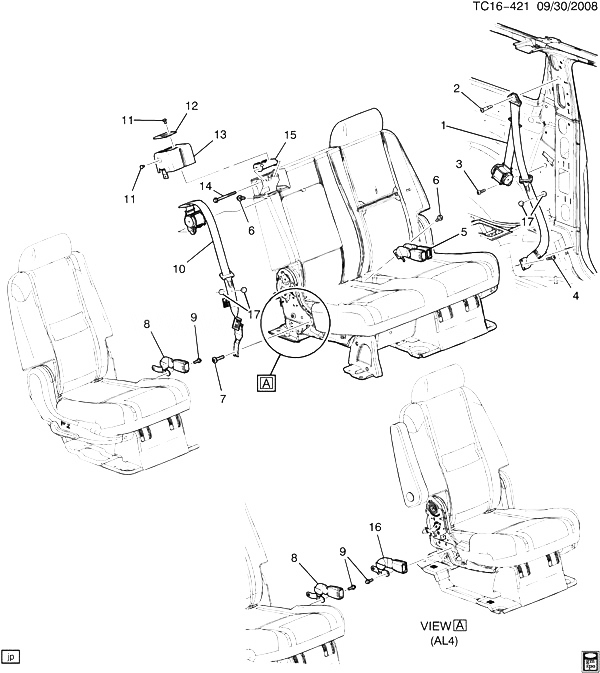

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 017 |
19121446 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (EBONY) (14.875) |
CK1, 2, 3 (19I, 85I, 88I) |
2010-2013 |
01 |
| 001 |
19260313 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2007-2013 |
01 |
| 001 |
19167328 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (TITANIUM) |
CK109, 2 (06) (83I) |
2007-2012 |
01 |
| 001 |
19167332 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (TITANIUM) |
CK109, 2 (06) (83I) |
2007-2012 |
01 |
| 001 |
19168659 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (COCOA) |
CK109 (06) (41I) |
2008-2012 |
01 |
| 001 |
19168660 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (COCOA) |
CK109 (06) (41I) |
2008-2012 |
01 |
| 001 |
19167329 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY) |
CK109, 2 (06) (19I) |
2009-2012 |
01 |
| 001 |
19260317 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2007-2013 |
01 |
| 001 |
19260312 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY) |
CK109, 2 (06) (19I) |
2009-2012 |
01 |
| 002 |
11609886 |
BOLT, R/SEAT BELT (RETR SI) (PART OF 1) (M12X1.75X40, 22 OD) |
CK1, 2 (06) |
2007-2013 |
AR |
| 003 |
11609886 |
BOLT, R/SEAT BELT (RETR SI) (M12X1.75X40, 22 OD) |
CK1, 2 (06) |
2007-2013 |
AR |
| 004 |
11609886 |
BOLT, R/SEAT BELT (RETR SI) (M12X1.75X40, 22 OD) |
CK1, 2 (06) |
2007-2013 |
AR |
| 005 |
19121592 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 005 |
19121601 |
BELT KIT, R/SEAT (BKL SI) (EBONY) |
CK1, 2 (06) (AL4, 19I) |
2007-2013 |
01 |
| 005 |
19121604 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AL4, 83I) |
2007-2013 |
01 |
| 005 |
19180586 |
BELT KIT, R/SEAT (BKL SI) (COCOA) |
CK109 (06) (AL4, ULT, Z75, 415) |
2008-2013 |
01 |
| 005 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 005 |
19121603 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AL4, 33I, 39I) |
2009-2013 |
01 |
| 005 |
19121589 |
BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 006 |
11562383 |
BOLT, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) |
|
2007-2013 |
01 |
| 007 |
11562376 |
SCREW, PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
01 |
| 008 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 008 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AL4, 83I) |
2007-2013 |
01 |
| 008 |
19180585 |
BELT KIT, R/SEAT (BKL SI) (COCOA) |
CK109 (06) (AL4, ULT, Z75, 415) |
2008-2013 |
01 |
| 008 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2013 |
01 |
| 008 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AL4, 33I, 39I) |
2009-2013 |
01 |
| 008 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 008 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (EBONY) |
CK1, 2 (06) (AL4, 19I) |
2007-2013 |
01 |
| 009 |
11562378 |
BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
02 |
| 010 |
19151106 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 17) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 010 |
19151105 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 17) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 010 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 17) (EBONY) |
CK109, 2 (06) (AM8, 19I) |
2009-2013 |
01 |
| 010 |
25919004 |
BELT, R/SEAT CTR SHLDR (RETR SI) (INCLS 17) (CASHMERE) |
CK1 (06) (AM8, AX4, KA6, Z75, 394) (EXPORT) |
2009-2013 |
01 |
| 011 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2013 |
04 |
| 012 |
25827849 |
BEZEL, R/SEAT BELT OPG (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2013 |
01 |
| 012 |
25827850 |
BEZEL, R/SEAT BELT OPG (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2013 |
01 |
| 013 |
15279450 |
PROTECTOR, R/SEAT SHLDR BELT (BLACK) |
CK1, 2 (06) |
2007-2013 |
01 |
| 014 |
11562382 |
BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK FRM) |
|
2007-2013 |
01 |
| 015 |
15289969 |
BRACKET, RR CTR SEAT BELT RETR |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 016 |
19121601 |
BELT KIT, R/SEAT (BKL SI) (EBONY) |
CK1, 2 (06) (AL4, 19I) |
2007-2013 |
01 |
| 016 |
19121604 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AL4, 83I) |
2007-2013 |
01 |
| 016 |
19180586 |
BELT KIT, R/SEAT (BKL SI) (COCOA) |
CK109 (06) (AL4, ULT, Z75, 415) |
2008-2013 |
01 |
| 016 |
19121603 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AL4, 33I, 39I) |
2009-2013 |
01 |
| 017 |
19207765 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (COCOA) (14.875) |
CK1, 2, 3 (41I) |
2008-2011 |
01 |
| 017 |
19121445 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (CASHMERE) (14.875) |
CK1, 2, 3 (31I, 33I, 39I) |
2008-2011 |
01 |
| 017 |
19121443 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (TITANIUM) (14.875) |
CK1, 2, 3 (83I, 84I) |
2007-2011 |
01 |
