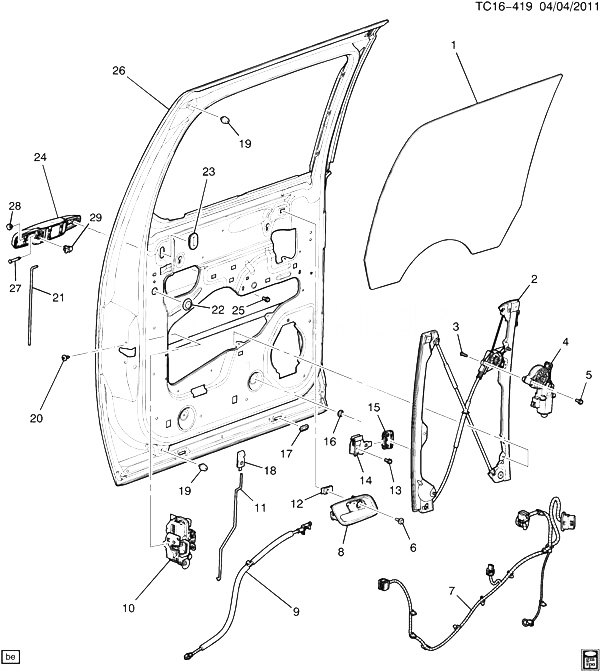

(TC16-419) 2010-2011 CK109,2(06-36) ФУРНИТУРА ДВЕРИ/SIDE REAR PART 2 CADILLAC - ESCALADE ESV (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15140721 WINDOW, RR S/D CK109 (06-36) (AJ1, Z75) 2008-2011 01
001 15140722 WINDOW, RR S/D CK109 (06-36) (AJ1, Z75) 2008-2011 01
001 15140720 WINDOW, RR S/D CK109 (06-36) (Z75) (EXC AJ1) 2008-2011 01
001 15140719 WINDOW, RR S/D CK109 (06-36) (Z75) (EXC AJ1) 2008-2011 01
002 20945141 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (W/MOTOR) (ACDelco #20945141) CK109, 2 (06-36) (A31) (EXC 5B5) 2007-2011 01
002 20945140 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (W/MOTOR) (ACDelco #20945140) CK109, 2 (06-36) (A31) (EXC 5B5) 2007-2011 01
002 20945140 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (W/MOTOR) (ACDelco #20945140) CK109, 2 (06-36) (5B5) 2007-2011 01
002 20945141 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (W/MOTOR) (ACDelco #20945141) CK109, 2 (06-36) (5B5) 2007-2011 01
003 BOLT, RR S/D WDO REG (PART OF 2) 2010-2011
004 MOTOR, RR S/D WDO REG (PART OF 2) 2010-2011
005 11589177 BOLT, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO REG) 2007-2011 02
006 11570136 BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (RR S/D T/PNL) 2007-2011 04
007 20858468 HARNESS, RR S/D DR WRG CK109, 209 (06) (UQA, UQS) 2010-2011 01
007 20858469 HARNESS, RR S/D DR WRG CK109, 209 (06) (UQ3) 2010-2011 01
007 20953469 HARNESS, RR S/D DR WRG CK109, 209 (06) (UQ3) 2010-2011 01
007 22820452 HARNESS, RR S/D DR WRG CK109, 209 (06-36) (UQA, UQS) 2010-2011 01
008 25906817 HANDLE, RR S/D I/S (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2011 01
008 25906822 HANDLE, RR S/D I/S (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2011 01
008 25815293 HANDLE, RR S/D I/S (CHROME HANDLE BEZEL) CK1 (06) (ULT, Z75) 2008-2011 01
008 15920683 HANDLE, RR S/D I/S (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) (EXC ULT) 2007-2011 01
008 15920704 HANDLE, RR S/D I/S (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) (EXC ULT) 2007-2011 01
008 22855634 HANDLE, RR S/D I/S (CHROME HANDLE BEZEL) CK1 (06) (ULT, Z75) 2008-2011 01
009 CABLE, RR S/D LKG (PART OF 10) 2010-2011
010 22785477 LATCH, RR S/D (INCLS 9) CK109, 2 (06) (ARL, AU3) 2010-2011 01
010 22785478 LATCH, RR S/D (INCLS 9) CK109, 2 (06) (ARL, AU3) 2010-2011 01
010 22785479 LATCH, RR S/D (INCLS 9) CK1, 2 (06-36) (AU3, MSL) 2010-2011 01
010 22785480 LATCH, RR S/D (INCLS 9) CK109, 2 (06-36) (AU3, MSL) 2010-2011 01
011 15175387 ROD, RR S/D LAT CK109, 2 (06-36) 2007-2011 01
011 15175388 ROD, RR S/D LAT CK109, 2 (06-36) 2007-2011 01
012 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (RR S/D T/PNL) 2007-2011 04
013 PIN, RR S/D WDO REG GDE (PART OF 2) 2010-2011
014 BRACKET, RR S/D WDO REG GDE (PART OF 2) 2010-2011
015 GUIDE, RR S/D WDO REG (PART OF 2) 2010-2011
016 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR S/D WDO REG) 2007-2011 04
017 15807100 PLUG, RR S/D DRN HOLE CK1, 2 (06-36) 2007-2011 04
018 15844617 KNOB, RR S/D LKG ROD (CASHMERE) CK1, 2, 3 (33I) 2007-2011 02
018 20785356 KNOB, RR S/D LKG ROD (CASHMERE) CK1 (Z75, 39I) 2010-2011 02
018 15844616 KNOB, RR S/D LKG ROD (EBONY) CK1, 2 (06-36) (19I, 31I, 84I, 85I) 2010-2011 02
019 15039965 BUMPER, RR S/D CK1, 2, 3 2007-2011 04
020 11609341 SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (RR S/D LAT) 2007-2011 06
021 15893803 ROD, RR S/D O/S HDL CK109, 2 (06-36) 2007-2011 01
021 15893804 ROD, RR S/D O/S HDL CK109, 2 (06-36) 2007-2011 01
022 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM DIA) (FITS HOLE 25MM) (ROUND) (12.179) CK1, 2, 3 2007-2011 02
023 20880973 GROMMET, RR S/D LKG ROD CK1, 2 (06-36) 2010-2011 02
024 25960522 HANDLE, RR S/D O/S (INCLS 27-29) (CHROME) (PO HDL PKG) CK1, 2 (06-36) 2007-2011 01
024 20954815 HANDLE, RR S/D O/S (INCLS 27-29) (MOLDED IN BLACK) CK1, 2 (06-36) 2007-2011 01
024 22738725 HANDLE, RR S/D O/S (INCLS 27-29) (CHROME) (PO HDL PKG) CK1, 2 (06-36) 2007-2011 01
024 20954816 HANDLE, RR S/D O/S (INCLS 27-29) (MOLDED IN BLACK) CK1, 2 (06-36) 2007-2011 01
024 20954825 HANDLE, RR S/D O/S (INCLS 27-29) (PAINT TO MATCH) (USE T/W CLIP 20828232) CK1, 2 (06) 2007-2011 01
024 25890276 HANDLE, RR S/D O/S (INCLS 27-29) (PAINT TO MATCH) CK1, 2 (06) 2007-2011 01
025 11516421 BOLT, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (RR S/D O/S HDL) 2007-2011 04
026 DOOR, RR SI (SEE GROUP 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/BRACKETS) 2007-2011
027 15832413 PIN, RR S/D PULL HDL PIV (PART OF 24) (16.353) CK1, 2, 3 2007-2011 02
028 CLIP, RR S/D O/S HDL ROD (PART OF 24) 2007-2011
029 20828232 CLIP, RR S/D O/S HDL (PART OF 24) (16.350) CK1, 2, 3 2007-2011 01
