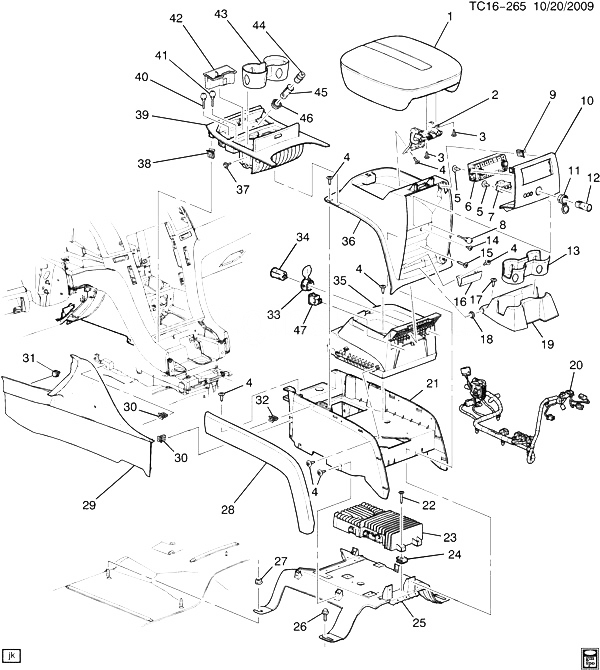

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
LID, F/TOP STOW COMPT (INCLS 2, 3) (SEE GROUP 16.000 CONSOLE/FLOOR-ARMREST DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 002 |
|
HINGE, F/FLR CNSL COMPT DR (PART OF 1) |
|
2010-2011 |
|
| 003 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 1) |
|
2010-2013 |
04 |
| 004 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (F/FLR CNSL STOR TRAY) |
|
2010-2013 |
14 |
| 005 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (HTR A/C CONT OPG CVR) |
|
2010-2013 |
06 |
| 006 |
15886900 |
MODULE, HTR A/C RDO CONT |
CK1 (06) (D07, UK6, USR, Y91, Z75) |
2010-2013 |
01 |
| 006 |
15886900 |
MODULE, HTR A/C RDO CONT (2.560) |
CK1 (06) (D07, UK6, USR, Y91, Z75) |
2010-2013 |
01 |
| 007 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (ACDelco #10375379) |
CK1, 2 (06) |
2010-2013 |
01 |
| 008 |
22596346 |
BUMPER, F/FLR RR CNSL A/RST (W/DURAMETER 30) (LENGTH 29MM) (10.242) |
CK1 (06-36) (Z75) |
2010-2013 |
06 |
| 009 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (F/FLR CNSL SI T/PNL) |
|
2010-2013 |
02 |
| 010 |
15833953 |
COVER, HTR A/C CONT OPG |
CK1 (06) |
2010-2013 |
01 |
| 011 |
20983936 |
RETAINER, ACSRY PWR RCPT (EBONY) (FOR 2010FUTURE W/USR WHEN REPL 25793816 USE T/W CVR 20983937) (ALUMINUM RING) (W/O USB COVER) |
CK1, 2, 3 |
2010-2013 |
02 |
| 012 |
25774623 |
RECEPTACLE, ACSRY PWR (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
CK1 (06-36) (Z75) |
2010-2013 |
01 |
| 013 |
15133100 |
LINER, F/FLR CNSL RR CUP HLDR (PART OF 19) |
CK1 (06-36) (Z75) |
2010-2013 |
01 |
| 014 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 36) |
|
2010-2013 |
02 |
| 015 |
11589106 |
SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 36) (10.774) |
|
2010-2013 |
02 |
| 016 |
|
DETENT, R/CMPT ACC DR HDL (PART OF 36) |
|
2010-2011 |
|
| 017 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 19) |
|
2010-2013 |
02 |
| 018 |
15133101 |
BUSHING, F/FLR CNSL CUP HLDR DR HGE (PART OF 19) |
CK1 (06) (D07, Z75) |
2010-2013 |
01 |
| 019 |
15133093 |
HOLDER, F/FLR CNSL RR CUP (INCLS 13, 17, 18) |
CK1 (06-36) (Z75) |
2010-2013 |
01 |
| 020 |
20888557 |
HARNESS, F/FLR CNSL WRG |
CK1 (06) (D07, UK6, USR, Y91, Z75) (EXC ULT, U42) |
2010-2011 |
01 |
| 020 |
22825331 |
HARNESS, F/FLR CNSL WRG |
CK1 (06) (D07, UK6, USR, U42, Y91, Z75) (EXC ULT) |
2010-2011 |
01 |
| 021 |
|
PANEL, F/FLR CNSL TR (PART OF 36) |
|
2010-2011 |
|
| 022 |
11589106 |
SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 36) (10.774) |
|
2010-2013 |
04 |
| 023 |
20944419 |
AMPLIFIER, RDO SPKR (ACDelco #20944419) |
CK1 (06) (D07, UK6, USR, Y91, Z75) (EXC HP2) |
2010-2013 |
01 |
| 024 |
|
NUT, F/FLR CNSL BRKT (PART OF 36) |
|
2010-2011 |
|
| 025 |
|
BRACKET, F/FLR CNSL (PART OF 36) |
|
2010-2011 |
|
| 026 |
11562473 |
BOLT, F/SEAT (M12X1.75X45) |
CK1, 2, 3 |
2010-2013 |
04 |
| 027 |
15035434 |
NUT, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) |
CK1, 2, 3 |
2010-2013 |
04 |
| 028 |
15220791 |
PANEL, F/FLR CNSL SI TR (PART OF 36) (INCLS 32) (EBONY) |
CK1, 2 (06) (D07, UK6, Y91, Z75, 19I) |
2010-2013 |
01 |
| 028 |
15220793 |
PANEL, F/FLR CNSL SI TR (PART OF 36) (INCLS 32) (EBONY) |
CK1, 2 (06) (D07, UK6, Y91, Z75, 19I) |
2010-2013 |
01 |
| 028 |
25906812 |
PANEL, F/FLR CNSL SI TR (PART OF 36) (INCLS 32) (CASHMERE) |
CK1 (06-36) (D07, UK6, Y91, Z75, 39I) |
2010-2013 |
01 |
| 028 |
25906813 |
PANEL, F/FLR CNSL SI TR (PART OF 36) (INCLS 32) (CASHMERE) |
CK1 (06-36) (D07, UK6, Y91, Z75, 39I) |
2010-2013 |
01 |
| 029 |
15238666 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW.) (EBONY) (16.081) |
CK1 (Z75, 19I) |
2010-2013 |
01 |
| 029 |
25901544 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW.) (CASHMERE) |
CK1 (Z75, 39I) |
2010-2013 |
01 |
| 029 |
25844279 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW.) (EBONY) |
CK1 (Z75, 19I) |
2010-2013 |
01 |
| 029 |
25901545 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW.) (CASHMERE) |
CK1 (Z75, 39I) |
2010-2013 |
01 |
| 030 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 29) |
|
2010-2013 |
04 |
| 031 |
11562257 |
RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 29) (19.5 X 30.4 X 1.8) (14.683) |
CK1 (Z75) |
2010-2013 |
03 |
| 032 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 28, 36) |
|
2010-2013 |
10 |
| 033 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 36) (EBONY) (INCLS COVER) |
CK1, 2 (06) (D07) |
2010-2012 |
01 |
| 034 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 36) (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
CK1 (06-36) (Z75) |
2010-2013 |
01 |
| 035 |
|
TRAY, F/FLR CNSL STOW (PART OF 36) |
|
2010-2011 |
|
| 036 |
20898108 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (EBONY) |
CK1 (06) (D07, HP2, UK6, USR, U42, Y91, Z75, 19I) |
2010-2011 |
01 |
| 036 |
20898109 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (CASHMERE) |
CK1 (06) (D07, HP2, UK6, USR, U42, Y91, Z75, 39I) |
2010-2011 |
01 |
| 036 |
20898112 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (CASHMERE) |
CK1 (06) (D07, UK6, USR, U42, Y91, Z75, 39I) (EXC HP2) |
2010-2011 |
01 |
| 036 |
20898117 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (EBONY) |
CK1 (06) (D07, HP2, UK6, USR, Y91, Z75, 19I) (EXC U42) |
2010-2011 |
01 |
| 036 |
20898118 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (CASHMERE) |
CK1 (06) (D07, HP2, UK6, USR, Y91, Z75, 39I) (EXC U42) |
2010-2011 |
01 |
| 036 |
20898120 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (EBONY) |
CK1 (06) (D07, UK6, USR, Y91, Z75, 19I) (EXC HP2, U42) |
2010-2011 |
01 |
| 036 |
20898121 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (CASHMERE) |
CK1 (06) (D07, UK6, USR, Y91, Z75, 39I) (EXC HP2, U42) |
2010-2011 |
01 |
| 036 |
20944039 |
COMPARTMENT, F/FLR (INCLS 14-16, 21, 22, 24, 25, 28, 32-35, 47) (EBONY) |
CK1 (06) (D07, UK6, USR, U42, Y91, Z75, 19I) (EXC HP2) |
2010-2011 |
01 |
| 037 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 39) |
|
2010-2013 |
04 |
| 038 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 39) |
|
2010-2013 |
04 |
| 039 |
20907562 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 37, 38, 40-43, 45, 46) (RUBY) |
CK1 (D07, Y91, Z75, 19I) |
2010-2011 |
01 |
| 039 |
20907563 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 37, 38, 40-43, 45, 46) (CHOCOLATE BURL) |
CK1 (D07, Y91, Z75, 39I) |
2010-2013 |
01 |
| 040 |
15683368 |
BUMPER, F/FLR CNSL COMPT DR (PART OF 39) (16MM STEM, 8MM DIA) (CLOSED-STOP) (FRAME) |
CK1 (06) |
2010-2013 |
02 |
| 041 |
22596346 |
BUMPER, F/FLR CNSL CUP HLDR (PART OF 39) (W/DURAMETER 30) (LENGTH 29MM) (10.242) |
CK1 (06-36) (D07, Z75) |
2010-2013 |
02 |
| 042 |
15132973 |
ASHTRAY, F/FLR CNSL (PART OF 39) |
CK1 (Z75) (EXC ULT) |
2010-2013 |
01 |
| 043 |
15132964 |
HOLDER, F/FLR CNSL CUP (PART OF 39) |
CK1 (D07, Y91, Z75) (EXC ULT) |
2010-2013 |
01 |
| 044 |
11516140 |
LIGHTER, CIG (BLACK) (W/LARGE PLASTIC KNOB END 21.0MM) |
CK1 (D07, Y91, Z75) (EXC ULT) |
2010-2011 |
01 |
| 045 |
25776667 |
RECEPTACLE, ACSRY PWR (PART OF 39) (2 TERMINALS) |
CK1 |
2010-2013 |
01 |
| 046 |
20983936 |
RETAINER, ACSRY PWR RCPT (PART OF 39) (EBONY) (FOR 2010FUTURE W/USR WHEN REPL 25793816 USE T/W CVR 20983937) (ALUMINUM RING) (W/O USB COVER) |
CK1, 2, 3 |
2010-2013 |
02 |
| 047 |
20944418 |
RECEPTACLE, USB (PART OF 36) |
CK1, 2, 3 (D07, USR) |
2010-2013 |
01 |
