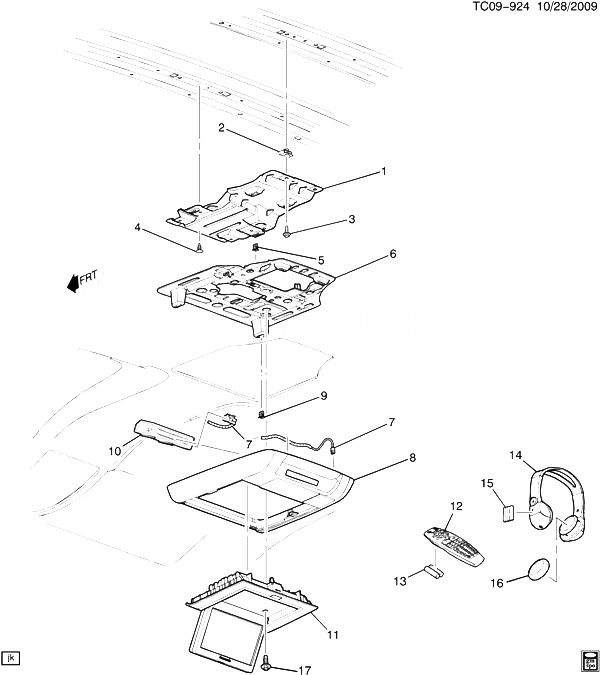

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15256563 |
BRACKET, VIDEO DISPLAY (INCLS 4) (9.273) |
CK109, 2 (06-36) (U42) (EXC CF5) |
2007-2013 |
01 |
| 002 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (VIDEO DISPLAY BRKT) |
|
2007-2013 |
04 |
| 003 |
11570136 |
BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (VIDEO DISPLAY BRKT) |
|
2007-2013 |
04 |
| 004 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 1) |
|
2007-2013 |
02 |
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 6) |
|
2007-2013 |
02 |
| 006 |
25995622 |
RETAINER, RF RR CNSL (INCLS 5) (DVD BACKPLATE - 2ND ROW) |
CK1, 2 (06) (ASF, CJ2, U42, X88, Z75, Z88) |
2007-2013 |
01 |
| 007 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
|
CONSOLE, RF (INCLS 9) (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 8) |
|
2007-2013 |
02 |
| 010 |
22821789 |
MODULE, AUDIO SYS XCVR (ACDelco #22821789) (LABELLED W/OEM PN 25835387.) |
CK1, 2, 3 (CJ2, U42) |
2007-2013 |
01 |
| 011 |
20844135 |
DISPLAY, VIDEO (INCLS 17) (CASHMERE) (ACDelco #20844135) |
CK1, 2 (06) (U42, 33I, 39I) (EXC DNU) |
2009-2013 |
01 |
| 011 |
20792277 |
DISPLAY, VIDEO (INCLS 17) (GRAY) (ACDelco #20792277) |
CK1, 2 (06-36) (U42, Y91, 19I) (EXC DNU) |
2007-2013 |
01 |
| 012 |
20929305 |
CONTROL, VIDEO REM (ACDelco #20929305) |
CK1, 2, 3 (U42) |
2011-2013 |
01 |
| 013 |
|
BATTERY PKG, VIDEO REM CONT |
|
2007-2013 |
|
| 014 |
20830572 |
HEADPHONE, (INCLS 16) (REPLCMT EAR PADS AVBLE THRU UNWIRED TECH AT 888-293-3332) (ACDelco #20830572) |
CK1, 2, 3 (U42) |
2007-2013 |
02 |
| 015 |
|
BATTERY PKG, HEADPHONE |
|
2007-2013 |
|
| 016 |
|
PAD, HEADPHONE EAR (PART OF 14) |
|
2011-2013 |
|
| 017 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (PART OF 11) (9.665) |
|
2007-2013 |
04 |
