| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

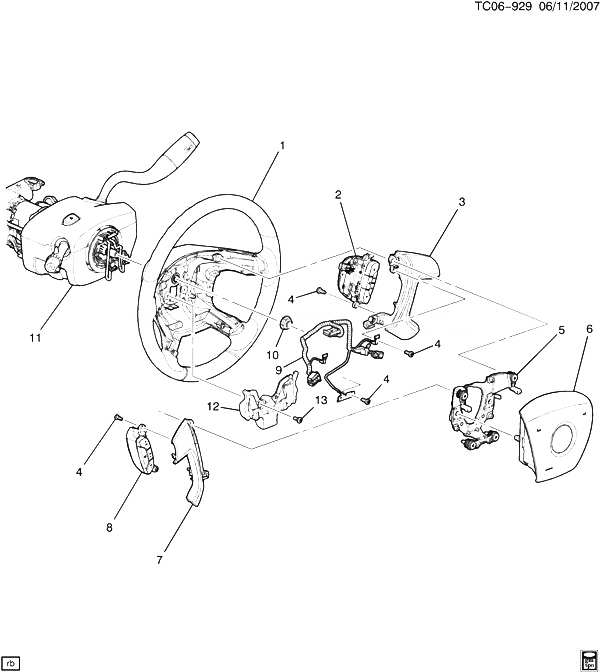

| 001 |
25853080 |
WHEEL, STRG (INCLS 2-5, 7-9) (CASHMERE) |
CK1 (06) (HP2, K34, NP5, UK3, 33I) |
2011-2013 |
01 |
| 002 |
25851954 |
SWITCH, RDO CONT (PART OF 1) (CASHMERE) (9.649) |
CK1 (06) (HP2, K34, NP5, UK3, 33I) |
2009-2013 |
01 |
| 002 |
25851954 |
SWITCH, RDO CONT (PART OF 1) (CASHMERE) |
CK1 (06) (HP2, K34, NP5, UK3, 33I) |
2009-2013 |
01 |
| 003 |
25824700 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) |
CK1, 2, 3 (19I, 33I, 83I, 22I, 84I, 85I, 39I) |
2008-2013 |
01 |
| 003 |
25826421 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (SOLITARE) |
CK1 |
2008-2013 |
01 |
| 004 |
15257875 |
BOLT, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) |
CK1, 2, 3 |
2008-2013 |
04 |
| 005 |
15255031 |
CONTACT, STRG WHL HORN (PART OF 1) |
CK1, 2, 3 |
2008-2013 |
01 |
| 007 |
25824698 |
COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) |
CK1, 2, 3 (19I, 33I, 83I, 84I, 22I, 85I, 39I) |
2008-2013 |
01 |
| 008 |
15824108 |
SWITCH, CRCONT (PART OF 1) (VR DK CASHME) (ACDelco #15824108) |
CK1, 2, 3 (K34, NP5, SLT, 33I, UK3) |
2009-2013 |
01 |
| 010 |
11609658 |
NUT, STRG WHL (M14X1.5-6H THD) (NON-FLANGED NYLON INSERT HEX) (6.518) |
CK1, 2, 3 |
2008-2013 |
01 |
| 011 |
|
COLUMN, STRG (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 012 |
|
DAMPENER, STRG WHL VIB |
|
2009-2013 |
|
| 013 |
11570668 |
BOLT, STRG WHL VIB DPNR (M6X2X15, 12OD) (PAN HEAD, SELF TAPPING) (6.512) |
CK1 (HP2, K34) |
2008-2013 |
02 |
