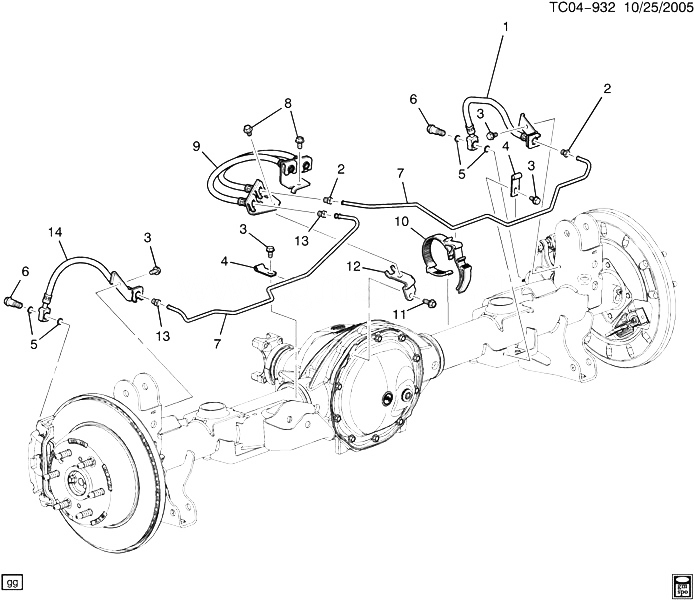

(TC04-932) 2007-2013 CK1(06-36) ТОРМОЗНЫЕ МАГИСТРАЛИ ЗАДНИЕ CADILLAC - ESCALADE ESV (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25906096 HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1526) CK1 (06-36) (JD9, J92) 2008-2013 01
001 25906096 HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1526) CK1 (06-36) (PPV) 2009-2013 01
002 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE) 2007-2013 02
003 11515756 BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (RR BRK C/OVR PIPE BRKT) 2007-2013 04
004 11561240 CLAMP, SINGLE CLOSED-LOOP, DIA 7.25MM, C-TO-C 36.5, WIDTH 20, HOLE DIA 11 (RR BRK C/OVR PIPE) (8.948) 2007-2013 01
005 21012386 WASHER, RR BRK HOSE (PART OF 1, 14) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) CK1, 2, 3 2007-2013 04
006 11569590 BOLT, RR BRK HOSE (PART OF 1, 14) (M10X1X27.5, 16.9THD) (BANJO) CK1 (06-36) 2007-2013 01
007 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) CK1, 2, 3 2007-2013 AR
008 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (RR BRK HOSE BRKT) 2007-2013 02
009 25906094 HOSE, RR BRK (JOUNCE) (ACDelco #176-1541) CK1 (06-36) (AXN, JD9, J92) 2008-2013 01
009 25906095 HOSE, RR BRK (JOUNCE) (ACDelco #176-1525) K1 (06-36) (JD9, J92) (EXC AXN) 2008-2013 01
009 25906095 HOSE, RR BRK (JOUNCE) (ACDelco #176-1525) CK1 (06-36) (PPV) 2009-2013 01
010 15234822 STRAP, RR BRK PIPE CK1 2007-2013 AR
011 12471307 BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) CK1, 2, 3 2007-2013 09
012 20763162 BRACKET, RR BRK C/OVR PIPE CK1 2007-2013 01
013 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE) 2007-2013 02
014 25906097 HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1528) CK1 (06-36) (JD9, J92) 2008-2013 01
014 25906097 HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1528) CK1 (06-36) (PPV) 2009-2013 01
