| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

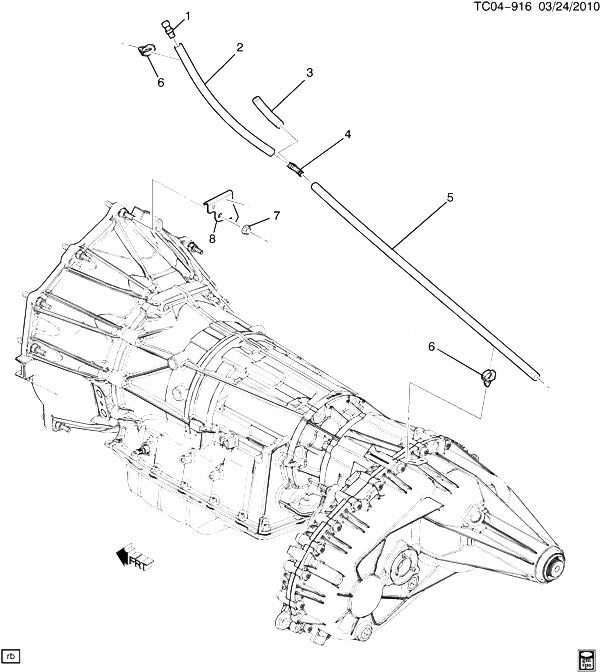

| 001 |
25892279 |
VENT, A/TRNS (PART OF 2) (VENT STEM W/CAP) (4.510) (ACDelco #25892279) |
CK1, 2, 3 (MYC, MYD) |
2008-2013 |
01 |
| 002 |
24256930 |
HOSE, TRANS VENT (INCLS 1, 3-6) |
CK1 (MYC) |
2011-2013 |
01 |
| 003 |
|
HOSE, TRANS VENT (PART OF 2) |
|
2007-2013 |
|
| 004 |
06466355 |
CONNECTOR, TRANS VENT HOSE (PART OF 2) (3.278) |
CK1 (MYC) |
2011-2013 |
01 |
| 005 |
|
HOSE, TRANS VENT (PART OF 2) |
|
2007-2013 |
|
| 006 |
08905794 |
CLIP, (PART OF 2) |
|
2007-2013 |
02 |
| 007 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS VENT HOSE CLIP BRKT) (8.915) (ACDelco #11514596) |
|
2007-2013 |
01 |
| 008 |
24255740 |
BRACKET, TRANS VENT HOSE CLIP (CODE 5740, 9092) |
CK1, 2, 3 (MYC, MYD) |
2011-2013 |
01 |
| 008 |
15854320 |
BRACKET, TRANS VENT HOSE CLIP (ACDelco #15854320) (CODE 0367, 4320) |
CK1, 2, 3 (MYC, MYD, M30, M99) |
2009-2011 |
01 |
| K01 |
15820585 |
HOSE, TRFER CASE VENT |
K1 (MYC, M30, M99) |
2011-2013 |
01 |
