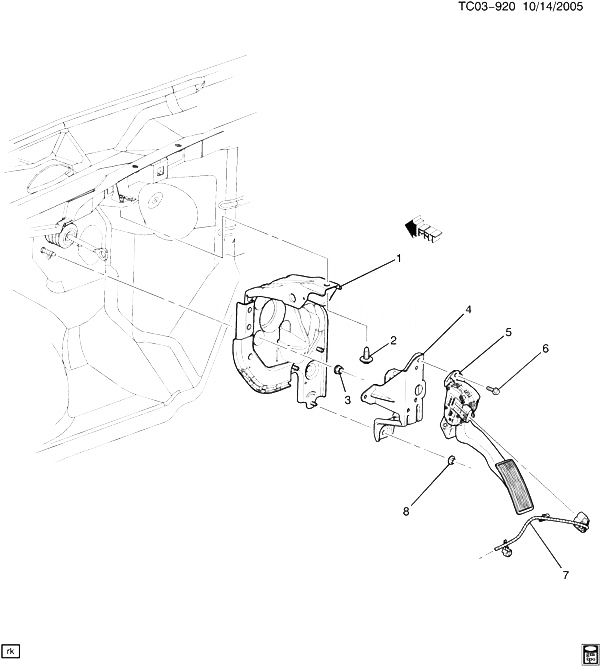

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 007 |
|
HARNESS, FUSE BLK WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
15685170 |
NUT, HEX HD W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (ACCEL PED LVR) (8.917) |
|
2007-2013 |
03 |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (LWR PLNM PNL) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2011 |
01 |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (LWR PLNM PNL) (4.634) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2011 |
01 |
| 002 |
11517182 |
BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2007-2013 |
01 |
| 003 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2007-2013 |
04 |
| 004 |
15268739 |
BRACKET, ACCEL PED |
CK1, 2, 3 (EXC JF4) |
2007-2013 |
01 |
| 005 |
20972082 |
PEDAL, ACCEL (USE ON VEHICLES BUILT WITH 20972082 WHICH HAS GOLD CONNECTOR) (FOR 1ST DES SEE 25832864) |
CK1, 2, 3 (2ND DES) |
2011-2011 |
01 |
| 005 |
25832864 |
PEDAL, ACCEL (INCLS POSITION SENSOR) (MATING CONN W/LEADS USE 13584094) (USE ON VEHICLES BUILT WITH 25832864 WHICH HAS TIN CONNECTOR) (FOR 2ND DES SEE 20972082) |
CK1, 2, 3 (1ST DES) |
2011-2011 |
01 |
| 006 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR) |
|
2007-2013 |
02 |
