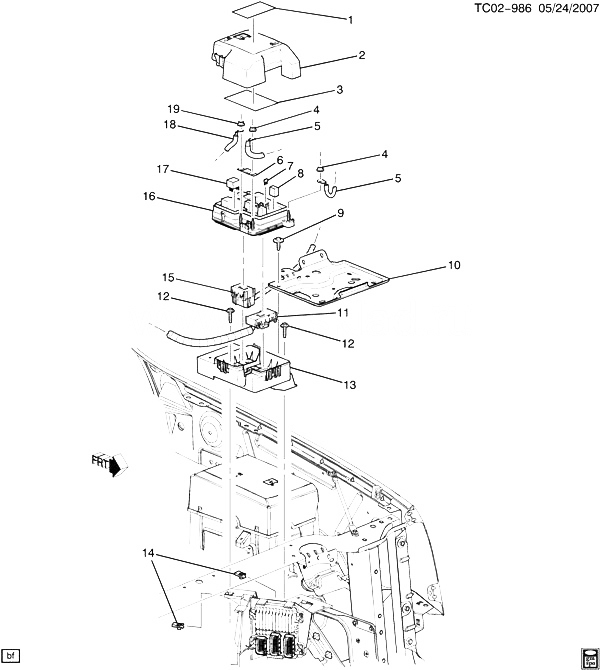

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 009 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ENG WRG HARN FUSE BLK BRKT) |
|
2008-2013 |
01 |
| 010 |
25826079 |
TRAY, BAT (SECONDARY) |
CK1, 2, 3 |
2008-2013 |
01 |
| 011 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 012 |
11610199 |
BOLT, HEX W/CON WA, M6X1X30, 21 THD, 17 OD, 8.8, GMW3359 (ENG WRG HARN FUSE BLK BRKT) |
|
2008-2013 |
02 |
| 014 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (SEE GROUP 03.000 E.C.M. MODULE WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
03 |
| 015 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 017 |
12177236 |
RELAY, FAN CONT (UNDERHOOD BEC) (PART OF 16) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (9.778) (ACDelco #D7065C) |
CK1, 2, 3 |
2008-2011 |
02 |
| 017 |
12193606 |
RELAY, FAN CONT (PART OF 16) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) (ACDelco #12193606) |
CK1, 2, 3 |
2008-2013 |
01 |
| 017 |
19116057 |
RELAY, FAN CONT (PART OF 16) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
CK1, 2, 3 |
2008-2012 |
01 |
| 017 |
15328865 |
RELAY, FAN CONT (PART OF 16) (BLACK) (5-TERM, SPDT 280 MINI, 35AMP) (DAESUNG) (ACDelco #D1724A) |
CK1, 2, 3 (EXC E29) |
2008-2013 |
01 |
| 018 |
|
CABLE, BAT POS (SEE GROUP 02.000 BATTERY CABLES FOR DETAILED ILLUSTRATED VIEW) (2.215) |
|
2008-2013 |
|
| 019 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) |
|
2008-2013 |
01 |
| K01 |
25960205 |
COVER, ACSRY WRG J/BLK (INCLS 1-3) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 001 |
25960204 |
LABEL, BAT INFO (PART OF 2) (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 002 |
25801752 |
COVER, ENG WRG HARN J/BLK (INCLS 1, 3) (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 003 |
25859530 |
LABEL, FUSE BLK (PART OF 2) (*KIT1) (8.808) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 003 |
25859530 |
LABEL, FUSE BLK (PART OF 2) (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 004 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX BAT POS CBL) |
|
2008-2013 |
02 |
| 005 |
|
CABLE, AUX BAT POS (SEE GROUP 02.000 BATTERY CABLES FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
88909753 |
FUSE, MINI, 10 AMP, RED (PART OF 16) |
|
2008-2013 |
01 |
| 007 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 16) (ACDelco #ATM15-25) |
|
2008-2013 |
07 |
| 007 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 16) (ACDelco #ATM25-25) |
|
2008-2013 |
01 |
| 008 |
|
FUSE, 60AMP, LOW PROFILE J CASE, YELLOW (PART OF 16) |
|
2008-2013 |
04 |
| 008 |
|
FUSE, 40AMP, LOW PROFILE J CASE, GREEN (PART OF 16) |
|
2008-2013 |
AR |
