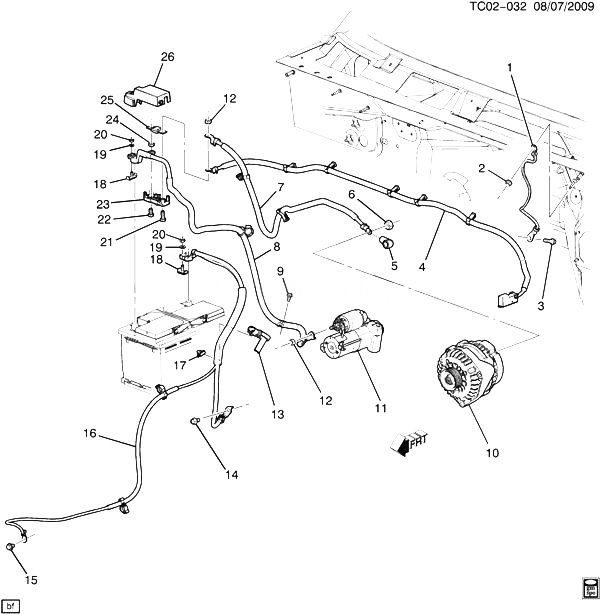

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG GND STRP) |
|
2010-2013 |
01 |
| 003 |
11609619 |
BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG GND STRP) |
|
2010-2013 |
01 |
| 004 |
22850357 |
CABLE, BAT POS (ACDelco #22850357) |
CK1, 2, 3 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) |
2010-2013 |
01 |
| 005 |
|
BOOT, WRG HARN TERM (PART OF 7) |
|
2010-2013 |
|
| 006 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) |
|
2010-2013 |
01 |
| 007 |
20943125 |
CABLE, GEN BAT JPR (INCLS 5) (ACDelco #20943125) |
CK1, 2, 3 (LC9, LMG, L20, L9H, L94, KG3, KW1) |
2011-2012 |
01 |
| 008 |
22790285 |
CABLE, STRTR SOL (INCLS 18-26) (ACDelco #22790285) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) |
2011-2013 |
01 |
| 009 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2010-2013 |
01 |
| 010 |
|
GENERATOR, (SEE GROUP 02.000 GENERATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 011 |
|
STARTER, (SEE GROUP 02.000 STARTER MOTOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
CK1, 2, 3 |
2010-2013 |
02 |
| 013 |
13505369 |
SENSOR, BAT CUR (PART OF 16) (FOR VEH WITH 5V SUPPLY FROM BCM) (FOR 1ST DES SEE 10306471) |
CK1 (2ND DES) |
2011-2011 |
01 |
| 013 |
10306471 |
SENSOR, BAT CUR (PART OF 16) (FOR VEH WITH 10V SUPPLY FROM BCM) (FOR 2ND DES SEE 13505369) |
CK1 (1ST DES) |
2011-2011 |
01 |
| 014 |
11561048 |
BOLT, HEX W/FL WA-3/8-16X.625, .82 OD, GM275 STL, GMW3200 FINISH (ENG WRG HARN GND) |
|
2010-2013 |
01 |
| 015 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FWD LP WRG HARN GND) |
|
2010-2013 |
02 |
| 016 |
20967455 |
CABLE, BAT NEG (INCLS 13, 17-20) (ACDelco #20967455) |
CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) |
2010-2013 |
01 |
| 017 |
19116354 |
CLIP, BAT CBL (PART OF 16) |
CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) |
2011-2013 |
01 |
| 018 |
19116852 |
BOLT KIT, BAT CBL TERM (PART OF 8, 16) (INCLS 19, 20) |
CK1, 2, 3 |
2010-2013 |
01 |
| 019 |
|
WASHER, BAT CBL TERM (PART OF 8, 16, 18) |
|
2010-2013 |
|
| 020 |
|
NUT, BAT CBL TERM (PART OF 8, 16, 18) |
|
2010-2013 |
|
| 021 |
|
BOLT, BAT CBL TERM (PART OF 8) |
|
2010-2013 |
|
| 022 |
|
BOLT, BAT CBL TERM (PART OF 8) |
|
2010-2013 |
|
| 023 |
20929135 |
BLOCK, BAT POS CBL JUNC (PART OF 8) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) |
2011-2013 |
01 |
| 024 |
|
NUT, BAT CBL TERM (PART OF 8) |
|
2010-2013 |
|
| 025 |
15305191 |
FUSE, 175 AMP MEGA (PART OF 8) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2010-2013 |
01 |
| 026 |
20929134 |
COVER, BAT POS CBL TERM (PART OF 8) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) |
2011-2013 |
01 |
| 026 |
25797040 |
COVER, BAT POS CBL TERM (PART OF 8) (TOP) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) |
2011-2013 |
01 |
| 026 |
25888958 |
COVER, BAT POS CBL TERM (BOTTOM) (PART OF 8) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) |
2011-2013 |
01 |
