| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

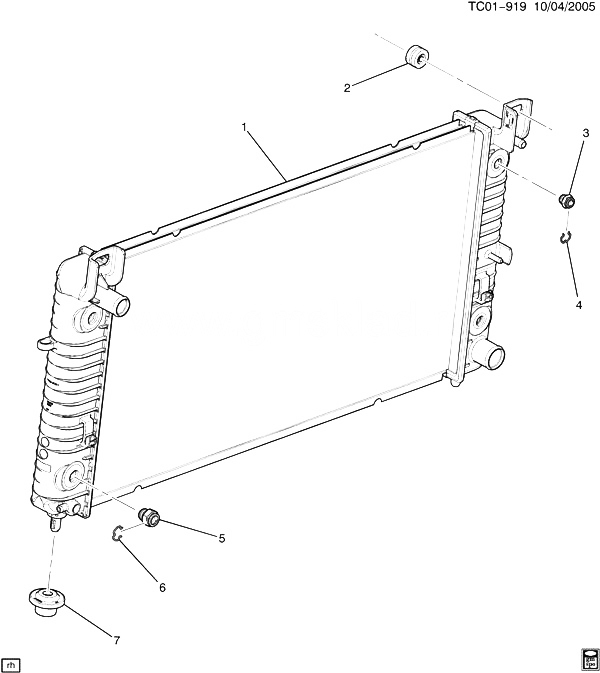

| 001 |
22840116 |
RADIATOR, (CORE SIZE 34IN X 17 1/4IN X 1 1/8IN, TRANS OIL CLR) (INCLS 2-7) (CODE CBE, JHW, EBR, AJM, SDD, APB, ARZ, AXU, AAF9, 0116) (ACDelco #21649) (ALL MAKES) |
CK1 (L94, MYC, Z75) |
2010-2013 |
01 |
| 002 |
|
INSULATOR, RAD UPR (PART OF 1) |
|
2010-2013 |
|
| 003 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1) (INCLS 4) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) |
CK1, 2, 3 (MYC, MYD, M30) |
2009-2013 |
02 |
| 004 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 1, 3) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
CK1 (L20, L94) |
2010-2013 |
01 |
| 005 |
15190249 |
CONNECTOR, ENG OIL CLR HOSE (PART OF 1) (INCLS 6) (ALUMINUM) (ACDelco #15190249) |
CK1, 2, 3 |
2007-2013 |
02 |
| 006 |
15724727 |
RETAINER, TRANS FLUID CLR PIPE CONN (PART OF 1, 5) (1/2 WIRE CLIP) (1.540) |
CK1, 2, 3 |
2007-2013 |
01 |
| 007 |
89019121 |
INSULATOR, RAD LWR (PART OF 1) |
CK1 |
2007-2013 |
02 |
