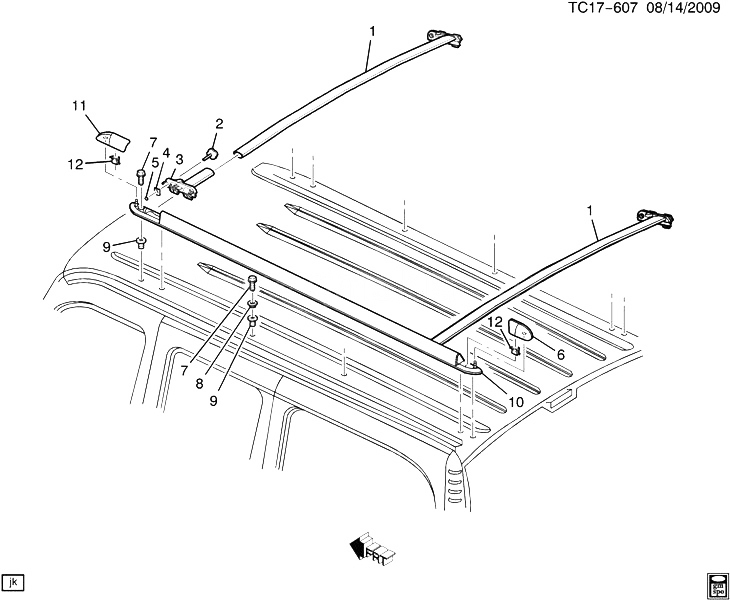

(TC17-607) 2008-2013 CK109(06) БАГАЖНИК (CADILLAC Z75, V54) CADILLAC - ESCALADE ESV (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15838222 RAIL, LUGG CARR CR (INCLS 2-5) (BLACK) K1 (V1K, Y91, Z75, Z88) 2007-2013 02
002 KNOB, LUGG CARR CR RL ADJR (PART OF 1) 2008-2013
003 ADJUSTER, LUGG CARR CR RL (PART OF 1) 2008-2013
004 PLATE, LUGG CARR CR RL ADJR LKG (PART OF 1) 2008-2013
005 RETAINER, LUGG CARR CR RL ADJR LKG PLT (PART OF 1) 2008-2013
006 COVER, LUGG CARR S/RL RR FIN (*KIT1, KIT2) 2008-2013
007 11609900 SCREW, PAN WASH, M6X1X39, 31 THD, 12.25 OD, 8.8, GMW4700, TORX, MACH, PPOI (LUGG CARR SUPT) 2007-2013 10
008 15916756 PLATE, LUGG CARR S/RL BRKT ANC K1 (06) 2007-2013 AR
009 11518684 NUT, LUGG CARR SUPT (M6X1X16) (HEX CHROME FREE FINISH) K1, 2, 3 2007-2013 AR
010 25892759 RAIL, LUGG CARR SI (CHROMED SS) (INCLS GASKET) (W/O COVER) (*KIT1) CK109 (06) (V54, Y91, Z75, Z88) 2008-2013 01
010 20806046 RAIL, LUGG CARR SI (BUFFED SS) (INCLS GASKET) (W/O COVER) (*KIT1) K109 (06) (V54, Y91, Z75, Z88) 2007-2013 01
011 COVER, LUGG CARR S/RL FRT FIN (*KIT1, KIT3) 2008-2013
012 11570521 RETAINER, LUGG CARR S/RL FIN CVR (PUSH IN) (*KIT1, KIT2, KIT3) K1 (06) (Y91) 2007-2013 02
K01 20806073 RAIL KIT, LUGG CARR SI (INCLS 6, 10-12) (BUFFED SS) (INCLS GASKET, COVER) CK109 (06) (V54, Y91, Z75, Z88) 2008-2013 01
K01 20806074 RAIL KIT, LUGG CARR SI (INCLS 6, 10-12) (BUFFED SS) (INCLS GASKET, COVER) CK109 (06) (V54, Y91, Z75, Z88) 2008-2013 01
K02 25832915 COVER KIT, LUGG CARR S/RL ACC HOLE RR (INCLS 6, 12) (INCLS PAINT TO MATCH CVR 25787589) K1 (06) (V54, Y91, Z75, Z88) 2007-2013 01
K02 25832914 COVER KIT, LUGG CARR S/RL ACC HOLE RR (INCLS 6, 12) (INCLS PAINT TO MATCH CVR 25787590) K1 (06) (V54, Y91, Z75, Z88) 2007-2013 01
K03 25832916 COVER KIT, LUGG CARR S/RL ACC HOLE FRT (INCLS 11, 12) (PAINT TO MATCH) K1 (06) (V54, Y91, Z75, Z88) 2007-2013 01
K03 25832917 COVER KIT, LUGG CARR S/RL ACC HOLE FRT (INCLS 11, 12) (PAINT TO MATCH) K1 (06) (V54, Y91, Z75, Z88) 2007-2013 01
