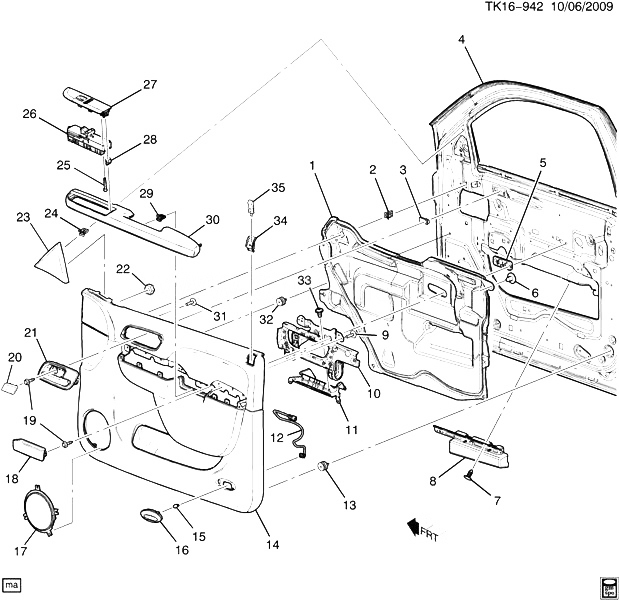

(TK16-942) 2010-2013 CK1(06-36) ОТДЕЛКА ДВЕРИ/SIDE FRONT-PASSENGER (CADILLAC Z75) CADILLAC - ESCALADE ESV (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25889238 DEFLECTOR, FRT S/D WAT (PART OF 14) CK1, 2 (06-36) 2010-2013 01
002 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 14) 2010-2013 01
003 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D I/S HDL) 2010-2013 02
004 DOOR, FRT SI (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
005 11570281 NUT, FRT S/D TR PNL CK1, 2, 3 2010-2013 01
006 15952332 RETAINER, FRT S/D WAT DFL (PART OF 14) (15MM) (16.165) CK1, 2, 3 2010-2013 03
007 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (PART OF 8) 2010-2013 AR
008 20928038 ABSORBER, FRT S/D OTR PNL ENGY (INCLS 7) CK1, 2 (06-36) 2010-2010 01
009 11569994 BOLT, FRT S/D I/S HDL (PART OF 14) (M4.2X1.41X16) (16.115) CK1 (06) (ULT, Z75) 2010-2013 02
010 BRACKET, FRT S/D A/RST (PART OF 14) 2010-2013
011 COVER, FRT S/D A/RST OPG (PART OF 14) 2010-2013
012 HARNESS, FRT S/D CTSY WRNG LP P/W WRG (PART OF 16) 2010-2013
013 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 14) 2010-2013 07
014 20954923 PANEL, FRT S/D TR (INCLS 1, 2, 6, 9-11, 13, 17, 21, 22, 29-34) (CASHMERE) CK1 (06-36) (Z75, 39I) (EXC XA1) 2010-2011 01
014 22818533 PANEL, FRT S/D TR (INCLS 1, 2, 6, 9-11, 13, 17, 21, 22, 29-34) (EBONY) CK1 (06-36) (Z75, 19I) (EXC XA1) 2010-2011 01
014 22818545 PANEL, FRT S/D TR (INCLS 1, 2, 6, 9-11, 13, 17, 21, 22, 29-34) (LINEN) CK1 (06) (ULT, Z75, 41I) 2010-2013 01
015 09425542 BULB, LAMP #168 (PART OF 16) (ACDelco #L168) 2010-2013 01
016 15876517 LAMP, CTSY (INCLS 12, 15) (FRT S/D) CK1 (06-36) (Z75) 2010-2013 01
017 15939208 GRILLE, RDO FRT SPKR (PART OF 14) (EBONY) (W/O CHROME RING) (9.665) CK1 (06-36) (Z75, 19I) (EXC XA1) 2010-2011 01
017 22795287 GRILLE, RDO FRT SPKR (PART OF 14) (EBONY) CK1 (06-36) (Z75, 19I) 2010-2013 01
017 22795288 GRILLE, RDO FRT SPKR (PART OF 14) (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2013 01
017 22795289 GRILLE, RDO FRT SPKR (PART OF 14) (LINEN) CK1 (06) (Z75, 41I) 2010-2013 01
018 20934187 COVER, FRT S/D T/PNL (EBONY) CK1 (06-36) (19I) 2010-2013 02
018 20934190 COVER, FRT S/D T/PNL (LINEN) CK1 (06) (Z75, 41I) 2010-2013 02
018 22874310 COVER, FRT S/D T/PNL (CASHMERE) CK1 (06-36) (33I, 39I) 2010-2013 02
019 11570136 BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) 2010-2013 06
020 25906777 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2013 01
020 25897912 COVER, FRT S/D I/S HDL BZL FIN (EBONY) CK1, 2 (06) (19I) 2010-2013 01
020 25897916 COVER, FRT S/D I/S HDL BZL FIN (COCOA) CK1 (06) (39I, 41I) 2010-2013 01
021 15920704 HANDLE, FRT S/D I/S (PART OF 14) (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) (EXC ULT) 2010-2013 01
021 25906817 HANDLE, FRT S/D I/S (PART OF 14) (CASHMERE) CK1 (06-36) (Z75, 39I) 2010-2013 01
021 22855634 HANDLE, FRT S/D I/S (PART OF 14) (CHROME HANDLE BEZEL) CK1 (06) (ULT, Z75) 2010-2013 01
022 15905945 FILLER, FRT S/D T/PNL (PART OF 14) CK1 (06-36) (Z75) 2010-2010 04
023 25857287 PANEL, FRT S/D UPR FRT TR (INCLS 24) (COCOA) CK1 (Z75, 41I) 2010-2013 01
023 25906771 PANEL, FRT S/D UPR FRT TR (INCLS 24) (CASHMERE) CK1 (Z75, 39I) 2010-2013 01
023 25857286 PANEL, FRT S/D UPR FRT TR (INCLS 24) (EBONY) CK1 (Z75, 19I) 2010-2013 01
024 25870922 RETAINER, FRT S/D UPR FRT T/PNL (PART OF 25) CK1, 2, 3 2010-2013 02
025 11562492 BOLT, FRT S/D A/RST SW MT PLT (*KIT1) CK1, 2, 3 2010-2013 03
026 20835556 SWITCH, DR LK SI WDO (*KIT1) CK1 (Z75) 2010-2013 01
027 22769989 PLATE, FRT S/D ACSRY SW MT (BLACK) (*KIT1) CK1 (ULT, Z75, 19I) 2010-2013 01
027 20922544 PLATE, FRT S/D ACSRY SW MT (MOCHA) (*KIT1) CK1 (Z75, 39I) (EXC ULT) 2010-2013 01
027 20922543 PLATE, FRT S/D ACSRY SW MT (WALNUT) (*KIT1) CK1 (Z75, 19I) (EXC ULT) 2010-2013 01
027 20922545 PLATE, FRT S/D ACSRY SW MT (COCOA) (*KIT1) CK1 (ULT, Z75, 41I) 2010-2013 01
027 22968531 PLATE, FRT S/D A/RST SW MT (CRIMSON WALNUT) (*KIT1) CK1 (Z75, 19I) 2010-2011 01
027 22968532 PLATE, FRT S/D A/RST SW MT (MOCHA WALNUT) (*KIT1) CK1 (Z75, 39I) 2010-2011 01
027 22968533 PLATE, FRT S/D A/RST SW MT (NEW PLATINUM COCOA) (*KIT1) CK1 (ULT, Z75, 41I) 2010-2013 01
028 10410811 CLIP, FRT S/D C/LP (*KIT1) (10.777) CK1, 2, 3 2010-2013 02
029 RETAINER, FRT S/D A/RST (PART OF 14) 2010-2013
030 ARMREST, FRT S/D (PART OF 14) 2010-2013
031 11569994 BOLT, FRT S/D I/S HDL (PART OF 14) (M4.2X1.41X16) (16.115) CK1 (06) (ULT, Z75) 2010-2013 02
032 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 14) 2010-2013 04
033 BOLT, FRT S/D WDO UPR W/STR RET (PART OF 14) 2010-2013
034 COVER, FRT S/D LKG ROD OPG (PART OF 14) 2010-2013
035 15844617 KNOB, FRT S/D LKG ROD (CASHMERE) CK1, 2, 3 (33I) 2010-2013 02
035 15844616 KNOB, FRT S/D LKG ROD (EBONY) CK1, 2, 3 (19I, 31I, 84I, 85I) 2010-2011 02
035 15844620 KNOB, FRT S/D LKG ROD (COCOA) CK1 (41I) 2010-2013 02
035 20785356 KNOB, FRT S/D LKG ROD (CASHMERE) CK1 (Z75, 39I) 2010-2013 02
K01 22769989 PLATE, FRT S/D ACSRY SW MT (INCLS 25-28) (BLACK) CK1 (ULT, Z75, 19I) 2010-2013 01
K01 20922544 PLATE, FRT S/D ACSRY SW MT (INCLS 25-28) (MOCHA) CK1 (Z75, 39I) (EXC ULT) 2010-2013 01
K01 20922543 PLATE, FRT S/D ACSRY SW MT (INCLS 25-28) (WALNUT) CK1 (Z75, 19I) (EXC ULT) 2010-2013 01
K01 20922545 PLATE, FRT S/D ACSRY SW MT (INCLS 25-28) (COCOA) CK1 (ULT, Z75, 41I) 2010-2013 01
