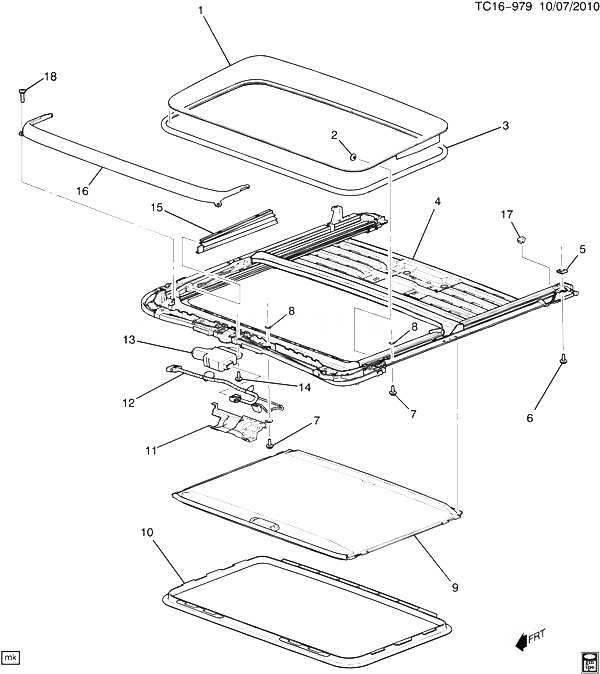

(TC16-979) 2007-2013 CK1,2(06-36) ПОТОЛОЧНЫЙ ЛЮК (CF5) CADILLAC - ESCALADE ESV (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22815953 WINDOW, SUN RF (INCLS 2, 3) CK109, 2 (06-36) (CF5) 2010-2013 01
002 11611382 BOLT, SUN RF WDO (PART OF 1) (M5X.9X6.4) CK1, 2 (06-36) (CF5) 2007-2013 04
003 15837594 SEAL, SUN RF WDO (PART OF 1) CK1, 2 (06-36) (CF5) 2007-2013 01
004 25942825 FRAME, SUN RF (INCLS 8) (W/O MOTOR) CK109, 2 (06-36) (CF5) 2007-2013 01
005 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (SUN RF MDL) 2007-2013 02
006 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (SUN RF MDL) 2007-2013 02
007 11514623 BOLT, HEX W/CON WA, M6X1X20 (SUN RF MDL) 2007-2013 AR
008 NUT, SUN RF HSG BRKT (PART OF 4) 2007-2013
009 15905311 SUNSHADE, SUN RF (LINEN) CK107, 109 (06) (CF5, 41I) 2008-2013 01
009 15846534 SUNSHADE, SUN RF (GRAY) CK1, 2 (06-36) (CF5, 19I, 83I) 2009-2013 01
009 15837588 SUNSHADE, SUN RF (CASHMERE) CK1, 2 (06-36) (CF5, 33I, 39I) 2009-2013 01
010 25874715 MOLDING, SUN RF PNL/WDO GARN (LINEN) CK1 (CF5, 41I) 2008-2013 01
010 25874713 MOLDING, SUN RF PNL/WDO GARN (CASHMERE) CK1, 2 (06-36) (CF5, 33I, 39I) 2009-2013 01
010 25874712 MOLDING, SUN RF PNL/WDO GARN (GRAY) CK1 (06-36) (CF5, 19I, 83I) 2009-2013 01
011 15837591 BRACKET, SUN RF MDL CK1, 2 (06-36) (CF5) 2007-2013 01
012 15837589 HARNESS, SUN RF WRG CK1, 2 (06-36) (CF5) 2007-2013 01
013 15934722 MOTOR, SUN RF ACTR (ACDelco #15934722) CK1 (06-36) 2007-2013 01
014 BOLT, SUN RF ACTR MOT 2008-2013
015 20823530 COVER, SUN RF PNL SI OPG CLOSEOUT (BLACK) CK1 (06-36) (CF5) 2007-2013 01
015 20823531 COVER, SUN RF PNL SI OPG CLOSEOUT (BLACK) CK1 (06-36) (CF5) 2007-2013 01
016 15837592 DEFLECTOR, SUN RF AIR CK1, 2 (06-36) 2007-2013 01
017 15924423 STOP, SUN RF S/S (12.810) CK109 (06-36) (CF5) 2007-2013 01
018 15924424 BOLT, SUN RF A/DFL CK1, 2 (CF5) 2007-2013 02
