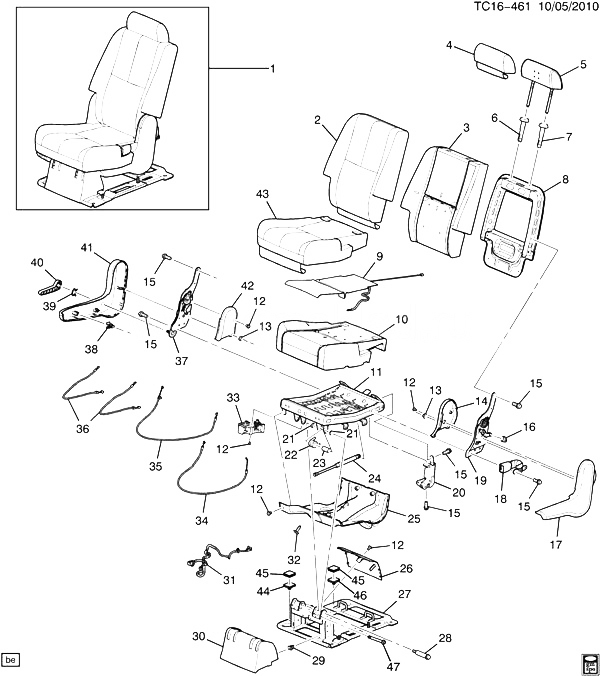

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15843853 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960263) |
CK109 (06) (AM8, ARS, KA6, Z75, 194) (1ST DES) |
2010-2010 |
01 |
| 001 |
20960263 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15843853) |
CK109 (06) (AM8, ARS, KA6, Z75, 194) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960267 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25908008) |
CK109 (06) (AM8, ARS, KA6, Z75, 394) (2ND DES) |
2010-2010 |
01 |
| 001 |
25908008 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960267) |
CK109 (06) (AM8, ARS, KA6, Z75, 394) (1ST DES) |
2010-2010 |
01 |
| 002 |
25908033 |
COVER, R/SEAT BK (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) |
2009-2013 |
01 |
| 002 |
25931396 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, KA6, KB6, 196) (EXC HP2) |
2009-2010 |
01 |
| 002 |
25931397 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) |
2009-2013 |
01 |
| 002 |
25931398 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 002 |
15865525 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865526 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865527 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2013 |
01 |
| 002 |
20895604 |
COVER, R/SEAT BK (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) |
2007-2013 |
01 |
| 003 |
15291598 |
PAD, R/SEAT BK |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 004 |
|
COVER, R/SEAT H/RST SUPT (PART OF 5) |
|
2007-2013 |
|
| 005 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK109, 2 (06) (AM8, 196, 226, 846) |
2009-2010 |
02 |
| 005 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK109, 2 (06) (AM8, 316, 336) |
2009-2010 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 394) |
2007-2010 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2010 |
02 |
| 005 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK109, 2 (06) (AM8, 193) |
2007-2010 |
02 |
| 005 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK109, 2 (06) (AM8, 333) |
2009-2010 |
02 |
| 005 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 194) (EXC AX4) |
2007-2010 |
02 |
| 005 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 197) |
2009-2010 |
02 |
| 006 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2007-2011 |
02 |
| 006 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I) |
2007-2011 |
02 |
| 006 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I, 84I) |
2009-2010 |
02 |
| 006 |
20912676 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2007-2011 |
02 |
| 007 |
20912679 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1 (06) (AM8, 19I, 22I) |
2007-2011 |
02 |
| 007 |
20912680 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (33I, 39I) |
2007-2011 |
02 |
| 007 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2, 3 (83I, 84I) |
2007-2011 |
02 |
| 008 |
15269763 |
FRAME, R/SEAT BK |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 009 |
15824761 |
HEATER, R/SEAT CUSH |
CK1, 2 (06) (KA6) |
2007-2013 |
01 |
| 010 |
15291600 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 011 |
15269765 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 012 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2013 |
09 |
| 013 |
11562384 |
NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2007-2013 |
02 |
| 014 |
15279649 |
COVER, R/SEAT BK HGE FIN (EBONY) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 014 |
15279650 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) |
CK109 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 014 |
15279651 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 015 |
11562378 |
BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
12 |
| 016 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (16.716) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963265) |
CK1, 2, 3 (1ST DES) |
2010-2010 |
02 |
| 016 |
20963265 |
KNOB, R/SEAT LAT (EBONY) (INNER) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15279464) |
CK1, 2 (06) (2ND DES) |
2010-2010 |
02 |
| 017 |
15279639 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (EBONY) (INBOARD, OUTER) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 017 |
15279640 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (CASHMERE) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 017 |
15279641 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (TITANIUM) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 018 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 018 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2013 |
01 |
| 018 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 019 |
25896458 |
LATCH, R/SEAT BK (INBOARD) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
01 |
| 020 |
15275892 |
LATCH, R/SEAT RSR (RH SEAT I/B O/B) |
CK109, 2 (06) (AM8) |
2007-2013 |
02 |
| 021 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2007-2013 |
08 |
| 022 |
15275901 |
SPRING, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) |
2007-2011 |
01 |
| 023 |
15275903 |
SPRING, R/SEAT RECL (MANDREL) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
01 |
| 024 |
15275905 |
STRUT, R/SEAT |
CK1, 2 (06) (AM8) |
2007-2011 |
02 |
| 025 |
22772261 |
PANEL, R/SEAT CUSH TR (TITANIUM) |
CK109, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 025 |
22772259 |
PANEL, R/SEAT CUSH TR (EBONY) |
CK109, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 025 |
22772260 |
PANEL, R/SEAT CUSH TR (CASHMERE) |
CK109, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 026 |
15279684 |
COVER, R/SEAT RSR FIN (EBONY) (REAR) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 026 |
15279685 |
COVER, R/SEAT RSR FIN (CASHMERE) (REAR) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 026 |
15279686 |
COVER, R/SEAT RSR FIN (TITANIUM) (REAR) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 027 |
15269774 |
RISER, R/SEAT |
CK109, 2 (06) (AM8) |
2007-2011 |
01 |
| 028 |
11562379 |
BOLT, R/SEAT HGE (M10X1.5X92) |
CK1, 2, 3 (AM8) |
2007-2011 |
02 |
| 029 |
25784330 |
RETAINER, R/SEAT RSR FIN CVR (PART OF 30) |
CK1, 2 (06) |
2007-2011 |
04 |
| 030 |
15279674 |
COVER, R/SEAT RSR FIN (INCLS 29) (EBONY) (FRONT) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 030 |
15279675 |
COVER, R/SEAT RSR FIN (INCLS 29) (CASHMERE) (FRONT) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 030 |
15279676 |
COVER, R/SEAT RSR FIN (INCLS 29) (TITANIUM) (FRONT) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 031 |
15843763 |
HARNESS, ST RECL WRG (ELEMENT) |
CK107, 109 (06) (AM8, ARS, KA6, Z75) |
2009-2013 |
01 |
| 032 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
02 |
| 032 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
02 |
| 032 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2007-2013 |
02 |
| 033 |
15824750 |
ACTUATOR, R/SEAT RECL (INCLS CABLE) |
CK1, 2 (06) (AM8, ARS) |
2007-2013 |
01 |
| 034 |
15942229 |
CABLE, R/SEAT BK LAT |
CK1, 2 (06) (AM8, ARS) |
2007-2011 |
01 |
| 035 |
25816416 |
CABLE, R/SEAT LAT (INBOARD) (INBOARD MASTER SYNC) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
01 |
| 036 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2011 |
02 |
| 038 |
25784329 |
RETAINER, R/SEAT RECL OTR FIN CVR (PUSH IN) (PART OF 17, 41) |
CK1, 2 (06) |
2007-2013 |
01 |
| 039 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 40) |
|
2007-2013 |
|
| 040 |
15279429 |
HANDLE, R/SEAT RECL (INCLS 39) (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2013 |
01 |
| 040 |
25858446 |
HANDLE, R/SEAT RECL (INCLS 39) (COCOA) |
CK1 (06) (AM8, 41I) |
2009-2013 |
01 |
| 040 |
15279419 |
HANDLE, R/SEAT RECL (INCLS 39) (EBONY) |
CK1, 2 (06) (19I) |
2007-2013 |
01 |
| 040 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) |
CK1, 2 (06) (33I) |
2007-2013 |
01 |
| 040 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) |
CK1 (06) (39I) |
2007-2013 |
01 |
| 041 |
15279619 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (EBONY) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 041 |
15279620 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 041 |
15279621 |
COVER, R/SEAT BK HGE FIN (INCLS 38) (TITANIUM) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 042 |
15279629 |
COVER, R/SEAT BK HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I) |
2009-2011 |
01 |
| 042 |
15279630 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2011 |
01 |
| 042 |
15279631 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2011 |
01 |
| 043 |
25908034 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) |
2009-2013 |
01 |
| 043 |
25931402 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, KA6, KB6, 196) (EXC HP2) |
2009-2010 |
01 |
| 043 |
25931403 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) |
2009-2013 |
01 |
| 043 |
25931404 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 043 |
15865714 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
15865715 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
15865716 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
20905442 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) (EXC HP2) |
2009-2013 |
01 |
| 044 |
25784330 |
RETAINER, R/SEAT RSR FIN CVR |
CK1, 2 (06) |
2007-2013 |
04 |
| 045 |
25836846 |
HOOK, R/SEAT RSR |
CK1, 2 (06) (AM8) |
2007-2011 |
04 |
| 046 |
25784330 |
RETAINER, R/SEAT RSR FIN CVR |
CK1, 2 (06) |
2007-2013 |
04 |
| 047 |
11570031 |
PIN, R/SEAT HGE (6 X 1 X 78) |
CK1, 2 (06) |
2007-2013 |
01 |
| 047 |
11570032 |
PIN, R/SEAT HGE (6 X 1 X 98) |
CK1, 2 (06) |
2007-2013 |
01 |
