| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

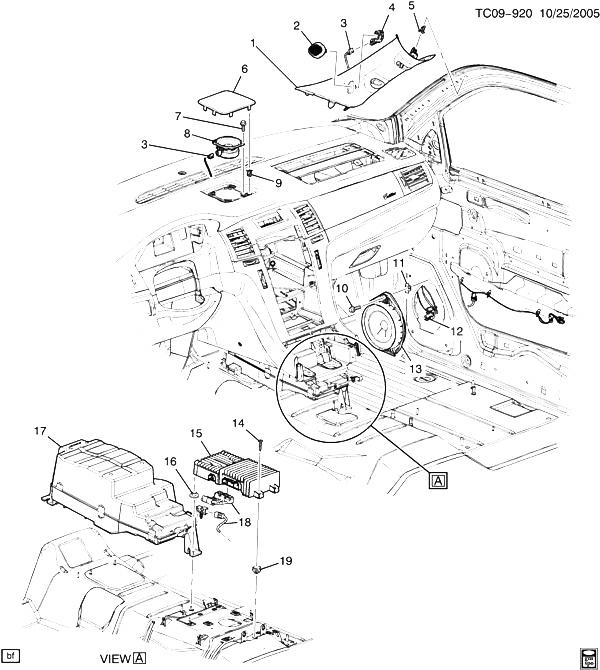

| 001 |
|
MOLDING, W/S SI GARN (INCLS 2, 4, 5) (SEE GROUP 16.000 TRIM/INTERIOR FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
25889857 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2013 |
01 |
| 002 |
25889863 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2013 |
01 |
| 002 |
25889853 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1 (UQS, Z75, 19I) |
2007-2013 |
01 |
| 002 |
25889859 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQA, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889859 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1 (UQS, Z75, 19I) |
2007-2013 |
01 |
| 002 |
25889853 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQA, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889861 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1, 2 (06-36) (UQA, 33I) |
2009-2013 |
01 |
| 002 |
25889861 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1 (06-36) (UQS, Z75, 39I) |
2009-2011 |
01 |
| 002 |
25889855 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) |
CK1, 2 (06-36) (UQA, 33I) |
2009-2013 |
01 |
| 002 |
25889855 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) |
CK1 (UQS, Z75, 39I) |
2009-2013 |
01 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
15186674 |
SPEAKER, RDO W/S SI G/MLDG (PART OF 1) (ACDelco #15186674) |
CK1, 2, 3 (UQA, UQS, UQ3) |
2007-2013 |
02 |
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1) |
|
2007-2013 |
01 |
| 006 |
15221850 |
GRILLE, RDO FRT SPKR (INCLS 9) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2007-2013 |
01 |
| 006 |
15221851 |
GRILLE, RDO FRT SPKR (INCLS 9) (COCOA) |
CK1 (06-36) (Z75, 39I, 41I) |
2009-2013 |
01 |
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
02 |
| 008 |
25798963 |
SPEAKER, RDO FRT (3.5) (9.665) (ACDelco #25798963) |
CK1 (UQA, UQS, Y91, Z75, Z88) |
2007-2010 |
01 |
| 009 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 6) |
|
2007-2013 |
04 |
| 010 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
02 |
| 011 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 012 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 013 |
15905042 |
SPEAKER, RDO FRT S/D (ACDelco #15905042) |
CK1, 2, 3 (UQA, UQS) |
2007-2013 |
02 |
| 014 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT S/D SPKR) (9.665) |
|
2007-2013 |
02 |
| 015 |
20944419 |
AMPLIFIER, RDO SPKR (ACDelco #20944419) |
CK1 (06) (ULT, USR, Z75) |
2010-2013 |
01 |
| 015 |
20944419 |
AMPLIFIER, RDO SPKR (ACDelco #20944419) |
CK1 (06) (D07, UK6, USR, Y91, Z75) (EXC HP2) |
2010-2013 |
01 |
| 015 |
20808899 |
AMPLIFIER, RDO SPKR (ACDelco #20808899) |
CK1 (06) (D07, HP2, UK6, Y91, Z75) |
2010-2013 |
01 |
| 016 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO F/FLR CNSL SPKR) |
|
2007-2013 |
03 |
| 017 |
25915806 |
SPEAKER, RDO F/FLR CNSL (ACDelco #25915806) |
CK1, 2, 3 (D07, UQA, UQS) |
2010-2013 |
01 |
| 018 |
|
HARNESS, F/FLR CNSL WRG (SEE GROUP 16.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 019 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL BRKT) (10.701) |
|
2007-2013 |
01 |
