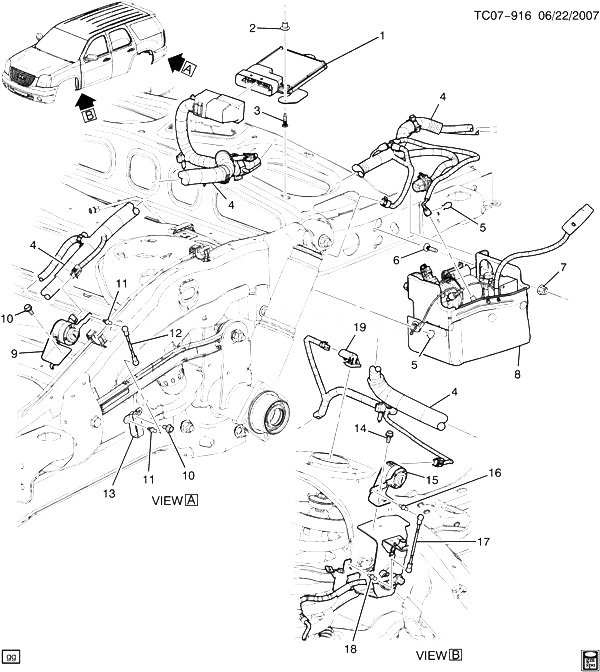

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25971218 |
MODULE, ELEK SUSP CONT (INCLS 2, 3) (LABELED 25971218) |
CK1 (06-36) (Z95) |
2008-2013 |
01 |
| 001 |
25971217 |
MODULE, ELEK SUSP CONT (INCLS 2, 3) |
CK1 (06-36) (Z55) |
2008-2013 |
01 |
| 002 |
|
NUT, ELEK SUSP CONT MDL (PART OF 1) |
|
2009-2013 |
|
| 003 |
|
BOLT, ELEK SUSP CONT MDL (PART OF 1) |
|
2009-2013 |
|
| 004 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) (INCLS 5, 19) |
|
2007-2013 |
|
| 005 |
|
RETAINER, AUTO LVL CONT AIR CMPR TUBE (PART OF 4) |
|
2009-2013 |
|
| 006 |
|
BOLT, AUTO LVL CONT AIR CMPR BR (PART OF 8) |
|
2009-2013 |
|
| 007 |
|
NUT, AUTO LVL CONT AIR CMPR (PART OF 8) |
|
2009-2013 |
|
| 008 |
|
COMPRESSOR, AUTO LVL CONT AIR (INCLS 6, 7) (SEE GROUP 07.000 LEVEL CONTROL COMPRESSOR/AUTOMATIC FOR DETAILED ILLUSTRATED VIEW) (CODE 1806) |
|
2007-2013 |
|
| 009 |
20917434 |
SENSOR, ELEK SUSP RR POSN (FITS ON STAMPED ARM) (INCLS 11-13) |
CK1 (06-36) (Z55, Z95) |
2010-2010 |
01 |
| 009 |
20917435 |
SENSOR, ELEK SUSP RR POSN (FITS ON STAMPED ARM) (INCLS 11-13) |
CK1 (06-36) (Z55, Z95) |
2010-2010 |
01 |
| 009 |
15128648 |
SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 11-13) (FULL ASM) |
CK1 (06-36) (Z55) |
2010-2010 |
01 |
| 009 |
15128648 |
SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 11-13) (FULL ASM) |
CK1 (06-36) (Z95) |
2010-2010 |
01 |
| 009 |
15128649 |
SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 11-13) (FULL ASM) |
CK1 (06-36) (Z55) |
2010-2010 |
01 |
| 009 |
15128649 |
SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 11-13) (FULL ASM) |
CK1 (06-36) (Z95) |
2010-2010 |
01 |
| 010 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) |
|
2007-2013 |
04 |
| 011 |
|
STUD, ELEK SUSP RR POSN SEN LINK BALL (PART OF 9, 13) |
|
2009-2013 |
|
| 012 |
22189722 |
LINK, ELEK SUSP RR POSN SEN (PART OF 9) |
CK1 (06-36) (Z55) |
2007-2013 |
02 |
| 012 |
22189722 |
LINK, ELEK SUSP RR POSN SEN (PART OF 9) |
CK1 (06-36) (Z95) |
2008-2013 |
02 |
| 013 |
22189896 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 9) (INCLS 11) (ELEK SUSP RR POSN) (FITS ON CAST ARM) (NO COMPARABLE PART FOR STAMPED ARM) |
CK1 (06-36) (Z55, Z95) |
2010-2010 |
01 |
| 013 |
22189897 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 9) (INCLS 11) (ELEK SUSP RR POSN) (FITS ON CAST ARM) (NO COMPARABLE PART FOR STAMPED ARM) |
CK1 (06-36) (Z55, Z95) |
2010-2010 |
01 |
| 014 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) |
|
2007-2013 |
02 |
| 015 |
15098628 |
SENSOR, ELEK SUSP FRT POSN (INCLS 16, 17) |
CK1 (06-36) (Z55) |
2007-2013 |
01 |
| 015 |
15098629 |
SENSOR, ELEK SUSP FRT POSN (INCLS 16, 17) |
CK1 (06-36) (Z55) |
2007-2013 |
01 |
| 015 |
15098628 |
SENSOR, ELEK SUSP FRT POSN (INCLS 16, 17) |
CK1 (06-36) (Z95) |
2008-2013 |
01 |
| 015 |
15098629 |
SENSOR, ELEK SUSP FRT POSN (INCLS 16, 17) |
CK1 (06-36) (Z95) |
2008-2013 |
01 |
| 016 |
|
STUD, ELEK SUSP FRT POSN SEN LINK BALL (PART OF 15) |
|
2009-2013 |
|
| 017 |
25379115 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 15) |
CK1 (06-36) (Z55) |
2007-2013 |
02 |
| 017 |
25379115 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 15) |
CK1 (06-36) (Z95) |
2008-2013 |
02 |
| 018 |
11609404 |
STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) |
CK1 (06-36) (Z55) |
2007-2013 |
02 |
| 018 |
11609404 |
STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) |
CK1 (06-36) (Z95) |
2008-2013 |
02 |
| 019 |
19180262 |
CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (PART OF 4) (GRAY) (2-WAY MALE) (90DEG COUPLING) (W/O LEADS) (7.450) |
CK1, 2, 3 |
2007-2010 |
02 |
