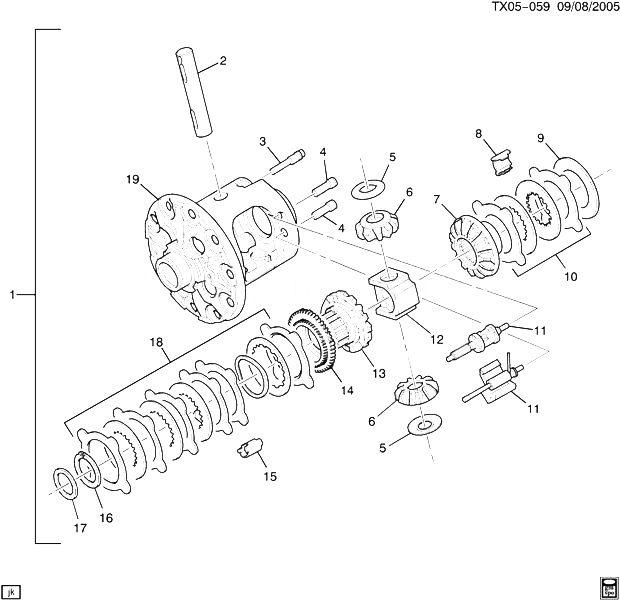

(TX05-059) 2009-2013 CK1(06-36) ОСЬ ЗАДНЯЯ В СБОРЕ 8.625 RING GEAR PART 2 DIFFERENTIAL/LOCKING(G80,EXC (AXN)) CADILLAC - ESCALADE ESV (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25902687 DIFFERENTIAL, (INCLS 2-19) (W/GEARS) CK109 (06-36) (GU6, G80, HP2) (EXC AXN) 2009-2013 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) (W/GEARS) (5.510) CK109 (06-36) (GU6, G80, HP2) (EXC AXN) 2009-2013 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) (W/GEARS) K109 (06-36) (L94, MYC, GU6, G80, JD9) (EXC AXN) 2010-2013 01
002 25824249 SHAFT, DIFF P/GR (124.84 MM) CK1 2009-2013 01
003 25872305 BOLT, DIFF P/GR SHF LK (.3X18X30, 12.7THD) CK1 (EXC AXN) 2007-2013 01
004 25909882 BUSHING, LKG DIFF LOCKOUT (40MM) CK1 (G80) 2009-2013 02
005 12471532 WASHER, DIFF P/GR THR (.820 I.D.X1.69 O.D.) (EATON EDS-89189, .06 LIP) CK1 (G80) 2007-2013 02
006 GEAR, DIFF PINION (*KIT1) 2009-2013
007 GEAR, LKG DIFF SI (SPLINED) (*KIT1) 2009-2013
008 15599623 GUIDE, LKG DIFF CLU DISC (PART OF 10) (WIDTH .93 INCH) CK1 (G80) 2007-2012 04
009 14063581 SHIM, DIFF SI GR (.010 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063582 SHIM, DIFF SI GR (.015 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063583 SHIM, DIFF SI GR (.020 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063584 SHIM, DIFF SI GR (.025 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063585 SHIM, DIFF SI GR (.030 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063586 SHIM, DIFF SI GR (.035 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063587 SHIM, DIFF SI GR (.040 THK) (BELL END) CK1 (G80) 2007-2013 01
009 14063588 SHIM, DIFF SI GR (.045 THK) (BELL END) CK1 (G80) 2007-2013 01
010 26045829 DISC SET, LKG DIFF CLU (INCLS 8) (EATON EDS-29996) CK109 (06-36) (GU6, G80, HP2) (EXC AXN) 2009-2013 01
011 12471530 GOVERNOR KIT, LKG DIFF (EATON EDS-29672) (INCLS BRKT) CK1 2007-2013 01
012 12471393 BLOCK, LKG DIFF THR (PURPLE) (1.322 THK) CK1 (G80) 2007-2013 01
012 12471394 BLOCK, LKG DIFF THR (WHITE) (1.326 THK) CK1 (G80) 2007-2013 01
012 12471395 BLOCK, LKG DIFF THR (BROWN) (1.330 THK) CK1 (G80) 2007-2013 01
012 12471396 BLOCK, LKG DIFF THR (YELLOW) (1.334 THK) CK1 (G80) 2007-2013 01
012 12471397 BLOCK, LKG DIFF THR (ORANGE) (1.338 THK) CK1 (G80) 2007-2013 01
012 12471398 BLOCK, LKG DIFF THR (PINK) (1.342 THK) CK1 (G80) 2007-2013 01
012 12471399 BLOCK, LKG DIFF THR (GREEN) (1.346 THK) CK1 (G80) 2007-2013 01
013 GEAR, LKG DIFF SI (CAM FACED) (*KIT1) 2009-2013
014 12471406 CAM, LKG DIFF (EATON EDS-89096) CK1 (G80) 2007-2013 01
015 12471533 GUIDE, LKG DIFF CLU DISC (PART OF 18) (WIDTH .51 INCH) CK1 (G80) 2007-2013 04
016 09412303 RETAINER, EXT.SNAP RING M46 DIA SHF 2007-2013 AR
017 26012909 WASHER, LKG DIFF CLU DISC THR (.022 THK) CK1 (G80) 2007-2013 01
017 26012910 WASHER, LKG DIFF CLU DISC THR (.027 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012911 WASHER, LKG DIFF CLU DISC THR (.032 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012912 WASHER, LKG DIFF CLU DISC THR (.036 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012913 WASHER, LKG DIFF CLU DISC THR (.040 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012914 WASHER, LKG DIFF CLU DISC THR (.044 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012915 WASHER, LKG DIFF CLU DISC THR (.048 THK) CK1 (G80) (EXC AXN) 2007-2013 01
017 26012916 WASHER, LKG DIFF CLU DISC THR (.052 THK) CK1 (G80) (EXC AXN) 2007-2013 01
018 12471404 DISC SET, LKG DIFF CLU (INCLS 15) (EATON EDS- 29534 INCLS WASHER, DISCS GUIDE) CK1 (EXC AXN) 2009-2013 01
019 CASE, DIFF 2009-2013
K01 19180956 GEAR KIT, DIFF SI PINION (INCLS 6, 7, 13) CK1 (MYC, GU4, GU6, G80) 2009-2013 01
