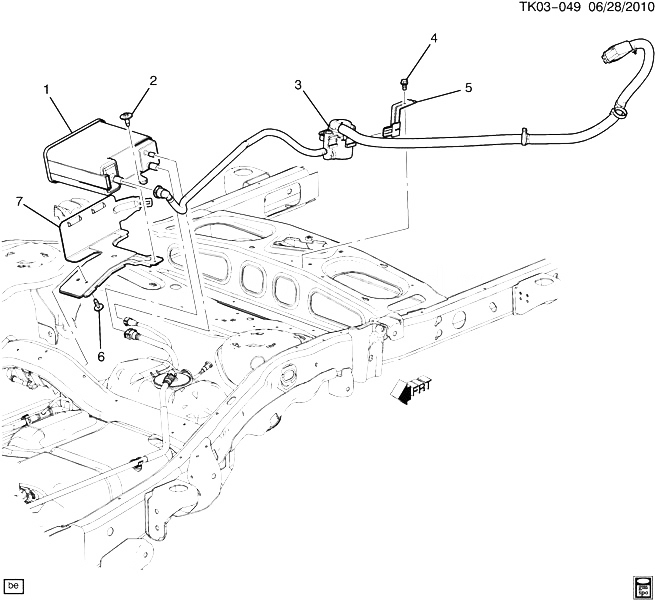

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22963841 |
CANISTER, EVAP EMIS (ACDelco #22963841) |
CK109 (06-36) |
2010-2013 |
01 |
| 002 |
10200334 |
BOLT, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243) |
CK109 (06-36) |
2010-2013 |
01 |
| 003 |
20995472 |
VENT, EVAP EMIS CNSTR (INCLS 5) (ORDER T/W PUSH-PIN 10121502) (ACDelco #20995472) (USE T/W 19257603 PACKARD TO USCAR CONNECTOR JUMPER HARNESS) |
CK1 (06-36) |
2010-2013 |
01 |
| 003 |
20995472 |
VENT, EVAP EMIS CNSTR (INCLS 5) (ORDER T/W PUSH-PIN 10121502) (3.120) (ACDelco #20995472) (USE T/W 19257603 PACKARD TO USCAR CONNECTOR JUMPER HARNESS) |
CK1 (06-36) |
2010-2013 |
01 |
| 004 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (EVAP EMIS CNSTR VENT SOL VLV BRKT) |
|
2010-2013 |
01 |
| 005 |
|
BRACKET, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 3) |
|
2010-2013 |
|
| 006 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082) |
|
2010-2013 |
02 |
| 007 |
15088347 |
BRACKET, EVAP EMIS CNSTR |
CK109 (06-36) |
2010-2013 |
01 |
