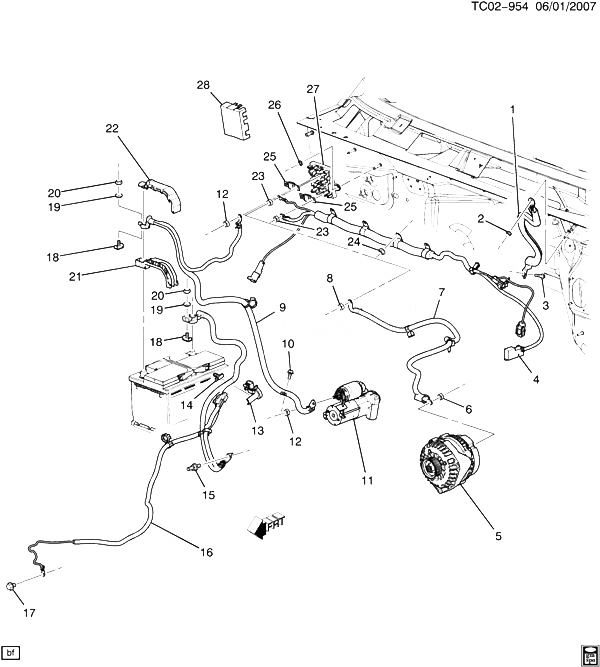

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20776808 |
STRAP, ENG GND (ACDelco #20776808) |
CK1, 2, 3 (ARL, MSL, OSG, KG3, KW1, 9L4) |
2007-2010 |
01 |
| 001 |
20776808 |
STRAP, ENG GND (ACDelco #20776808) |
CK1, 2, 3 (KW1, 5W4) |
2007-2010 |
01 |
| 001 |
22759558 |
STRAP, ENG GND (ACDelco #22759558) |
CK1, 2, 3 (CMD, FWI, KG3, KG7, KW1, 9L4) |
2007-2010 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG GND STRP) |
|
2007-2010 |
01 |
| 003 |
11609619 |
BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG GND STRP) |
|
2007-2010 |
01 |
| 005 |
|
GENERATOR, (SEE GROUP 02.000 GENERATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2010 |
|
| 006 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) |
|
2007-2010 |
01 |
| 007 |
25996788 |
CABLE, GEN BAT JPR (ACDelco #25996788) |
CK1, 2, 3 (PPV, TP2, 5W4, 9L4) |
2010-2010 |
01 |
| 008 |
21021808 |
NUT, GEN BAT (M8X1.25X6, BRASS) (2.343) |
CK1, 2, 3 |
2007-2010 |
01 |
| 009 |
20774386 |
CABLE, STRTR SOL (INCLS 18-22) (ACDelco #20774386) |
CK1, 2, 3 (9L4) (EXC PPV, TP2, 5W4) |
2010-2010 |
01 |
| 010 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2007-2010 |
01 |
| 011 |
|
STARTER, (SEE GROUP 02.000 STARTER MOTOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) (REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) |
|
2007-2010 |
|
| 012 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
CK1, 2, 3 |
2007-2010 |
02 |
| 013 |
10306471 |
SENSOR, BAT CUR (PART OF 16) (FOR VEH WITH 10V SUPPLY FROM BCM) (FOR 2ND DES SEE 13505369) |
CK1 (1ST DES) |
2007-2010 |
01 |
| 013 |
13505369 |
SENSOR, BAT CUR (PART OF 16) (FOR VEH WITH 5V SUPPLY FROM BCM) (FOR 1ST DES SEE 10306471) |
CK1 (2ND DES) |
2007-2010 |
01 |
| 014 |
25925265 |
CLIP, BAT CBL (PART OF 16) (USED FOR HIGH VOLTAGE OUTPUT CABLE) |
CK1 (06) (HP2) |
2008-2010 |
01 |
| 014 |
25925268 |
CLIP, BAT CBL (PART OF 16) (USED FOR LOW VOLTAGE WIRE HARNESS) |
CK1 (06) (HP2) |
2008-2010 |
04 |
| 014 |
19116354 |
CLIP, BAT CBL (PART OF 16) |
CK1 (9L4) |
2010-2010 |
01 |
| 015 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LMG, LY6, L20, L9H, L94, L96) |
2010-2010 |
01 |
| 016 |
25897052 |
CABLE, BAT NEG (INCLS 13, 14, 18-20) (ACDelco #25897052) |
CK1 (9L4) |
2007-2010 |
01 |
| 017 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FWD LP WRG HARN GND) |
|
2007-2010 |
01 |
| 018 |
19116852 |
BOLT KIT, BAT CBL TERM (INCLS 19, 20) (PART OF 9, 16) |
CK1, 2, 3 |
2007-2010 |
01 |
| 019 |
|
WASHER, BAT CBL TERM (PART OF 9, 16, 18) |
|
2007-2010 |
|
| 020 |
|
NUT, BAT CBL TERM (PART OF 9, 16, 18) |
|
2007-2010 |
|
| 023 |
21021808 |
NUT, BAT HDL (PART OF 4) (M8X1.25X6, BRASS) (2.343) |
CK1, 2, 3 |
2007-2010 |
04 |
| 024 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (BAT POS CBL RET) (8.921) |
|
2007-2010 |
04 |
| 025 |
15305191 |
FUSE, 175 AMP MEGA (PART OF 4) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2007-2010 |
02 |
| 026 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (BAT POS CBL RET) (8.921) |
|
2007-2010 |
01 |
| 027 |
19116352 |
HOLDER, WRG HARN FUSE (PART OF 4) (ACDelco #19116352) |
CK1, 2, 3 |
2007-2010 |
01 |
| 028 |
15881616 |
COVER, BAT POS CBL J/BLK (3 WAY MEGAFUSE) |
CK1, 2, 3 (PPV, 5W4, 9L4) |
2007-2010 |
01 |
